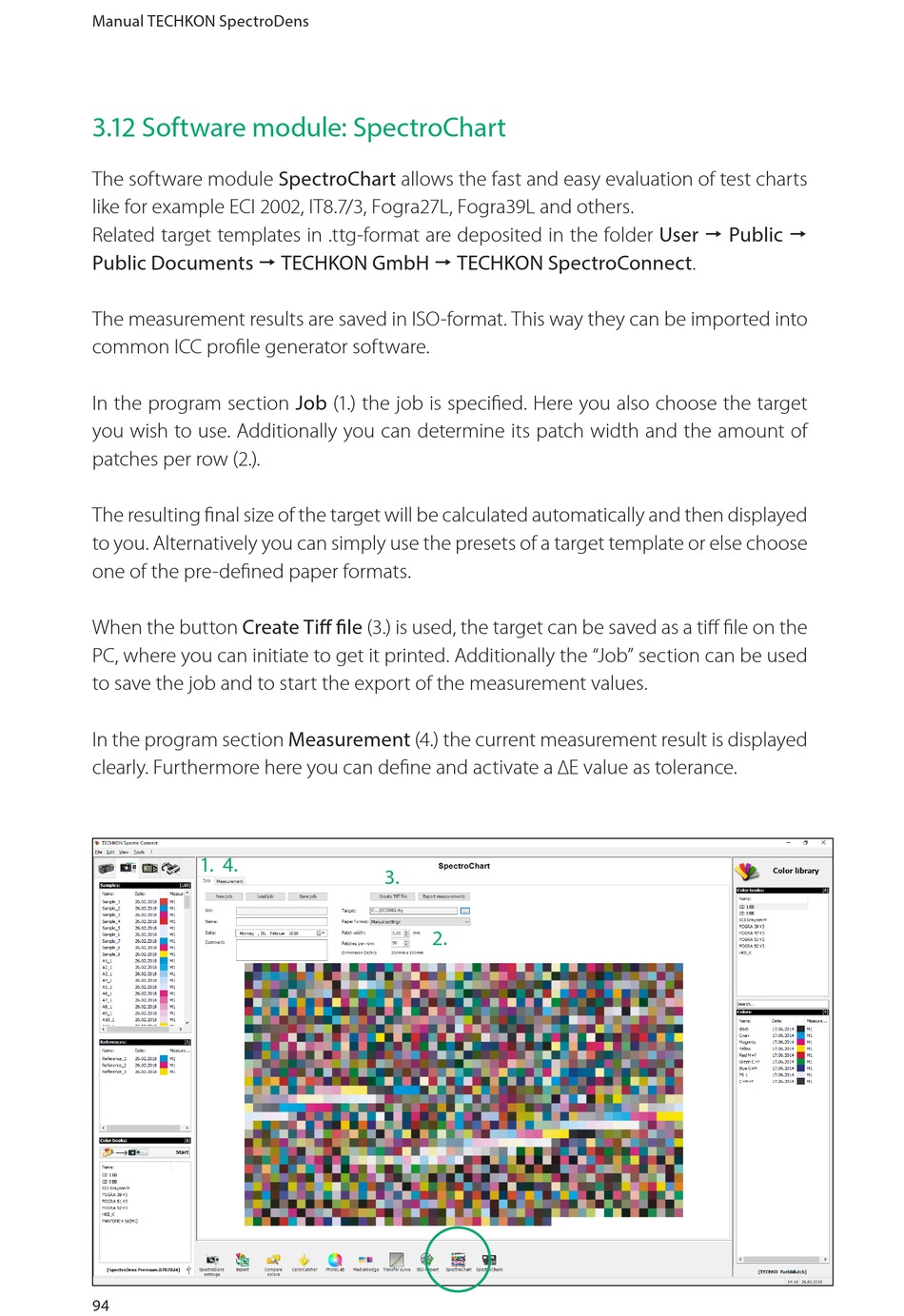

3.12 Software module: SpectroChart

The software module SpectroChart allows the fast and easy evaluation of test charts
like for example ECI 2002, IT8.7/3, Fogra27L, Fogra39L and others.
Related target templates in .ttg-format are deposited in the folder User  Public 
Public Documents  TECHKON GmbH  TECHKON SpectroConnect.
The measurement results are saved in ISO-format. This way they can be imported into
common ICC profile generator software.
In the program section Job (1.) the job is specified. Here you also choose the target
you wish to use. Additionally you can determine its patch width and the amount of
patches per row (2.).
The resulting final size of the target will be calculated automatically and then displayed
to you. Alternatively you can simply use the presets of a target template or else choose
one of the pre-defined paper formats.
When the button Create Tiff file (3.) is used, the target can be saved as a tiff file on the
PC, where you can initiate to get it printed. Additionally the "Job" section can be used
to save the job and to start the export of the measurement values.
In the program section Measurement (4.) the current measurement result is displayed
clearly. Furthermore here you can define and activate a ∆E value as tolerance.
1. 4.
3.
2.
94
