Shimadzu ELB Series Operating Manual

[Menu Selection]
(1) Press the [MODE] key. The currently selected
conditions are displayed in symbols.
(2) The display changes in the order shown in the
table at right each time the [MODE] key is
pressed. Press the [TARE] key when the item
to set is displayed.
(3) "SEt" is displayed and it reverts to the weight
display.
CAUTION! The internal values of the balance
are being revised while "SEt" is
displayed. Do not turn off the
power while "SEt" is displayed.
CAUTION! Menu selection is not possible in
the specific gravity measurement
mode. Display a different unit by
pressing the [UNIT] key to start
menu selection.
[Registering and Deleting Units]
Registration
(1) Press the [TARE] key when the desired unit is displayed. Already registered units are displayed with the
"→" mark.
(2) "SEt" is displayed and then it changes to the weight display in the registered unit.
Deletion
(1) Press the [TARE] key when the unit to delete is displayed. Already registered units are displayed with the
"→" mark.
(2) "SEt" is displayed and then it changes to the weight display.
Delete All
(1) Select "CLEAr" and press the [TARE] key.
(2) "SEt" is displayed and then it changes to the weight display in grams.

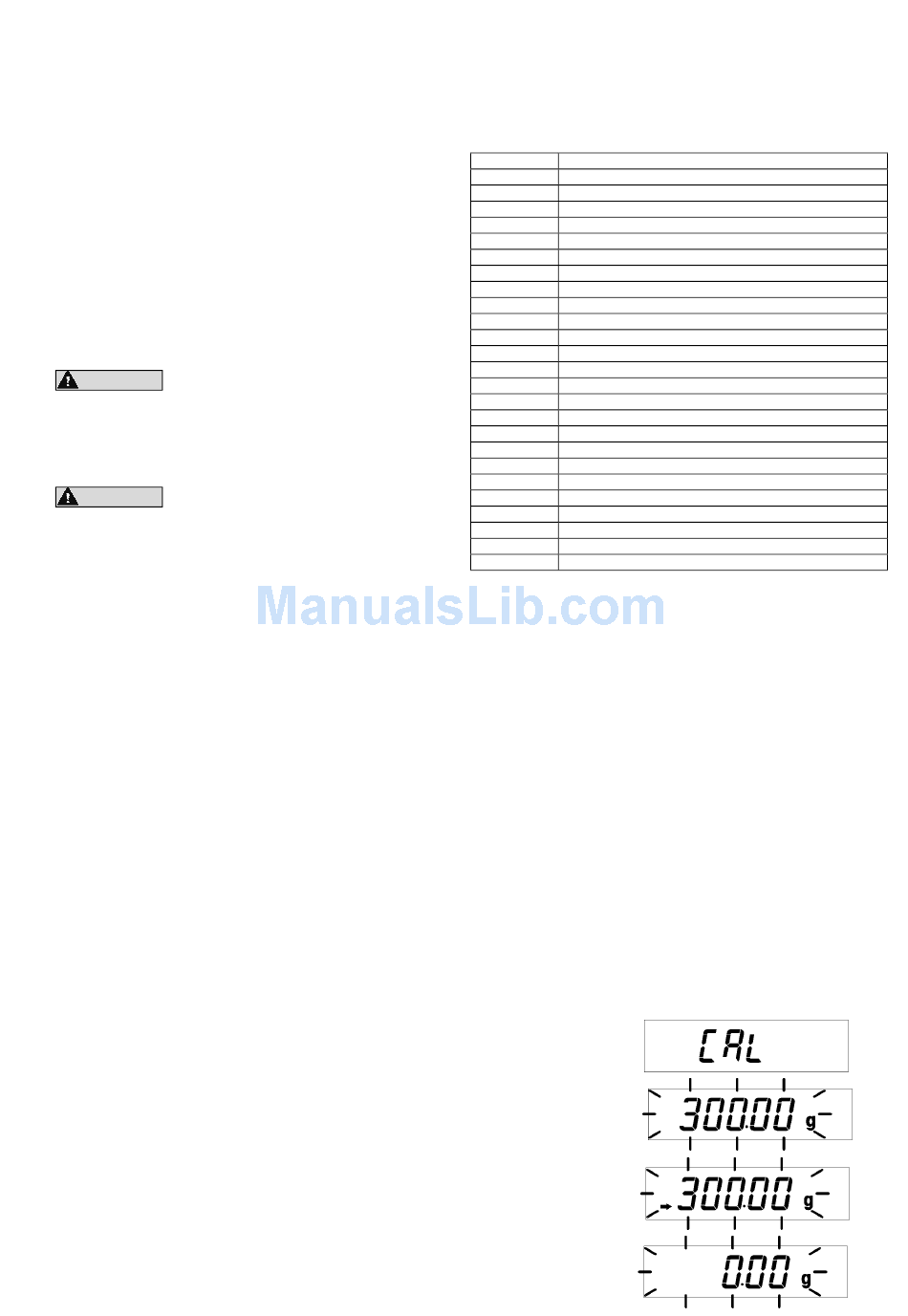

[Sensitivity Calibration]
(1) Select "CAL" (sensitivity (span) calibration) in menu selection with nothing
on the pan.
(2) Press the [TARE] key. The value of the weight to be used for calibration flashes.
(3) Place the calibration weight on the pan.
(4) Press the [TARE] key when the stability mark illuminates after placing the
weight.
(5) Zero flashes on the display.
Operating Guide
ELB Series
Display
Conv PCS
Conv %
CAL
P.C.-on
P.C.-oF
A-1
A-2
P-1
P-2
d-on
d-off
iF
SG
1
* Unit kg
Unit g
Unit ct
2
* Unit oz
2
* Unit ozt
2
* Unit dwt
2
* Unit GN
2
* UnitH tl
2
* UnitS tl
2
* Unitt tl
2
* Unit mo
CLEAr
1
* ELB12K only
2
* Not applicable to Leagal Mesuring Instruments in
using area.
Description
Piece counting
Percentage conversion
Calibration
Auto Power Off function activated
Auto Power Off function disabled
Fast Response Mode
Normal Response Mode
Internal stability detection width: Small
Internal stability detection width: Large
Zero tracking: ON
Zero tracking: OFF
RS-232C communication specification settings
Specific gravity measurement
Kilogram
Gram
Carat
Ounce
Troy ounce
Penny weight
Grain
Hong Kong tael
Singapore tael
Taiwan tale
Momme
Canceling registered units
