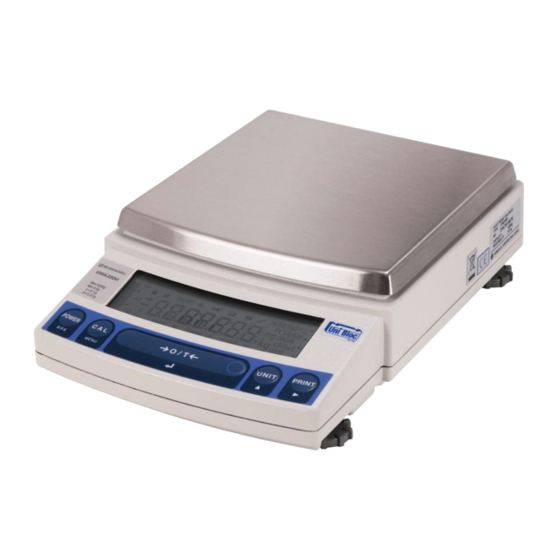

Shimadzu UW220H Instruction Manual

Uw series ux series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Electronic Balance
Instruction Manual
UW series
UX series
READ AND UNDERSTAND THIS MANUAL BEFORE
OPERATION. SAVE THIS MANUAL.
M054-E117D
