Shimadzu UW620HV Instruction Manual

Uw series, ux series
Hide thumbs
Table of Contents

Advertisement

Quick Links

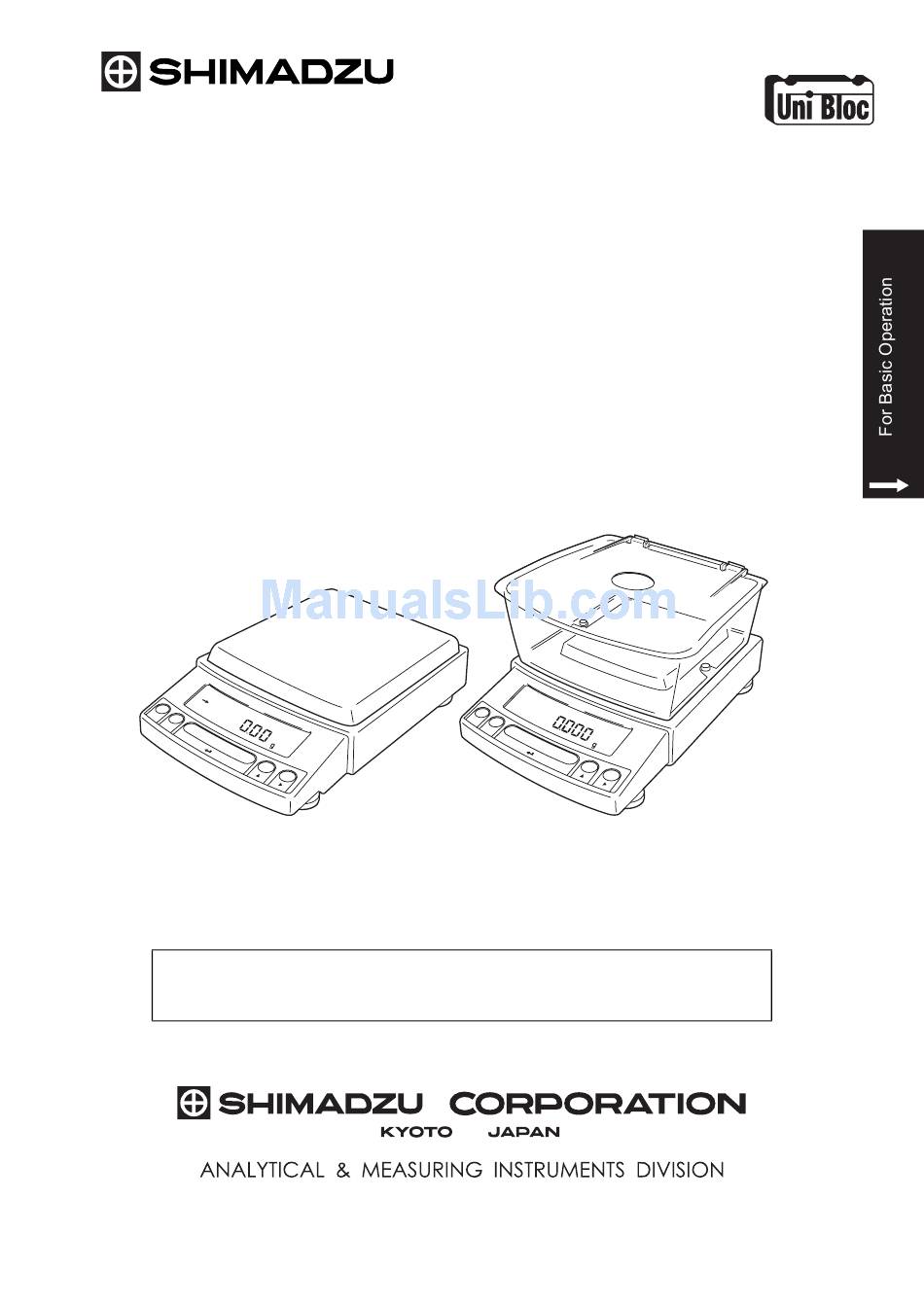

Electronic Balance
Instruction Manual
UW series
UX series
Read the instruction manual thoroughly before you use the product.
Keep this instruction manual for future reference.
321-56829-21E
Oct. 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UW620HV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shimadzu UW620HV

Summary of Contents for Shimadzu UW620HV

  • Page 1 321-56829-21E Oct. 2008 Electronic Balance Instruction Manual UW series UX series Read the instruction manual thoroughly before you use the product. Keep this instruction manual for future reference.
  • Page 3 • Shimadzu does not guarantee that the WindowsDirect communication function will operate without problems on all PCs. Shimadzu will accept no responsibility for any trouble that arises as a result of using this function. You are recommended to back up all important data and pro- grams in advance.

  • Page 4: Notation Conventions

    Notation Conventions Note This instruction manual uses the following notation conventions to indicate Safety Precautions and additional information. Indicates a potentially hazardous situation that may Caution result in injury to personnel or equipment damage. Provides additional information needed to properly Note use the balance.
  • Page 5 You could sustain an electric shock or the product could operate abnormally. Prohibitions If you believe that the balance has failed, contact your Shimadzu representative. Use the balance with the specified power supply and voltage. Using the balance with an incorrect power supply or voltage will lead to fire or trouble with the balance.
  • Page 6 If the balance has to be stored for a long time, store it in the packaging box in which it was delivered. Do not connect anything other than peripheral devices specified by Shimadzu to the balance’s connector. If you do, the balance may stop working normally. Prohibitions In order to avoid trouble, always connect peripheral devices in accordance with the directions in this manual.

  • Page 7: Declaration Of Conformity

    Declaration Of Conformity Shimadzu Corporation declares that the following products: UW Series and UX Series Electronic Balances conform to the following directives. Directives EMC directive 89/336/EEC amended by 92/31/EEC, 93/68/EEC EN55022: 1994 / A1: 1995 / A2: 1997 (Class B)
  • Page 8 - VI -...
  • Page 9 - VII -...
  • Page 10 - VIII -...
  • Page 11 The controls implemented as a result of security related require- ments are intended to result in trusted records. Shimadzu CLASS-Balance Agent Shimadzu provides a means for compliance with 21 CFR Part 11 with Shimadzu CLASS-Balance Agent software, part of a compre- hensive laboratory data management system, Shimadzu CLASS Agent.
  • Page 12 With your co-operation we are aiming to reduce contamination from waste electronic and electrical equipment and preserve natural resource through re-use and recycling. Do not hesitate to ask Shimadzu service representative, if you require further information. WEEE Mark - X -...

  • Page 13: Table Of Contents

    Contents Introduction ......................Name and Function of Components ................................2.1 Components ................... 2.2 Key Panel and Operation 2.3 Balance Display and Function ................Specifications ....................... Installation ......................................4.1 Choosing the Installation Site 4.2 Unpacking and Delivery Inspection ....................................
  • Page 14 Contents Built-in Clock Set-up ..........................................8.1 Date ....................8.2 Date Output Style ........................8.3 Time ................8.4 Setting Display During Stand-by Display Selection ......................................... 9.1 Bar graph display ............ 9.2 Changing the Minimum Display Digit (10d:1d)* Calibration ........................................
  • Page 15 Contents Enhancing Productivity ..............................13.1 Checkweighing and Target Display .......... 13.1.1 Checkweighing (Comparator) Display Type 1 .......... 13.1.2 Checkweighing (Comparator) Display Type 2 13.1.3 Target Mode ....................................13.2 Piece Counting (PCS) ......................13.3 Auto Print ......................13.4 Auto Zero* .......................
  • Page 16 Contents Troubleshooting ......................................... 17.1 General Display ...................... 17.2 Error Display ....................17.3 Troubleshooting ..............17.4 LCD (Liquid Crystal Display) Check Appendices ............................................... A-1. Menu Map ..........A-2. Standard Accessories and Maintenance Parts List ................... A-3. Optional Accessories List ................

  • Page 17: Introduction

    1. Introduction 1. Introduction Shimadzu UW/UX series of toploading balances are a product of our 80 year history of developing and manufacturing weighing instruments. Shimadzu UW/UX series of toploading balances utilize the patented Shimadzu UniBloc sensor, intro- duced in 1989, to achieve high performance, fast response, and durability. Available features include multiple units of measure, piece counting, checkweighing functions, auto print, and GLP/GMP/ISO out- put including date and time data from a built-in clock.

  • Page 18: Name And Function Of Components

    2. Name and Function of Components 2. Name and Function of Components 2.1 Components a. Large pan model Label (Supports the object to be weighed) (Shows model name. "Max", "Min", "e" and "d" are indications required by legal metrology, which do not restrict the weighing range in general use.) Main body Display panel...
  • Page 19 2. Name and Function of Components c. Small pan model (minimum display 0.001g, windbreak standard) Windbreak set (Included with models with (Supports the object to be weighed) minimum display of 0.001g. Prevents possible affect by air flow) Label (Shows model name. "Max", "Min", "e"...

  • Page 20: Key Panel And Operation

    2. Name and Function of Components 2.2 Key Panel and Operation [POWER] key [CAL] key [O/T] key [UNIT] key [PRINT] key Functions of the keys During Weighing Press Once and Release Press and Hold for About 3 Seconds Switches between the operation and standby Exits the application function and returns to [POWER] modes.

  • Page 21: Balance Display And Function

    2. Name and Function of Components 2.3 Balance Display and Function ∗ %NETBPTG PCS lbGN mg mom ctdwt oztl BATT WARM-UP STAND-BY Analog display section Unit display section Display Name Description Indicates that the weighed value is stable. (*1) In menu item selection, indi- Stability mark cates currently selected item.

  • Page 22: Specifications

    3. Specifications 3. Specifications UW Series Model UW220H UW420H UW620H UW2200H UW4200H UW6200H UW420S UW820S UW4200S UW8200S Capacity 220g 420g 620g 2200g 4200g 6200g 420g 820g 4200g 8200g Minimum display 0.001g 0.001g 0.001g 0.01g 0.01g 0.01g 0.01g 0.01g 0.1g 0.1g Calibration range 100 - 220g 100 - 420g...
  • Page 23 3. Specifications UW Series (ECTA) Model UW820SV UW220HV UW420HV UW620HV UW8200SV UW2200HV UW4200HV UW6200HV UX Series (ECTA) Model UX820SV UX220HV UX420HV UX620HV UX8200SV UX2200HV UX4200HV UX6200HV Accuracy class Capacity 820g 220g 420g 620g 8200g 2200g 4200g 6200g Verification scale interval (e) 0.1g...

  • Page 24: Installation

    4. Installation 4. Installation 4.1 Choosing the Installation Site (1) Power supply • Select an installation site that is near a power source to ensure that the attached AC adapter is used properly. If this is not possible, an optional battery pack is available as a special accessory.
  • Page 25 4. Installation • Extreme temperature, temperature changes or humidity • Corrosive or flammable gasses • Dust, wind, electromagnetic waves, or magnetic fields Large capacity balances should be installed on a sturdy floor and table that can support the total load of the balance AND object to be weighed.

  • Page 26: Unpacking And Delivery Inspection

    4. Installation 4.2 Unpacking and Delivery Inspection Unpack and remove all the items from the delivery box. Check if all the listed items are present and nothing has been damaged. Contact your local distributor in case of damaged or missing items. Standard packed item and quantity b.
  • Page 27 4. Installation a. Large pan model Explanatory operation sheet Pan supporter caps In-use protective cover Instruction manual Balance main body AC adapter (The shape of the adapter supplied with the balance may differ from this figure.) b. Small pan model (minimum display 0.01g) Pan supporter caps Explanatory operation sheet In-use protective...
  • Page 28 4. Installation c. Small pan model (minimum display 0.001g) Windbreak Lid Windbreak Main Pan supporter caps Explanatory operation sheet In-use protective cover Instruction manual Balance main body (with rubber caps) AC adapter (The shape of the adapter supplied with the balance may differ from this figure.) Fixing knobs for windbreak Stainless screws...

  • Page 29: Installation

    4. Installation 4.3 Installation (Start at step 3 when installing a UX series balance. Prepare a plus (+) screw driver for a UW series balance.) Place the balance main body upside down. (UW only) Below-weigh hook cap Caution Do not operate step 2 with the balance placed on its side.
  • Page 30 4. Installation This balance has three level screws (adjustable Level indicator feet) at the right front, left front and right rear cor- ners. Turning a level screw clock-wise stretches the leg to raise the balance body there. Turning anti- clockwise withdraws the leg and lowers the bal- Level screw ance body.
  • Page 31 4. Installation Install the pan. With small pan model with mini- mum display of 0.001g, the standard windbreak is also installed here. a. Large pan model Positioners Insert the four pan supporter caps into the holes in the top of the balance. Place the pan gently on pan supporter caps.
  • Page 32 4. Installation (2) Fit windbreak main on top of the balance main body, and fasten it with two fixing knobs. (3) Insert the four pan supporter caps into the holes in the top of the balance. Place the pan on them. Positioners on the pan must fit pan Curved front supporter caps.
  • Page 33 4. Installation If you use in-use protective cover, peel off the paper to expose the adhesive on it, then fit it on the display and key part. Press the adhesive parts gently. Note Using a verified balance as a legal measuring instrument in the EU: Legal regulations require a verified balance be sealed.

  • Page 34: Turning On The Power

    4. Installation 4.4 Turning ON the Power Insert the plug of the AC adapter into the DC IN connector on the rear of the balance. Insert the AC adapter into the power source. The balance self-check is activated and the fol- lowing messages are displayed in the order indi- cated.

  • Page 35: Span Calibration

    4. Installation 4.5 Span Calibration Note Using a verified balance as a legal measuring instrument in the EU: Span calibration must be performed once the balance is installed and before using the balance as a legal measuring instrument in the EU. Span calibration must be performed with the internal calibration weight to main- tain the verification valid.
  • Page 36 4. Installation Note Span calibration should be performed again : when the location of the balance is changed, when the room temperature changes considerably, periodically, according to the quality control plan of the user. UX series [Span Calibration Using External Weights] Verify that the balance is in gram-display and unload the sample from the pan.
  • Page 37 4. Installation Note Span calibration should be performed again : when the location of the balance is changed, when the room temperature changes considerably, periodically, according to the quality control plan of the user.

  • Page 38: Basic Operation

    5. Basic Operation 5. Basic Operation 5.1 Weighing If a weighing vessel (tare) is used, place it on the pan and wait for the stability mark to illumi- nate. Press the [O/T] key to zero the display. (This operation is called “taring”.) Place the object to be weighed on the pan.

  • Page 39: Changing The Unit Display

    5. Basic Operation Note Using a verified balance as a legal measuring instrument in the EU: The balance must be used within the temperature range indicated on the verification label. When PSC (refer to 10.3.2), fully-automatic span calibration, is not acti- vated, operator must carry out span calibration with the built-in weight (refer to 4.5) upon blinking of the Weight Symbol.

  • Page 40: Windowsdirect Function

    6.2 Set Up WindowsDirect Simple settings are made for the balance and the computer. Connection is by RS-232C cable (15.2.1) specified by Shimadzu. If bi-directional communication software is used: WindowsDirect function should be turned off. Set up the opti- mal communication parameters for the software according to “15.3 Communication setting”.

  • Page 41: Cable Connection

    6. WindowsDirect Function 6.2.2 Cable Connection Verify the balance display is “STAND-BY”. Turn off the computer and remove power from the balance. Connect the RS-232C cable to the balance. RS-232C Connector Connect the RS-232C cable to the computer. When using WindowsDirect, use a Null modem cable of one of the below wirings. D-sub9 D-sub25 D-sub9...
  • Page 42 6. WindowsDirect Function Put a check mark at “Support Serialkey device” in the “General” tab. This should be the only check mark on all the tabs of Accessibility Options unless “Administrative options” appears in the “General” tab. Put check marks at both the items of “Administrative options”...

  • Page 43: Start And Checking Operation

    6. WindowsDirect Function 6.2.4 Start and Checking Operation Confirm Windows ® is free from any application. After Windows ® has completely started, con- nect power cord from the AC adapter to the bal- ance, when “oFF” is displayed, press the [POWER] key.

  • Page 44: Troubleshooting The Windowsdirect Communication Function

    Q1 WindowsDirect communication has been set but it is not operating at all. • Check the type of communications cable used for the connection (Shimadzu authorized part or another part available on the general market) and the soundness of the connection.
  • Page 45 6. WindowsDirect Function Q5 When data is input into Excel, the cursor doesn't move to another cell. • If a function for conversion to 2-byte characters is available in Windows, turn the setting for this func- tion off. • Click the [Edit] tab under [Options] in Excel and check [Move selection after Enter] (if cells move in response to keyboard input there is no problem).

  • Page 46: Menu Item Selection

    7. Menu Item Selection 7. Menu Item Selection 7.1 What is the Menu? The UW/UX series balance has many functions that can be selected to meet the requirements of the user. Menu Item selection is used to program these functions. 7.2 Menu Map The menu of the UW/UX balance consists of seven groups and four levels.

  • Page 47: Menu Item Selection Procedure

    7. Menu Item Selection 7.3 Menu Item Selection Procedure This instruction manual identifies each menu item by a number. For example, the menu items of “Sta- bility Detection Band ” of “11. Environment” are through Find the function to be programmed in the Menu Map, referring to the item number in square, To reach the item, operate the keys on the balance.
  • Page 48 7. Menu Item Selection Important Note on Menu Item Selection Even the desired menu item is reached and displayed, it is not yet set unless Stability mark ( is illuminated with it. Do not fail to press [O/T] key to put Stability mark before returning to the mass display.

  • Page 49: Setting Numeric Values

    7. Menu Item Selection 7.4 Setting Numeric Values Some of UW/UX series balance menu items require numeric value setting. For example, external calibration weight input, thresholds for checkweighing, and reference density in specific gravity measurements (see 10.2, 10.3, 13.1, 13.5, 14.1, 14.2, 14.4 for detail of each item.) The values can be set using the balance keys.

  • Page 50: Related Useful Functions

    7. Menu Item Selection 7.5 Related Useful Functions 7.5.1 Last Menu Recall This function is convenient when an application requires frequent changes to a specific menu item. During mass display or menu selection, press and hold the [CAL] key for approximately three sec- onds.

  • Page 51: Menu Lock

    7. Menu Item Selection 7.5.3 Menu Lock The “Menu Lock” function locks the menu item selection to protect the current settings from undesired alterations. Menu Lock can be activated or released only at the “oFF” display immediately after the balance is con- nected to the power.

  • Page 52: Built-In Clock Set-Up

    8. Built-in Clock Set-up 8. Built-in Clock Set-up The built-in clock has to be set up in advance if a calibration record is to be produced or Clock-CAL function is to be used. 8.1 Date Select menu item and set the last two fig- ures of the year, month and day, using the [UNIT] and [PRINT] keys.

  • Page 53: Time

    8. Built-in Clock Set-up 8.3 Time Select menu item and set the time in the 24 hour system using the [UNIT] and [PRINT] keys, then press the [O/T] key. Example: 1:23 in the afternoon, is set as “13:23”. (Example) Note The moment the [O/T] key is pressed seconds are set to 00.

  • Page 54: Display Selection

    9. Display Selection 9. Display Selection 9.1 Bar graph display The relative amount of the load on the pan is displayed in the bar graph. This feature helps to prevent errors due to OL (overload) status. This is called Full Scale mode. This display can not be used with the Checkweighing or Target mode.

  • Page 55: Calibration

    10. Calibration 10. Calibration 10.1 What is calibration? Calibration is required to accurately weigh items with an electronic balance. Calibration should be per- formed: • When the location of the balance is changed, even within the same room. • When the room temperature changes considerably. •...

  • Page 56: Calibration Execution

    10. Calibration 10.2 Calibration Execution Notes • Setting before shipment is as the following: UW series: Span calibration using the built-in weight UX series: Span calibration using external weights The type of calibration can be changed (See 10.3). • Calibration will not be performed when the weight on the pan is not near zero, or the balance is not stable.

  • Page 57: Calibration Check Using The Built-In Weight (Uw Series Only)

    10. Calibration 10.2.2 Calibration Check Using the Built-in Weight (UW Series Only) The shift from the last calibration is displayed using the built-in calibration weight, however, the balance is not adjusted. Verify that the balance is in mass display and that the pan is empty.

  • Page 58: Span Calibration Using External Weights

    10. Calibration 10.2.3 Span Calibration Using External Weights Not applicable to a verified balance as a legal measuring instrument in the EU The balance is adjusted using your external standard calibration weight(s). Verify that the balance is in mass display and that the pan is empty.

  • Page 59: Calibration Check Using External Weights

    10. Calibration 10.2.4 Calibration Check Using External Weights Not applicable to a verified balance as a legal measuring instrument in the EU The shift from the last calibration is displayed using your external standard calibration weight(s), how- ever, the balance is not adjusted. Verify that the balance is in mass display and that the pan is empty.

  • Page 60: Calibration Setting

    10. Calibration 10.3 Calibration Setting 10.3.1 Selecting the Calibration Type Set the calibration type that will be used in Calibration Execution. To set up “Span calibration using the built-in weight”,(UW only) Select menu item To set up “Calibration check using the built-in weight”,(UW only) Select menu item To set up “Span calibration using external weights”, Select menu item...

  • Page 61: Clock-Cal Fully-Automatic Calibration (Uw Series Only)

    10. Calibration 10.3.3 Clock-CAL Fully-automatic Calibration (UW series only) Span calibration is performed automatically using the built-in calibration weight at up to 3 specific, pre- set times during each day. The user selects the times. This function is named Clock-CAL. It is possible to set up to three specific times for Clock-CAL (“tCALt1”, “tCALt2”, and “tCALt3”).

  • Page 62: Pcal: Calibration Of The Built-In Weight (Uw Series Only)

    10. Calibration 10.3.4 PCAL: Calibration of the Built-in Weight (UW series only) Not applicable to a verified balance as a legal measuring instrument in the EU PCAL is used to calibrate the built-in weight to a standard calibration weight that is correctly adjusted, traceable and/or certified.

  • Page 63: Pcal Password Setting (Uw Series Only)

    10. Calibration Notes • “SEt” is displayed during the process. Leave the balance in a stable state until the mass display appears as in step 5. • In PCAL, the value of the “weight to be loaded” cannot be changed. •...

  • Page 64: For Glp/Gmp/Iso Conformance

    10. Calibration 10.4 For GLP/GMP/ISO Conformance These settings should be made by the administrator. 10.4.1 Calibration Report Setting Turns the calibration report function ON/OFF. Use this to generate and output a calibration report as for GLP, GMP, or ISO9000. An electronic printer (optional accessory) is required to print the report. To create calibration report, Select menu item To turn off calibration report function,...

  • Page 65: Environment

    11. Environment 11. Environment 11.1 Overview Settings on the balance can be changed to compensate for the installation environment such as the degree of vibration or air movement or for the purpose of weighing a solid, liquid or powder. 11.2 Stability and Response (Averaging) It is possible to match the stability of the display and the degree of response with the requirements of specific applications or the installation environment.

  • Page 66: Stability Detection And Settings

    11. Environment Note While “Pouring” is selected as the Stability and Response setting, taring the container or zeroing the display cannot be made by pressing the right- most part of [O/T] key. Press the center or the left part of [O/T] key for tar- ing or zeroing.

  • Page 67: Stability Detection Band

    11. Environment It is possible to adjust the operation with the following stability detection settings. (a) Stability Detection Band (11.3.1) (b) Timing of Stability Mark Illumination and Automatic Output (11.3.2) It is not usually required to change these settings as they are optimized at default. However, it is allowed to change according to 11.3.1 11.3.2...

  • Page 68: Timing Of Stability Mark Illumination And Data Output

    11. Environment 11.3.2 Timing of Stability Mark Illumination and Data Output The illumination of stability mark and automatic data output of the functions employing stability detec- tion take place at the same timing. The timing after detection of stability is optimized at the default and it is not necessary to change the setting usually.

  • Page 69: Units

    12. Units 12. Units 12.1 Unit Display Set-up Note Using a verified balance as a legal measuring instrument in the EU: Only g (gramme=gram), ct (carat) weighing units, percentage conversion and piece counting are available for use. Carat is not available for UW820SV and UW8200SV models.

  • Page 70: Percentage (%) Conversion

    12. Units 12.2 Percentage (%) Conversion Set the % unit with menu item if it is not set The % unit is set before shipment. Press the [UNIT] key several times in the mass display until the % unit is displayed. Setting the 100% reference Press the [O/T] key to tare the balance.

  • Page 71: Enhancing Productivity

    13. Enhancing Productivity 13. Enhancing Productivity Functions that are useful mainly in production sites are described in this chapter. Only one of the functions in the menu group 4 (Refer to 7.3) ( ) can be used at a time. When one of the functions in menu group 4 is to be used with a weighing unit other than gram, select the function from the gram-display first.

  • Page 72: Checkweighing (Comparator) Display Type 2

    13. Enhancing Productivity 13.1.1 Checkweighing (Comparator) Display Type 1 This is the best mode to determine pass or failure judgment based on the sample weight. Displays in use Select menu map item Set the upper threshold value, which corresponds to the upper triangle mark, with menu item Set the lower threshold value, which corresponds to the lower triangle mark, with menu item Note...

  • Page 73: Target Mode

    13. Enhancing Productivity Upper threshold < Sample weight Lower threshold ≤ Sample weight ≤ Upper threshold GO Sample weight < Lower threshold Note The decimal point is invisible in each value setting display. Setting the value cannot be made in gram unit. Determine the number based on the minimum display of the balance.

  • Page 74: Piece Counting (Pcs)

    13. Enhancing Productivity 13.2 Piece Counting (PCS) Set up the PCS with menu item if it is not set. (The PCS unit is set before shipment.) Press the [UNIT] key several times in the mass display until the PCS is displayed. Load the container and press the [O/T] key to tare the balance.

  • Page 75: Auto Print

    13. Enhancing Productivity 13.3 Auto Print Auto Print function allows output of the data automatically without pressing the [PRINT] key for each sample. The “Auto-Print symbol is illuminated when the Auto Print function is activated. Six types of Auto Print are selectable. Print on loading: Select menu item Load the sample when the value displayed is within the Zero Range.
  • Page 76 13. Enhancing Productivity Note During continuous output, the Communication symbol may appear to remain lit. If the transfer speed of the data output is slow, the display may become unstable. Increase the transfer speed as much as possible and set the handshake off (menu item Print on “GO”...

  • Page 77: Auto Zero

    13. Enhancing Productivity 13.4 Auto Zero Not applicable to a verified balance as a legal measuring instrument in the EU When the displayed value is within the Zero Range and stability is detected, zeroing occurs automati- cally. The Zero symbol appears in the display when the Auto Zero function is active. Other keys func- tion as expected with the Auto Zero function activated.

  • Page 78: Zero Range

    13. Enhancing Productivity 13.5 Zero Range The “Zero Range” value is used in the following functions as a reference for judging whether the sam- ple is loaded: Auto Print (13.3), Auto Zero(13.4), Peak Hold(14.3), Add-on Mode(14.5), Animal Weigh- ing Mode(14.6), and Formulation Mode(14.7). If the display is within the Zero Range, the balance determines that the balance is not loaded.

  • Page 79: Taring/Printing At Stability

    13. Enhancing Productivity 13.6 Taring/Printing at Stability Not applicable to a verified balance as a legal measuring instrument in the EU Determine if the balance should wait for stability before printing when the [PRINT] key is pressed or zeroing when the [O/T] key is pressed. To print or tare without waiting for stability: (Immediately operating mode) Select menu item To have printing or taring take place after stability is detected: (Waiting for stability detection)

  • Page 80: Pretaring Value

    13. Enhancing Productivity 13.7 Pretaring Value Not applicable to a verified balance as a legal measuring instrument in the EU Notes • If the weight of the tare (container) varies, accurate measurement with Pretaring Value function cannot made. • Pretaring Value function cannot be used with Peak Hold (14.3), Add-on Mode(14.5), Animal Weighing Mode(14.6), Formulation Mode (14.7) or Auto Print function (13.3).

  • Page 81: Application Functions

    14. Application Functions 14. Application Functions Application measurement functions are described in this chapter. Only one of the functions in the menu group 4 (Refer to 7.3) ( ) can be used at a time. When one of the functions in menu group 4 is to be used with a weighing unit other than gram, select the function from the gram-display first.
  • Page 82 14. Application Functions Hook the hanging pan, and then immerse the hanging pan in the tank filled with the liquid of known specific gravity (or density). From mass display, press the [UNIT] key sev- eral times until d (inverse triangle and “d”) is displayed.

  • Page 83: Liquid Density Measurement

    14. Application Functions 14.2 Liquid Density Measurement Liquid density measurement refers to the measurement of the weight of a reference solid of a known volume in air and in the sample liquid. Density of the liquid is calculated from these two values. The display unit for liquid density is “d”.
  • Page 84 14. Application Functions After the stability mark illuminates, press the [CAL] key. “dSP oL” may be displayed but this does not indi- cate a malfunction. Load the reference weight on the hanging pan and immerse it in the sample liquid. The density of the sample liquid is displayed.

  • Page 85: Peak Hold

    14. Application Functions 14.3 Peak Hold Not applicable to a verified balance as a legal measuring instrument in the EU Detects the peak value of a fluctuating weight. “Peak value” is the highest or lowest value displayed in the duration after it has changed beyond five times the Zero Range until the first stability detection after that.
  • Page 86 14. Application Functions Notes • Press the [POWER] key in the peak detection standby state to initiate the power standby state. • Press the [POWER] key during detection of the peak to return to the peak detection standby state. • Peak Hold setting can be cleared without menu operation, by pressing the [POWER] key for about three seconds.

  • Page 87: Interval Timer

    14. Application Functions 14.4 Interval Timer Not applicable to a verified balance as a legal measuring instrument in the EU Automatically outputs the displayed value at preset intervals. The “T” symbol (“T” of the Tare symbol) is illuminated when the Interval Timer is activated. The optional AKB-301 Application Keyboard is convenient when the interval is changed frequently.

  • Page 88: Add-On Mode

    14. Application Functions 14.5 Add-on Mode This function is convenient for weighing a large number of sample components as they are added on the balance. Every time a component is added and stability is detected, the mass of it is displayed and output through RS-232C or DATA I/O interface.
  • Page 89 14. Application Functions Notes • In Add-on Mode, when stability is detected and the displayed value is within Zero Range, zeroing occurs automatically to maintain the zero display. • When the [POWER] key is pressed in the Add-on standby state, the power standby state is initiated.

  • Page 90: Animal Weighing

    14. Application Functions 14.6 Animal Weighing Not applicable to a verified balance as a legal measuring instrument in the EU Designed for weighing live animals. Select menu item to activate Animal Weighing mode. Also, optimize the operational condition (See the following), “Stability Detection Band (11.3.1)” and “Timing of Stability Mark Illumination and Data Output (11.3.2)”...
  • Page 91 14. Application Functions (Operational condition setting check display) (Display) When Cond 3 is selected When Cond 2 is selected When Cond 1 is selected (Operation) The Animal symbol is illuminated when this mode is active. Also a triangular symbol to indicate the cur- rently set operational condition is illuminated in the right end of the display (See the above).
  • Page 92 14. Application Functions Notes • On the premise of weighing animated objects, the stability detection band is automatically extended in the Animal Weighing mode. Repro- ducibility of the measurement data is slightly less than with other modes. If a larger stability detection band is selected with the menu (See 11.3.1), stability detection is more readily made and the output of measurement result usually becomes faster.

  • Page 93: Formulation Mode

    14. Application Functions 14.7 Formulation Mode This function is convenient for weighing in the components of a formulation. The mass of each compo- nent is displayed and stored Every time a component is added and [PRINT] key is pressed, the mass of that component is output through RS-232C or DATA I/O interface and the display will be automati- cally zeroed.
  • Page 94 14. Application Functions Notes • Set the Stability and Response to Pouring mode (menu item , See 11.2) if faster response is required. • When the [POWER] key is pressed in the Formulation standby state, the power standby state is initiated. •...

  • Page 95: Connecting Peripheral Instruments

    This chapter describes how to connect and communicate with peripheral instruments. The details of the balance's communication settings are described in 15.3. 15.1 Electronic Printer Shimadzu Electronic Printer EP-80, EP-60A can be connected. For the balance, select the default communica- tion settings..

  • Page 96: Personal Computer - Rs-232C

    15. Connecting Peripheral Instruments 15.2 Personal Computer - RS-232C - 15.2.1 Connecting the Cable Notes • The cable must have the correct connections as shown in the diagram below. • Cables with the connections shown below and the special accessory RS-232 cable are not guaranteed to operate properly for all types of computers and devices.

  • Page 97: Data Format

    15. Connecting Peripheral Instruments 15.2.2 Data Format The detailed information on the standard format for Shimadzu electronic balances (Menu item , “EB type”. Refer to 15.3.3) is given here. (1) Basic format An example of data format of a negative value (-186.65g) with delimiter of C/R is shown.
  • Page 98 15. Connecting Peripheral Instruments (iv) When the delimiter “C/R+L/F” is selected (Menu item No. . Refer to 15.3.7.) The delimiter information requires one more character. Therefore one more byte is added after Position No.12 in the above example. Consequently, the data becomes 1 byte longer. (3) Data format in case of “oL”...

  • Page 99: Using Command Codes

    15. Connecting Peripheral Instruments 15.2.3 Using Command Codes Note If communication conditions are incorrectly set, a communication error message “ComErr” is displayed. (1) Commands that end with a number, character, or symbol other than [=]: Transmit to the balance with a delimiter for each command code. Example 1: PRINT<CR>...
  • Page 100 15. Connecting Peripheral Instruments Notes • If there is 0 in the four-digit number, the setting is complete at that point and menu selection is ended. • The result of this command varies depending on the type of the balance. Example 6: #=2.56 <CR>...
  • Page 101 15. Connecting Peripheral Instruments (ii) Commands related to operation keys POWER Equivalent to the [POWER] key. Equivalent to the [POWER] key. MENU Equivalent to the [CAL] key. TARE Equivalent to the [O/T] key. Equivalent to the [O/T] key. UNIT Equivalent to the [UNIT] key. PRINT Equivalent to the [PRINT] key.
  • Page 102 15. Connecting Peripheral Instruments (v) Readout commands of set value TARGET Readout of target set value. LIMIT Readout of limit set value. G.LO Readout of lower limit set value in Checkweighing Display 1. G.LO Readout of upper limit set value in Checkweighing Display 1. L.LO Readout of lower limit set value in Checkweighing Display 2.
  • Page 103 15. Connecting Peripheral Instruments (vii) Commands of special functions Enters Span Calibration mode. Enters Span Calibration mode. LOCK Sets menu lock. RELEASE Releases menu lock. TIME Readout of date and time. Adjusts ± 30 seconds. ADJCLK RSTMN Menu reset. MENU= Sets arbitrary menu.

  • Page 104: Multi-Connection Mode

    15. Connecting Peripheral Instruments 15.2.4 Multi-Connection Mode A maximum of 26 UW/UX series balances can be connected to one personal computer at the same time. This is called “Multi-Connection mode.” To use the balance in this mode, prepare RS-232C cables in the number of balances connected, and the optional IFB-102A RS-232C Interface. Connecting Method Example for connecting 10 units of UW/UX series balances to one personal computer is shown in the diagram below.
  • Page 105 15. Connecting Peripheral Instruments On this process, the name smaller than the sent command by one, i.e. “[i] <delimiter>”, is returned. This procedure completes the setting to the Multi-Connection mode. BALANCE (No) Command (PC) RETURN DATA (PC) [a] PRINT [a] PRINT 0.0g [b] PRINT [b] PRINT...
  • Page 106 15. Connecting Peripheral Instruments Restricted Items in the Multi-Connection Mode • Multi-Connection mode is not designed for each balance to independently send the data. This mode is for sampling the data by control of multiple balances with one PC. This is not the func- tion to support multiple balances for sending the data separately.

  • Page 107: Communication Setting

    15. Connecting Peripheral Instruments 15.3 Communication Setting 15.3.1 Overview This menu is used to set the specifications for communication between the balance and a personal computer or electronic printer. Notes • This menu affects both the RS-232C and DATA I/O at the same time. For the instrument to be connected to the DATA I/O connector such as an electronic printer, select the communication setting of the balance to the default settings, which are menu items...

  • Page 108: Format

    The standard format for the Shimadzu electronic balance: Select menu item The old output format for the Shimadzu electronic balance: Select menu item The old output format is employed in the following models. EB-500, 5000, 280, 2800, AEL-1600, EB-50K (except -15)

  • Page 109: Delimiter

    15. Connecting Peripheral Instruments 15.3.7 Delimiter The “delimiter” is used to separate individual pieces of data or commands. Set the delimiter as follows: Set to CR(0DH): Select menu item Set to LF(0AH): Select menu item Set to CR+LF(0D0AH): Select menu item WindowsDirect setting (down) : equivalent to pressing the Enter key of the computer after typing the value: Select menu item...

  • Page 110: Maintenance And Transportation

    16. Maintenance and Transportation 16. Maintenance and Transportation 16.1 Maintenance Use a soft damp cloth containing a neutral detergent to clean the balance. Avoid using organic solvents, chemicals, or dusting sprays as they may damage the coatings of the balance or the display panel. Attach the protective in-use cover (standard accessory) when the balance is used in an environment where it is susceptible to being soiled.

  • Page 111: Troubleshooting

    Date and time are being output. Operation was aborted. Application Measurement was released. Calibration check detects too large error. (Contact your Shimadzu representative.) Calibration check detects too large error. (Contact your Shimadzu representative.) Menu lock is applied. Menu lock is released.

  • Page 112: Error Display

    Attempted to set improper numeric Review the numeric value and decimal value. places. Menu item selection was attempted Release menu lock. (Refer to 7.5.3) when menu is locked. Supply voltage is abnormal. Check the supply voltage. ∗ Contact your Shimadzu representative.

  • Page 113: Troubleshooting

    To have the display stop and proceeds to the mass display automatically, select the menu item (Refer to chapter 7 for menu item selection.) If the display is not the same as the figure in 2.3, contact your Shimadzu representative.

  • Page 114: Appendices

    Appendices Appendices A-1. Menu Map • Pressing [CAL] key moves to the next menu in the same hierarchy. ( in menu map) • Pressing [O/T] key moves to the menu of one hierarchy down. ( in menu map) When no menu exists in the menu of one hierarchy down, it is fixed. •...
  • Page 115 Appendices Menu Group 2 ([CAL] key four times from mass-display) Analog display blinking blinking Full Scale mode # blinking Taget mode Target value Limit value blinking Checkweighing Display 1 Upper threshold Lower threshold blinking Checkweighing Display 2 Upper threshold Lower threshold blinking No analog display ([CAL] key five times from mass-display)
  • Page 116 Appendices Menu Group 4 ([CAL] key six times from gram-display) blinking mark blinking Auto Zero mark blinking Auto Print Loading Loading and unloading 43 Loading and zero Loading, unloading, and zero Continuous Stability with GO blinking Zero Range blinking Peak Holding On blinking Interval Timer Time interval...
  • Page 117 Appendices ([CAL] key eight times from mass-display) Menu Group 6 blinking blinking Date setting Date setting Date output style blinking Time setting blinking Display during standby setting Time Date No display # blinking Report and control setting CAL report output Off # Balance ID PCAL Password...
  • Page 118 Appendices ([CAL] key nine times from gram-display) Menu Group 7 mark blinking blinking Handshaking Not provided Software Hardware Timer # blinking Data Format EB type # Old EB type PR type IPS type blinking Baud Rate (Bits/sec) 300 bps 600 bps 1200 bps # 2400 bps 4800 bps...

  • Page 119: A-2. Standard Accessories And Maintenance Parts List

    Appendices A-2. Standard Accessories and Maintenance Parts List Item Part number Description Pan (large pan) 321-51555 Pan (small pan) 321-51556 Pan supporter cap (for large pan) 321-51552-02 Pan supporter cap (for small pan) 321-51552-01 In-use protective cover 321-62395 For display and key part In-use protective cover (5 pieces) 321-62395-10 For display and key part...

  • Page 120: A-3. Optional Accessories List

    Appendices A-3. Optional Accessories List Item Part number Description EP-80 Electronic Printer 321-62675-01 Impact dot print, can be used with WindowsDirect (w/o AC adapter) RS-232C Cable 25P-9P (1.5m) 321-60117-01 For PC/AT, DOS/V serial port IFB-102A RS-232C Interface 321-41167-10 Necessary for multi-connection IFB-102A-UNC RS-232C Interface 321-41167-20 Inch-size screws type, Necessary for multi-con-...

  • Page 121: A-4. Specifications Of Connectors

    Appendices A-4. Specifications of Connectors RS-232C Connector KEY Connector (When used for checkweighing output) Name Function Name Function Remarks Frame ground Data output Ground of checkweighing Data input Internal connection with CTS OPERA- Output during TION Internal connection with RTS weighing Handshake (receiving) STABIL-...

  • Page 122: A-5. Table Of Unit Conversion Constants

    Appendices A-5. Table of Unit Conversion Constants Displayed during weighing Displayed during Unit Display Set-up (See 12.1) Display Minimum display in the Illuminated Conversion unit (models Menu item Center section triangular symbols Unit Unit coefficient with minimum (segmented in the right end raw number display display of...

  • Page 123: A-6. Performance Checks

    Appendices A-6. Performance Checks Not applicable to a verified balance as a legal measuring instrument in the EU Notes • Performance checks should be conducted in a room where there are no sudden temperature changes. Refer to the installation guidelines for the environmental factors that assure optimal performance.

  • Page 124: A-7. Below-Weigh Hook Dimensions

    Appendices Cornerload Performance Allow the balance to warm up sufficiently by turning ON the power and leaving it at the gram- display at least two hours before starting the per- formance checks. Use a weight that is approximately 1/4 of the balance capacity and place it sequentially at five different positions on the pan in the order shown.

  • Page 125: A-8. Index

    Appendices A-8. Index ........8, 18, 103 ..........92 AC adapter Data format ........46, 47, 48 ..........36, 37, 86 Administrator Date ............8 ........33, 93 Air flow Decimal point ........6 ..........34 Ambient temperature Default setting ........
  • Page 126 Appendices ............8 ........53, 58 Installation Piece counting ........71, 85, 86 ..........49 Interval timer Pouring mode ......103 ......... 8, 18 In-use protective cover Power source .............48 ..........64, 86 ISO9000 Pretare ..... 63 Printing ( Also See "Output") ...............4 Readability ( See Minimum display) ........
  • Page 127 Appendices ..........22, 23 Weighing ........24, 93 WindowsDirect Zero range ..........62 ..........52 Zero tracking...
  • Page 129 UW/UX Series 321-56829-21E Oct. 2008 [Explanatory Operation Sheet] Key Switch Basic Function How to switch off PSC (From mass display) Press [CAL] repeatedly till Weight symbol is blinking → Press [O/T] (“- iEtAtP” is displayed with “i” blinking) → Press [CAL] repeatedly until “A” blinks →...
  • Page 130 Menu Map 321-56829-21E Oct. 2008 Refer to main manual 7.3 for menu item selection. Important Note on Menu Item Selection! • Pressing [CAL] key moves to the next menu in the same hierarchy. ( in menu map) Even the desired menu item is reached and displayed, it is not yet set •...

This manual is also suitable for:

Uw6200hvUw820svUw220hvUw420hvUw2200hvUx220h ... Show all

Table of Contents
