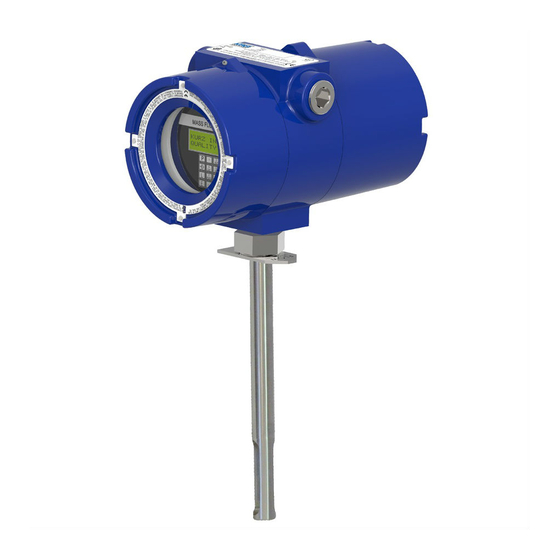

Start Up Guide
Models 454FTB, 504FTB, and 534FTB.
August 2010
For MFT B-Series Firmware 2.x
360208-F 454FTB, 504FTB, 534FTB
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 454FTB and is the answer not in the manual?

Questions and answers

Related Manuals for Kurz 454FTB

Summary of Contents for Kurz 454FTB

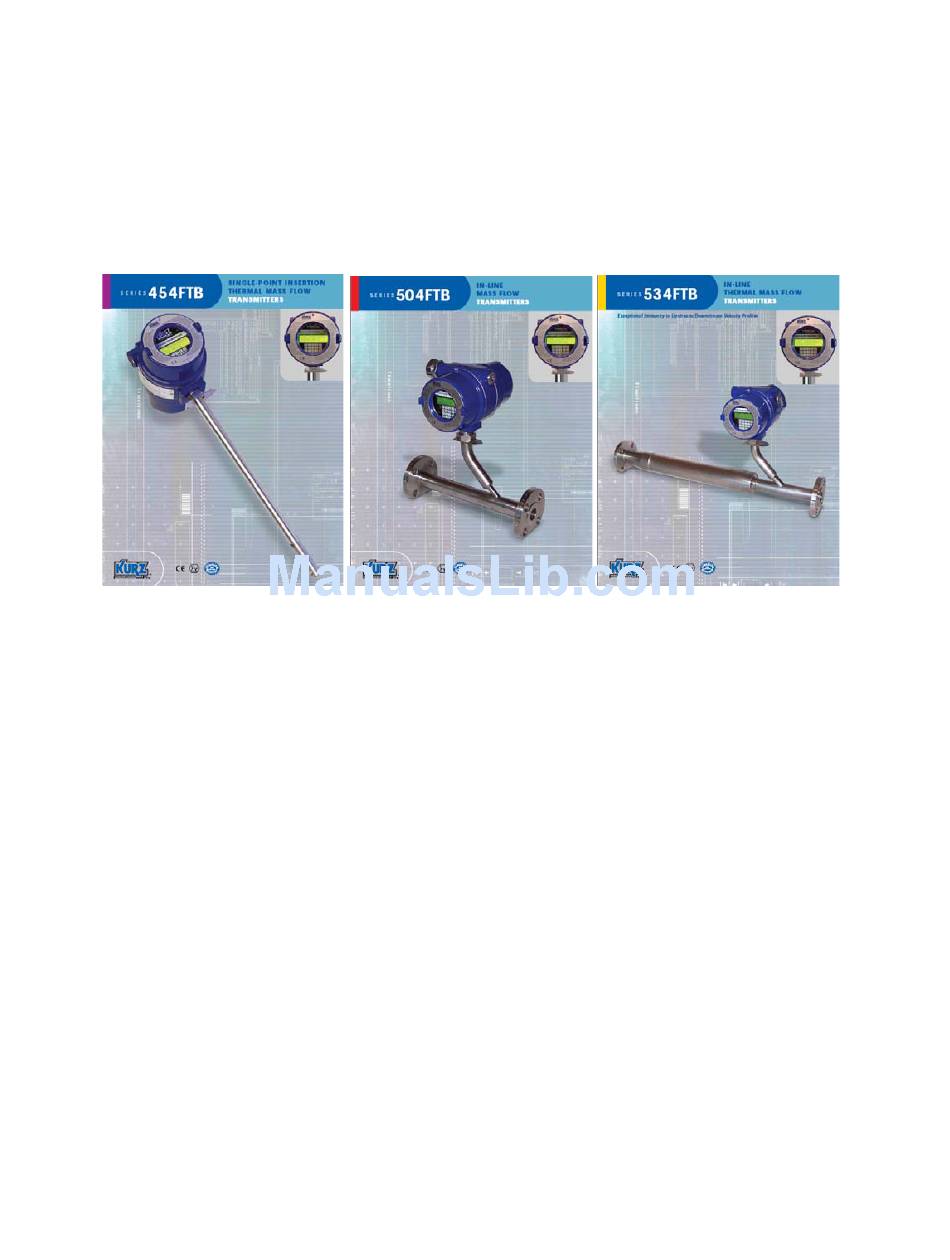

  • Page 1 Kurz Instruments, Inc. 831-646-5911 2411 Garden Road www.kurzinstruments.com Monterey, CA 93940 Start Up Guide Models 454FTB, 504FTB, and 534FTB. August 2010 For MFT B-Series Firmware 2.x 360208-F 454FTB, 504FTB, 534FTB...

  • Page 2: Unpacking/Expected Content

    You will ultimately need to refer to the product manual, which is found on the attached CD. Given the Model number of your product, you can find the manual you require. + Kurz Model # = Unpacking/Expected Content Your flow meter has been shipped to you with the following items. Please make sure you have them and contact us if this is incomplete.
  • Page 3 Check for process fluid leaks. In-Line Meters have similar requirements for undisrupted straight runs except for the 534FTB line. Check for process fluid leaks. 360208-F 454FTB, 504FTB, 534FTB...
  • Page 4 Less than two line size changes size changes ε < 2% CF(v) ? A ? (ft or m L ? (ft, m), d ? (in) π/4 CF(v)= Vavg/Vs A = D SBCF= A/(A+12dL) 0.5 < CF(v) < 1.0 360208-F 454FTB, 504FTB, 534FTB...
  • Page 5 Sometimes the correction factors can be entered based on an ideal duct profile model or a finite element analysis (FEA) or computation fluid dynamics (CFD) program. For more information on all the above, please refer to the full product manual provided on CD or at our website www.kurz-instruments.com. Also see “Flow Measurements 2 ed.”...
  • Page 6 Monterey, CA 93940 ε < 2% Kurz 5xx (504 etc.) X = 40D >X >5 D X = 20D Kurz 534 X = 15D Less than two line Less than two line size changes size changes 360208-F 454FTB, 504FTB, 534FTB...
  • Page 7 In many applications, field calibration data can be used to reduce the upstream and downstream requirements. b. Kurz Model 534 have a built in flow conditioner and all the straight run it needs so there is no upstream or downstream straight run requirements to achieve the rated accuracy.
  • Page 8 Kurz Instruments, Inc. 831-646-5911 2411 Garden Road www.kurzinstruments.com Monterey, CA 93940 360208-F 454FTB, 504FTB, 534FTB...
  • Page 9 Kurz Instruments, Inc. 831-646-5911 2411 Garden Road www.kurzinstruments.com Monterey, CA 93940 360208-F 454FTB, 504FTB, 534FTB...

  • Page 10: Basic Setup

    155 [ Area, CF(v) ] ° ° data Customer I/O Panel ° ° • ° ° • 4-20 mA, velocity Digital I/O • • 24 VDC 4-20 mA, AO = FLOW 504/534 [F data REMOTE DISPLAY SETUP 360208-F 454FTB, 504FTB, 534FTB...

  • Page 11: Wiring, Sensor, Power And Signals

    I/O wiring The image below is for the 155Jr. This is used on remote display versions of the product. Analog Outputs RS-232 Sensor Cal/Operate Input Switches Power 155Jr I/O board photo (155A/B,155C-2/E-2 are not shown). 360208-F 454FTB, 504FTB, 534FTB...

  • Page 12: Analog Output

    AO interface. 2. You can self power the 4-20 mA circuit from the flow meter where Kurz provides the 24 VDC excitation voltage. The output is not isolated in this case. Here your 4-20 mA input will need a differential current receiver or other method to accept the current signal which is ground referenced at the flow transmitter.

  • Page 13: Display Orientation

    (non- shifted) p, d, l, h keys and the ENTER key functioning as the E key on the meter keypad. The Table below defines the functions of the keys 360208-F 454FTB, 504FTB, 534FTB...

  • Page 14: Meter Programming

    A Quick Look up Card for the B-Series 2.0 is provided with each meter. The Quick Lookup Card is a handy navigational aid for the B-Series 2.0 menu system. Additional cards are available upon request from Kurz Instruments. Or use this link...
  • Page 15 When the desired character is displayed, press the E key to accept the character and advance the cursor to the right. Use the D key to clear one character to the left (backspace) or the C key to clear the entire text entry and restart. 360208-F 454FTB, 504FTB, 534FTB...
  • Page 16 FLOW AREA. The first screen prompts for the DUCT PROFILE. Use the ^ or v key to scroll between ROUND and RECTANGLE and press E to select the profile of the duct (for odd shaped duct profiles, press P to skip this entry and proceed to the FLOW AREA screen). 360208-F 454FTB, 504FTB, 534FTB...
  • Page 17 FLOW AREA is displayed). The user can accept the FLOW AREA displayed, by pressing E or a different value can be entered using the numeric keys and pressing E to accept the value entered. FLOW AREA >10.3779000 SQFT 360208-F 454FTB, 504FTB, 534FTB...
  • Page 18 Use the numeric keys to enter the equivalent flow value at 20mA and press E to accept the value. If the meter is configured with two analog output channels, the meter will repeat the analog output setup prompts for AO Channel #2. 360208-F 454FTB, 504FTB, 534FTB...
  • Page 19 VEL 0.00000 SFPM Tag Name displays on line 1 TAG NAT. GAS TAG+FLOW FLOW 0.0000 SCFM Flow displays on line 2 FLOW 0.0000 SCFM Flow displays on line 1 FLOW+TEMP TEMP 82.003 DEGF Temperature displays on line 2 360208-F 454FTB, 504FTB, 534FTB...
  • Page 20 This value must be at least 2 seconds, but can be up to 8 seconds. Use the numeric keys to enter the scroll interval in seconds and press E to accept the entry. 360208-F 454FTB, 504FTB, 534FTB...

  • Page 21: Meter Programming With The Usb Port

    The Quick Setup can also be performed using a PC/laptop running a terminal emulator program, like TeraTerm. The Kurz USB driver must be installed on the PC for this to work; the USB software is on the same disk as the full product manual.
  • Page 22 USB, Modbus serial or Modbus TCP/IP. The program can: • setup or change a meter’s configuration using a meter setup wizard (KzComm v2.0 and above connected to a flow meter with v2.0 and above firmware) • extract or install a meter’s configuration file 360208-F 454FTB, 504FTB, 534FTB...

  • Page 23: Field Calibration

    See the manual for more information on Field Calibration. The 2.xx version of firmware has an initial correction factor of 0.85 for insertion meters to account for the average duct velocity profile. Earlier Kurz product had this defaulted to 1.0...
  • Page 24 USB driver that will be installed on the PC depends on the serial connection used between the PC and the flow meter. If the PC will connect to the flow meter at the USB mini-b connector on the meter’s SC board (as shown in 360208-F 454FTB, 504FTB, 534FTB...
  • Page 25 831-646-5911 2411 Garden Road www.kurzinstruments.com Monterey, CA 93940 the Figure to the left), the Kurz USB Driver will need to be installed per the USB Driver Installation section. If the PC will connect to the flow meter at the RS-485 terminal connections in the flow meter (used for Modbus communications with the meter), then a USB driver for the RS- 485 interface device will need to be installed.
