C-NaviGator III Mounting Reference Guide

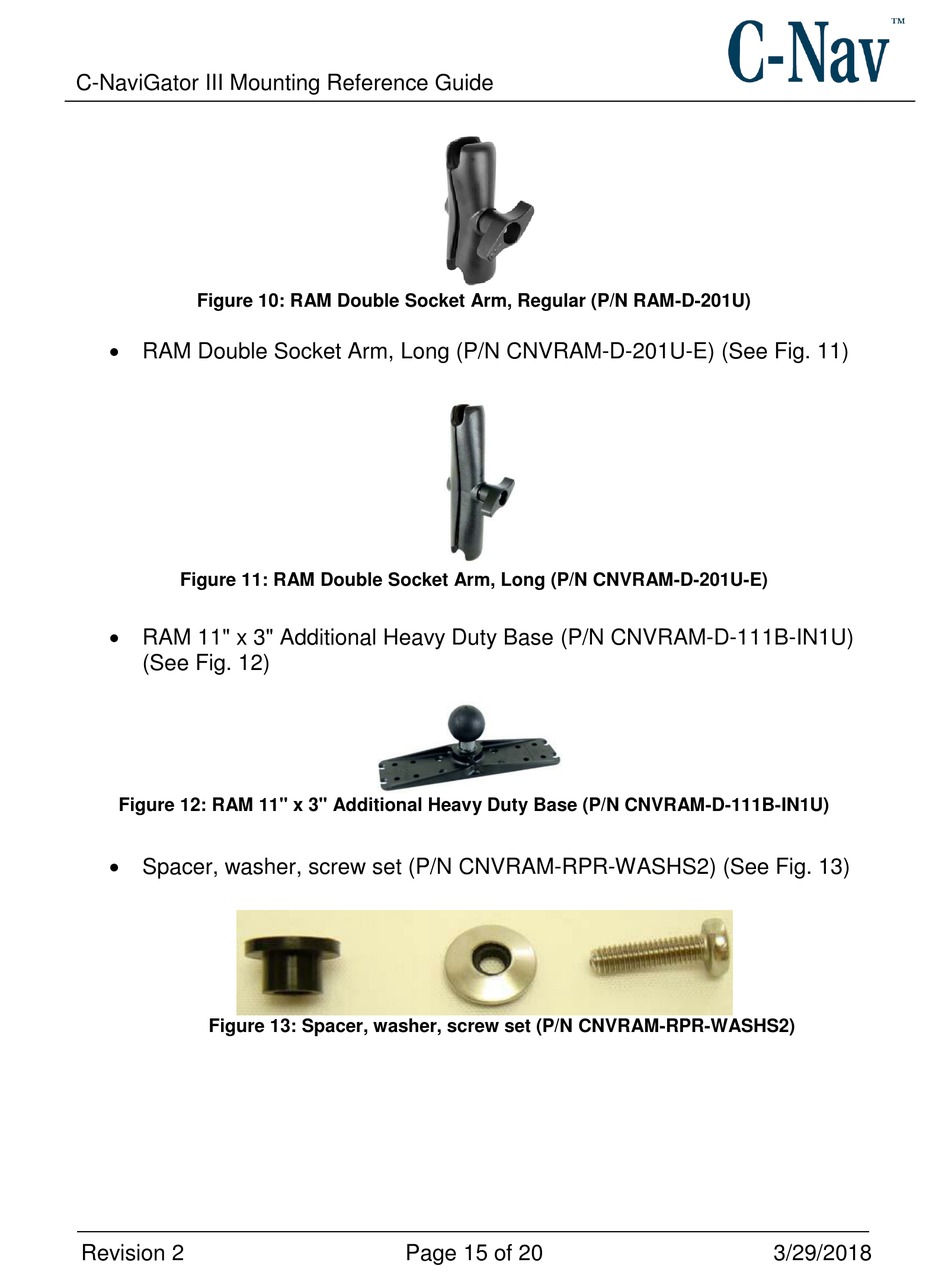

Figure 10: RAM Double Socket Arm, Regular (P/N RAM-D-201U)
RAM Double Socket Arm, Long (P/N CNVRAM-D-201U-E) (See Fig. 11)
Figure 11: RAM Double Socket Arm, Long (P/N CNVRAM-D-201U-E)
RAM 11" x 3" Additional Heavy Duty Base (P/N CNVRAM-D-111B-IN1U)
(See Fig. 12)
Figure 12: RAM 11" x 3" Additional Heavy Duty Base (P/N CNVRAM-D-111B-IN1U)
Spacer, washer, screw set (P/N CNVRAM-RPR-WASHS2) (See Fig. 13)
Figure 13: Spacer, washer, screw set (P/N CNVRAM-RPR-WASHS2)
Revision 2
Page 15 of 20
3/29/2018
