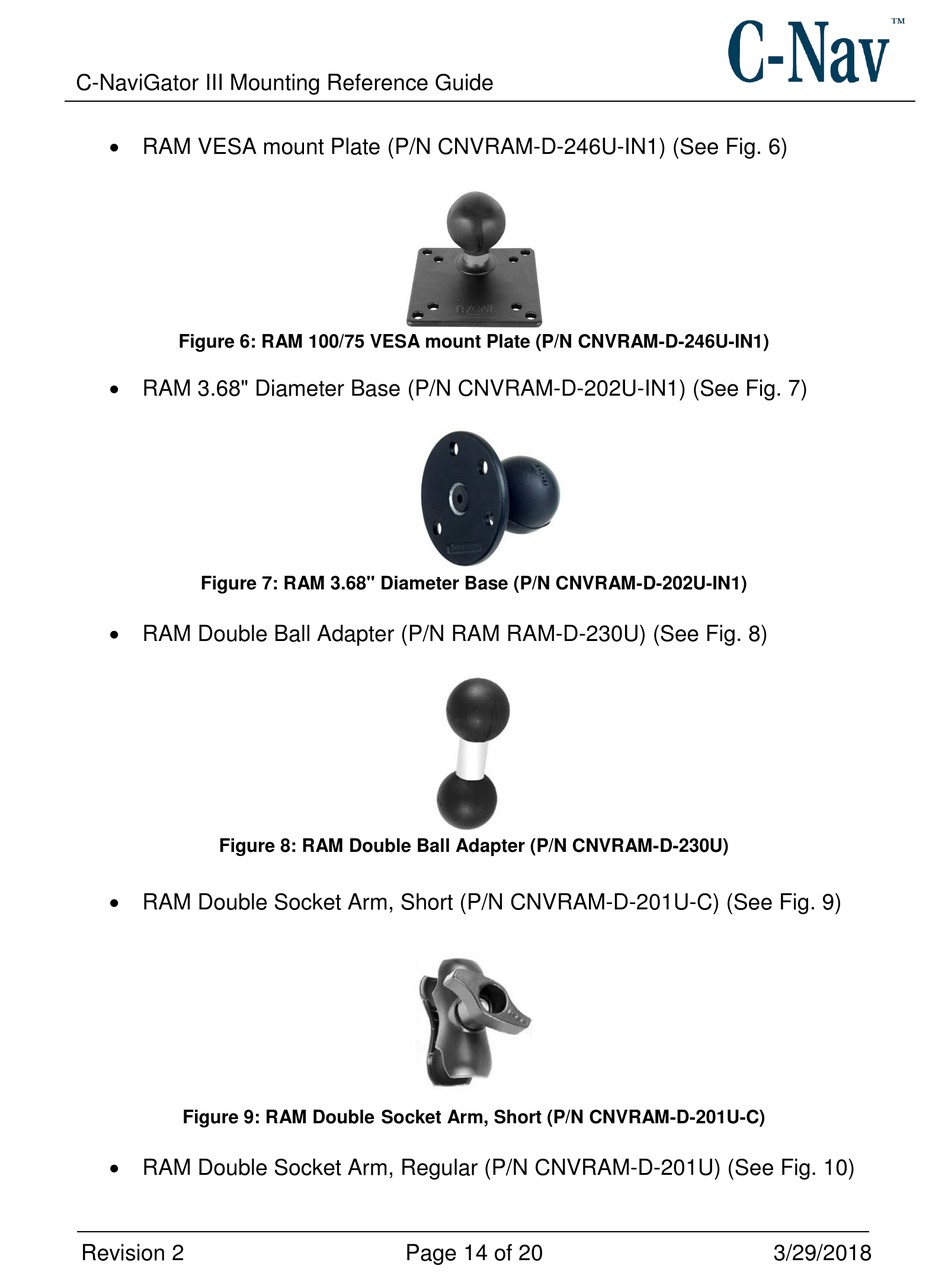

C-NaviGator III Mounting Reference Guide
RAM VESA mount Plate (P/N CNVRAM-D-246U-IN1) (See Fig. 6)
Figure 6: RAM 100/75 VESA mount Plate (P/N CNVRAM-D-246U-IN1)
RAM 3.68" Diameter Base (P/N CNVRAM-D-202U-IN1) (See Fig. 7)
Figure 7: RAM 3.68" Diameter Base (P/N CNVRAM-D-202U-IN1)
RAM Double Ball Adapter (P/N RAM RAM-D-230U) (See Fig. 8)
Figure 8: RAM Double Ball Adapter (P/N CNVRAM-D-230U)
RAM Double Socket Arm, Short (P/N CNVRAM-D-201U-C) (See Fig. 9)
Figure 9: RAM Double Socket Arm, Short (P/N CNVRAM-D-201U-C)
RAM Double Socket Arm, Regular (P/N CNVRAM-D-201U) (See Fig. 10)
Revision 2
Page 14 of 20
3/29/2018
