Larson Electronics PTB-1 Manual

Read the following steps carefully to understand and learn how to operate your new pan/tilt
base. The base can hold up to 65lbs. and is rated IP54.
Install Notes
Read this user's manual thoroughly and retain it for future reference.
Use a damp cloth to clean the unit.
Never attach anything to this unit that could lead to danger.
Do not install this unit to a surface that could become unstable such as a stand, tripod,
shelf or table.
Install the unit in an open area away from heat sources.
Always use the voltage listed on the unit.
Keep objects and cables away while the unit is in operation.
Do not electrically overload this unit to prevent a risk of fire.
Contact an electrician for installation if you are not familiar with electrical wiring.

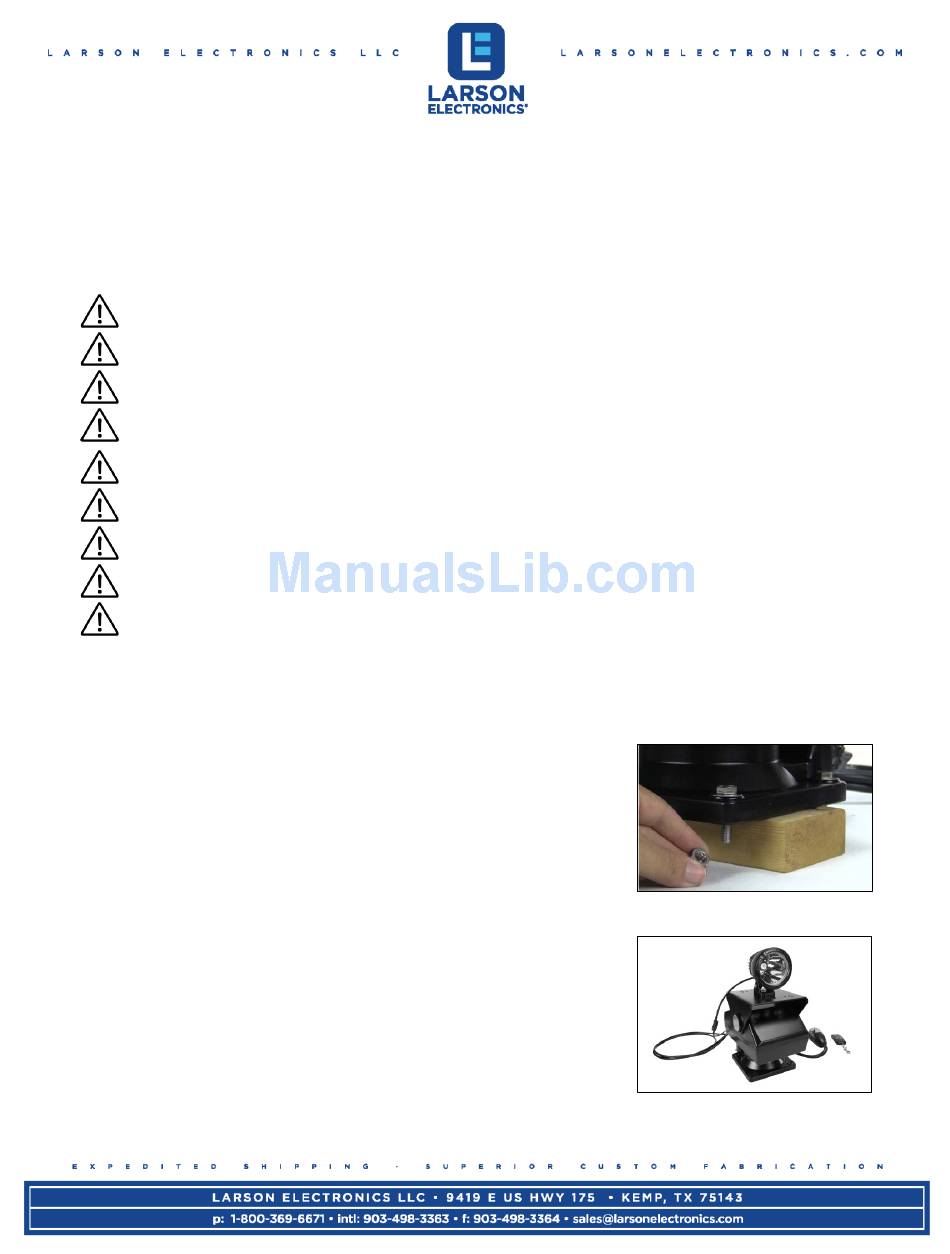

How to Mount the Pan/Tilt Base
1.
Determine the location you want to mount the base to.
2.
Attach the pan/tilt base to your surface using the four
corner thru-holes at the base of the unit. Use the provided
bolts to mount the base. Be sure the unit will move freely
and won't contact the wall, ceiling or pole during
operation.
3.
Bolt your device to the mounting plate on top of the unit
and secure it tightly. If necessary, use the included 8x10"
mounting plate.
Optional: Connect your device to one of the individual +/-
leads on the base. Seal off the additional wire if not used.
PTB-1 Pan Tilt Base
Page 1 of 5
