Installing the Repeater Card
1. Snap the SCSI bus repeater card (30-48985-01) upright into the
standoffs on the side of the StorageWorks shelf. See
2. Remove the connecting jumper cable from the StorageWorks
2
backplane. See
.
3. Disconnect the power cable from the connector. See

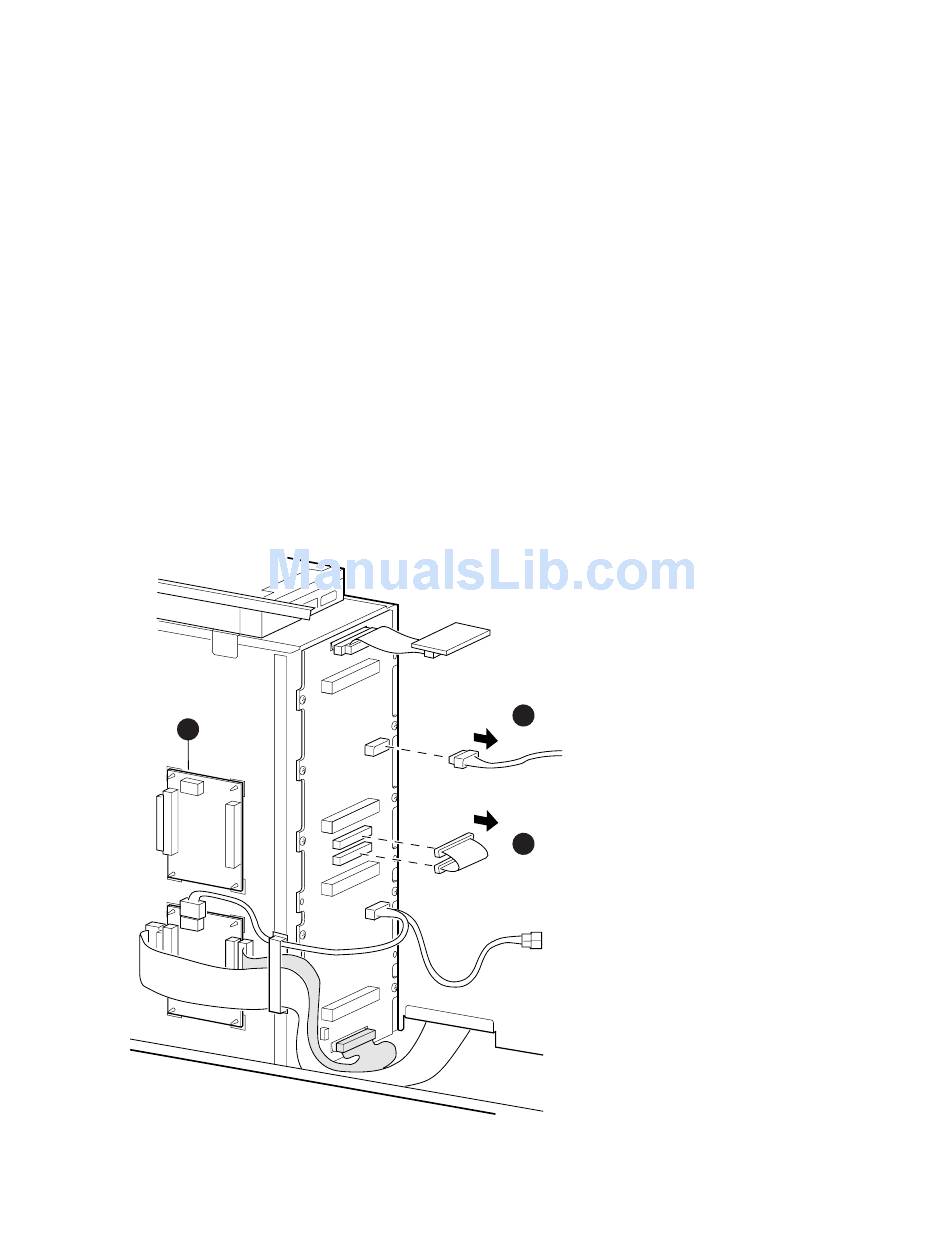

Figure 6 Installing the Repeater Card
1
AlphaServer DS20 Ultra SCSI Configuration Guide 7
1
.
3
.
3
2
PK0230
