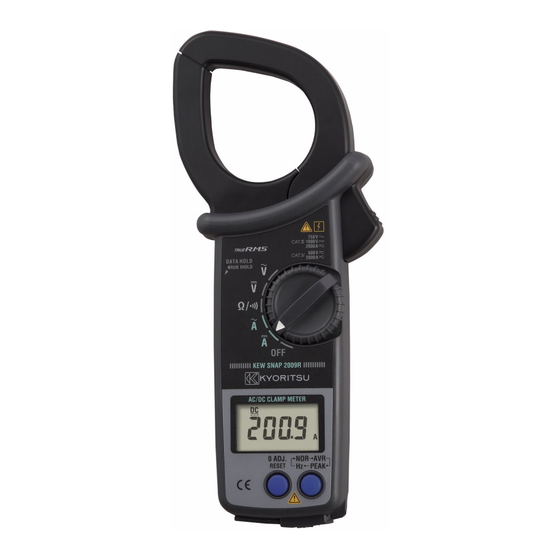

- Page 1 INSTRUCTION MANUAL 取扱説明書 DIGITAL CLAMP METER デジタルAC／DCクランプメータ KEW SNAP SERIES KEW SNAP 2009R...
-
Page 2: Table Of Contents
Contents １．Safety Warnings ････････････････････････････････････････ １ ２．Features ･･･････････････････････････････････････････････ ５ ３．Specifications ･･････････････････････････････････････････ ７ ４．Instrument Layout ･･･････････････････････････････････････ 11 ５．Preparation for Measurement ････････････････････････････ 14 ５−１ Checking Battery Voltage ･･････････････････････････ 14 ５−２ Checking Switch Setting and Operation ･････････････ 14 ６．Measurement ･･･････････････････････････････････････････ 15 ６−１ DC Current Measurement ･･････････････････････････ 15 ６−２... -
Page 3: １．Safety Warnings
1. Safety Warnings ○ This instrument has been designed and tested according to IEC Publication 61010: Safety Requirements for Electronic Measuring Apparatus. This instruction manual contains warnings and safety rules which must be observed by the user to ensure safe operation of the instrument and retain it in safe condition. - Page 4 Following symbols are used on the instrument and in the instruction manual. Attention should be paid to each symbol to ensure your safety. Refer to the instructions in the manual. This symbol is marked where the user must refer to the ...
- Page 5 ● Do not install substitute parts or make any modification to the instrument. Return the instrument to Kyoritsu or your distributor for repair or re-calibration. ● Do not try to replace the battery if the surface of the instrument is wet.
- Page 6 ○Measurement categories (Over-voltage categories) To ensure safe operation of measuring instruments, IEC 61010 establishes safety standards for various electrical environments, categorized as O to CAT IV, and called measurement categories. Higher-numbered categories correspond to electrical environments with greater momentary energy, so a measuring instrument designed for CAT III environments can endure greater momentary energy than one designed for CAT II.
-
Page 7: ２．Features
２．Features ● Tear-drop-shaped jaws for ease of use in crowded cable areas and other tight places. ● Accurate true-RMS reading of AC current or voltage with distorted waveform. ●Average function for easy reading of input with large variation. ●Auto-null function for easy zero adjustment. ●Provides frequency reading in AC current or voltage measurement. - Page 8 *Effective Value (RMS) Most alternating currents and voltages are expressed in effective values, which are also referred to as RMS (Root-Mean-Square) values. The effective value is the square root of the average of square of alternating current or voltage values. Many clamp meters using a conventional rectifying circuit have "RMS"...
-
Page 9: ３．Specifications
３．Specifications ● Measuring Ranges and Accuracy (at 23 ℃ ± ５ ℃ , relative humidity75% or less) AC Current (RMS value detection, Auto-range) Accuracy※ Range Display range Allowable input (Frequency) 400A 0.0∼420.0A ±1.3%rdg±3dgt (45∼66Hz) 1.0∼1700Arms ±2.0%rdg±5dgt (20Hz∼1kHz) 2000A 150∼2100A 1700∼2000Arms ±2.3%rdg±3dgt (3000Apeak or less) (45∼66Hz) - Page 10 DC Voltage (Auto-range) Range Display range Allowable input Accuracy 0.00∼±42.00V 400V ±15.0∼±420.0V 0.00∼±1000V ±1.0%rdg±2dgt 1000V ±150∼±1050V ※Input Impedance：approx. 2MΩ Resistance / Continuity (Auto-range) Range Display range Allowable input Accuracy 400Ω 0.0 ∼ 420.0Ω 0.0Ω∼ 4000Ω ±1.5%rdg±2dgt 4000Ω 150 ∼ 4200Ω ※...
- Page 11 Output Output voltage： 0.1mV ／ 1count Range Allowable input Output Voltage (mVDC) Accuracy DC400A 0.0∼±400.0A 0∼±400mV Within ±1mV DC2000A 0∼±2000A 0∼±200mV （To the indicated AC400A 0.0∼400.0A 0∼400mV value） AC2000A 0∼2000A 0∼200mV ※ When the display is "OL", the output voltage is 420mV（"-OL"： -420mV）...
- Page 12 ●Operating System ΔΣ modulation ●Display Liquid crystal display with a maximum count of 4200 plus annunciators ●Overrange Indication "OL" is shown on the display ●Response Time Approx. 2 seconds. ●Sample Rate About 3 times per second. ●Safety standard IEC 61010-1, 61010-2-032, 61010- 2-033, 61010-031 CAT IV 600V / CAT III 1000V Pollution degree 2 ●EMC...
-
Page 13: ４．Instrument Layout
４．Instrument Layout ① ⑮ ② ⑭ ③ ④ ⑦ ⑤ ⑥ ⑫ ⑨ ⑧ ⑩ ⑪ ⑬ ①Transformer Jaws Pick up current flowing through the conductor. ②Jaw Trigger Operates the transformer jaws. Press to open the Transformer Jaws. ③Function Selector Switch Selects function. - Page 14 ⑤Mode Selector Button Selects measuring mode. The instrument defaults to the normal mode (NOR). Then, press this switch to cycle through measuring modes. In any mode, pressing this switch for more than one second returns the instrument to the normal mode. Ω...
- Page 15 ⑧Terminal Cover Slides over V/Ω and COM Terminals to prevent access to them when OUTPUT terminal is in use. ⑨OUTPUT Terminal(For AC or DC current range only) Provides DC voltage output in proportion to the AC or DC current reading.
-
Page 16: ５．Preparation For Measurement
５．Preparation for Measurement ５－１ Checking Battery Voltage ① Set the function selector switch to any position other than "OFF". ② When the display is clear without "BATT" showing, proceed to measurement. ③ When the display blanks or "BATT" is indicated, replace the battery according to section 8. -
Page 17: ６．Measurement
６．Measurement ６－１ DC Current Measurement DANGER ● Do not make measurement on a circuit above 1000VDC. This may cause shock hazard or damage to the instrument or equipment under test. ● Do not make measurement with the battery compartment cover removed from the instrument. -
Page 18: ６−２ Ac Current Measurement
NOTE ● During current measurement, keep the transformer jaws fully closed. Otherwise, accurate measurement cannot be made. The maximum measurable conductor size is approx. 55mm in diameter. ● When the current flows from the upside (the display side) to the underside of the instrument, the reading is indicated positive. -
Page 19: ６−３ Dc Voltage Measurement
① Set the function selector switch to the " ∼ A" position. “AC" should be shown on the upper left corner of the display. ② Press the trigger to open the transformer jaws and clamp them onto a single conductor and take the reading on the display. The most accurate reading will be obtained by keeping the conductor at the center of the transformer jaws. -
Page 20: ６−４ Ac Voltage Measurement
① Set the function selector switch to the " Ｖ" position. “DC" should be shown on the upper left corner of the display. ② Slide the terminal cover to the left to disclose the V/Ω and COM terminals. Plug the red test lead into the V/Ω terminal and the black test lead into COM terminal. -
Page 21: ６−５ Resistance Measurement
③ Connect the tip of the red and black test leads to the circuit under test and take the reading on the display. NOTE ● When the voltage under test measures 3% of the range or less, or the frequency of the voltage is low, "LoHz" is indicated on the display. -
Page 22: ６−６ Continuity Check
６－６ Continuity Check (400Ω range fixed) ※ The continuity check mode is enabled by pressing the mode selector switch on resistance range. " " is indicated on the display to show the instrument in the continuity check mode. The buzzer beeps, if the resistance under test is 20.0Ω or less. ... -
Page 23: ６−８ Peak Measurement
DANGER ● Never use the instrument on a high voltage circuit above 750VAC. This may cause electrical shock hazard and damage to the instrument or the circuit under test. ● Do not make measurement with the battery compartment cover removed. - Page 24 DANGER ●Never use the instrument on a circuit above 750VAC/1000VDC. This may cause electrical shock hazard and damage to the instrument or the circuit under test. ● Do not make measurement with the battery compartment cover removed. ● Do not make measurement with the test leads plugged into the instrument.
-
Page 25: ６−９ Average Measurement
NOTE ● In the PEAK mode, the auto-ranging feature is disabled and measuring ranges are fixed as follows. DC/ACA: 0-400.0A DC/ACV: 0-400.0A ● When a measured value is 9 counts or less, it is corrected to 0 ● The Auto-power-off function is disabled in the PEAK mode as well. -
Page 26: ７．Other Functions
７．Other Functions ７－１ Auto-power-off Function CAUTION ● The instrument consumes small amount of battery power in the Auto-power-off mode. Make sure to set the function selector switch to the OFF position after use. This is a function to prevent the instrument from being left powered on in order to conserve battery life. -
Page 27: ７−３ Lohz Function
NOTE ● If the instrument in the Data Hold mode goes into "Auto-power- off," it will return to the normal mode. ７－３ LoHz Function In ACV or ACA range, if frequency of the voltage or current under test is 40Hz or lower, the display indicates "LoHz". "LoHz"... - Page 28 ② Slide the terminal cover to the right to disclose the OUTPUT terminal and insert the output plug into the terminal. Make connection to the recording device. ③ When the plug is inserted into the output terminal, auto-range function is cleared. Set the range depending on the state of Data Hold Switch.
- Page 29 ● Consult the output voltage specifications shown in section 3 and adjust the sensitivity of the recording device. ● For long hours of use of the OUTPUT terminal, use an Alkaline battery, which will extend continuous recording time up to about 35 hours.
-
Page 30: ８．Battery Replacement
８．Battery Replacement WARNING ● To avoid electric shock hazard, make sure to set the function selector switch to "OFF" and remove the test leads from the instrument before trying to replace battery. CAUTION ●Do not mix new and old battery. ●... -
Page 31: ９．Optional Accessories
①Set the function selector switch to the " ∼ A" position . ② As shown in the figure below, clamp KEW SNAP 2009R onto the pickup coil of MODEL 8008. ③Clamp MODEL 8008 onto the bus-bar or conductor under test. - Page 32 Memo ̶ 30 ̶...
- Page 33 DISTRIBUTOR Kyoritsu reserves the rights to change specifications or designs described in this manual without notice and without obligations. 8-16 92-2022B...
