AMX MVP-9000i Quick Start Manual

Overview

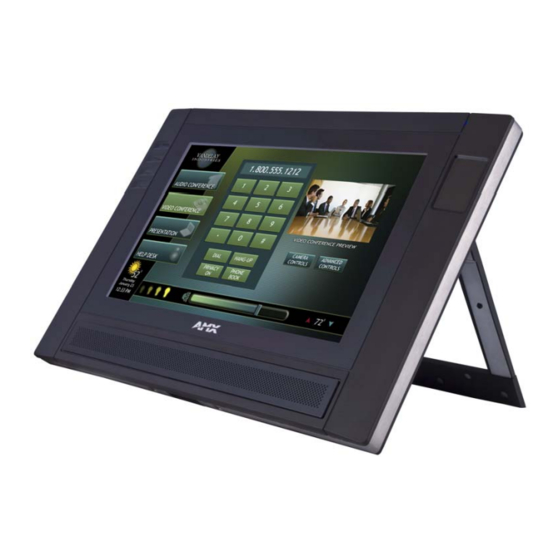

The AMX MVP-9000i-XX Modero Wireless Touch Panel is a mobile device that
communicates with a NetLinx Master via a standard 802.11a/b/g Wireless Access
Point. Panel to panel communication is enabled via a full duplex VoIP intercom interface
with SIP integration. The MVP-9000i utilizes a 9" Color Active LCD to display a 800 x
480 pixel image using over 16.7M colors, offers control via four programmable
capacitive touch buttons and a capacitive touch directional pad in addition to its touch
screen, and features programmable firmware that can be upgraded via the device's
mini-USB port. The MVP-9000i is certified compatible with Cisco Compatible
Extensions (CCX), Version 4. The MVP-9000i comes in black (MVP-9000i-GB,
FG5967-01) and white (MVP-9000i-GW, FG5967-02).
For detailed installation, configuration, programming, file transfer, and operating
instructions, refer to the MVP-9000i Instruction Manual, available at www.amx.com.
Microphone
Stylus
MicroSD
Memory
Card Slot
Mini-USB
Connector
DC Power
Docking Station Interface Connector
Jack
FIG. 1 MVP-9000I-GB TOUCH PANEL COMPONENTS
Specif ications
MVP-9000I SPECIF ICATIONS (FG5967-01/02)
Dimensions (HWD): • 7.62" x 10.98" x 1.06" (19.35 cm x 27.89 cm x 2.69 cm)
Weight: • 3.60 lbs (1.63 kg)
Power Requirement • Constant current draw: 1.1 A @ 12 VDC
(without charging):
• Startup current draw: 1.2 A @ 12 VDC
• If panel is mounted onto a TDS or WDS, add 0.1 A to the above
figures.
Power Requirement Panel while charging battery:
(while charging):
• Constant current draw: 2.0 A @ 12VDC
• If panel is mounted onto a TDS or WDS, add 0.1 A to the above
figures.
Minimum power • PS3.0 Power Supply (FG423-30)
supply required:
• PS-POE-AT High Power PoE Injector (FG423-81) through the Table
Docking Station and Wall Docking Station
Power Modes: • ON: All necessary modules are powered up and device remains
online with the NetLinx Master.
• ASLEEP: Only the backlight will be turned off after the user
selectable time of inactivity has elapsed. Panel resumes the ON
mode in ~ 1 second after being touched.
• STANDBY: Power to all components other than the touch screen is
turned off after the user selectable time of inactivity has elapsed.
Device will turn back on by touching the screen. Re-acquiring an
AP connection may require up to 10 seconds.
• SHUTDOWN: Power to all peripherals and components is turned
off. The system remains in this mode until it is rebooted.
Battery Duration: • On: 5 hours; Sleep: 10 hours; Standby: 3 days
Certifications: • FCC Class B
• CE
• IC
• VCCI
• C-Tick
• CCX
Memory: • 4GB internal MicroSD (3.1GB accessible to user)
Directional Pad
Status LED
Capacitive Touch Buttons (4)
Speaker
MVP-9000i
Modero Wireless Touch Panel with Intercom
MVP-9000I SPECIF ICATIONS (CONT.)
Screen Properties:
Active Screen Area:
Viewing Angle:
Audio:
Infrared
Communication:
Operating/Storage
Environments:
Included
Accessories
Other AMX
Equipment:

Connector Locations

Kickstand
MVP-9000I-GW KICKSTAND VIEW, SHOWING CONNECTOR LOCATIONS
FIG. 2
With the unit facing you, the MicroSD card slot (for loading files such as photos), the
mini-AB USB port (for programming and downloading firmware) and the DC power jack
are located on the lower left side of the device. The connector for the Docking Stations
is located on the bottom of the device. The MVP-9000i may be operated while docked in
a Table Docking Station or Wall Docking Station, connected via the included power
supply, or through battery power.
The MVP-9000i supports an Ethernet over USB driver for panel downloads and
firmware updates through its mini-USB port instead of through a standard Ethernet
port. The mini-USB port may also be used, with an adapter, with USB memory sticks
and USB headphones.
Warning:
Although f irmware upgrades can be done over wireless Ethernet; it is strongly
recommended that f irmware KIT f iles be transferred over a direct USB connection, or
with the unit in the docking station using the wired ENET option, and only when the panel
is connected to a power supply. If battery power or wireless connection fails during a
f irmware upgrade, the panel flash f ile system may become corrupted.
Note: The mini-USB port cannot be used to power the device or charge the battery.
Operation and charging must be done through the Docking Station connector or through
the power jack.
QUICK START GUIDE
• Screen resolution: 800 x 480 pixels (HV) @ 60 Hz refresh rate
• Aspect ratio: 16 x 9
• Brightness (luminance): 400 cd/m2
• Channel transparency: 8-bit Alpha blending
• Contrast ratio: 900:1 max.
• Display colors: 16.7M colors (24-bit color depth)
• Dot/pixel pitch: 0.246 mm
• Panel type: TFT Color Active-Matrix (IPS technology)
• 7.75" x 7.40" (196.80 mm x 188.08 mm)
• 9" (22.86 cm) diagonal
• Up/Down/Left/Right: 85/85/85/85
• Mono speaker: 4 Ohm, 2 Watts 300Hz cutoff frequency
• IR Transmit only, including AMX 38KHz, AMX 455KHz, and 3rd
party IR.
• Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Battery Charging Temperature: 0° C (32° F) to 30° C (86° F)
• Operating & Battery Charging Humidity: 20% to 85% RH
• Storage Temperature: -10° C (-14° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
• PS3.0 Power Supply (FG423-30)
• Stylus (pre-installed onto the left side of the device)
• MVP-TDS-9-GB Black Table Docking Station (FG5967-10)
• MVP-TDS-9-GW White Table Docking Station (FG5967-11)
• MVP-WDS-9-GB Black Wall Docking Station (FG5967-12)
• MVP-WDS-9-GW White Wall Docking Station (FG5967-13)
• CC-MINIUSB Mini USB to PC Cable Adapter (FG5967-20)
• MicroSD card - 4GB (FG2116-81)
• MicroSD card - 8GB (FG2116-82)
• MVP-BP-9 Replacement Battery Pack (FG5967-21)
• PS-POE-AT High Power PoE Injector (FG423-81)
• MVP-STYLUS-52-XX Replacement Stylus, pack of 3
(Black: FG5966-21; White: FG5966-22)
Stylus
MicroSD
Memory
Card slot
Mini-USB Port
DC Power Jack
