HDE-8C-QAM QUICK GUIDE
STEP 1

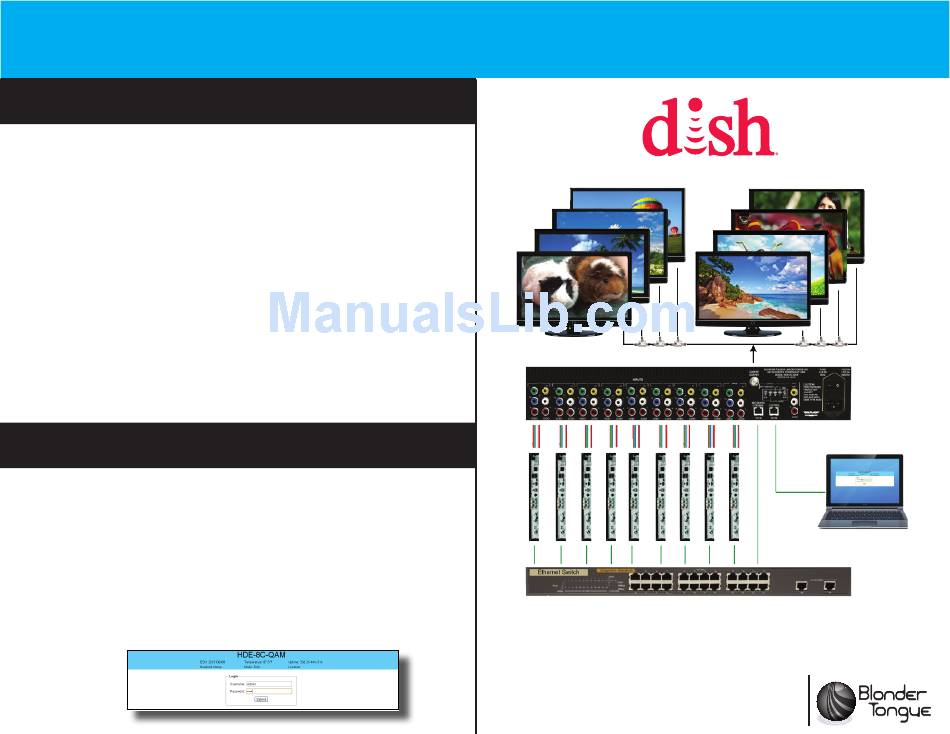

• Connect the unit as pictured to the right:
• Locate the receiver labels numbered 1 through 9 in the plastic bag
supplied with the encoder.
• Find the receiver ID number label on the first receiver. Write the last
4 digits of the ID on label #1 (RX1_####__) and place on the front of
the receiver.
• Repeat for all 9 satellite receivers (8 primary plus 1 optional spare).
• Now connect each receiver output to the encoder inputs, making
sure that receiver #1 (RX#1) is connected to #1 component input on
the encoder. Repeat this process for remaining receivers.
• Connect the Receivers Control 10/100 port on the encoder (see
section 2.2 #11 in manual) to an Ethernet switch (with a minimum of
10 ports) with a CAT 5 jumper cable.
• Connect the 9 satellite receivers to the same switch.
• Power up the receivers and the encoder.
STEP 2
• Log in to the HDE-8C-QAM, using a standard web browser. This can
be done through the Control 10/100 port, next to the Receiver
Control port. Either go directly from a computer or through an
Ethernet switch
• Assign 172.16.70.2 as the static address for your computer
• Now open your browser and enter 172.16.70.1 to access the
HDE-8C-QAM.
• The Username is "Admin" and the password is "pass"
Document # 651235400A Stock # 6370-1
(For supported Dish Network Receivers)
To download instruction manual visit www.BlonderTongue.com | 800-523-6049
IP=172.16.70.1
IP=172.16.70.2
Optional Spare
10/100
Ethernet
