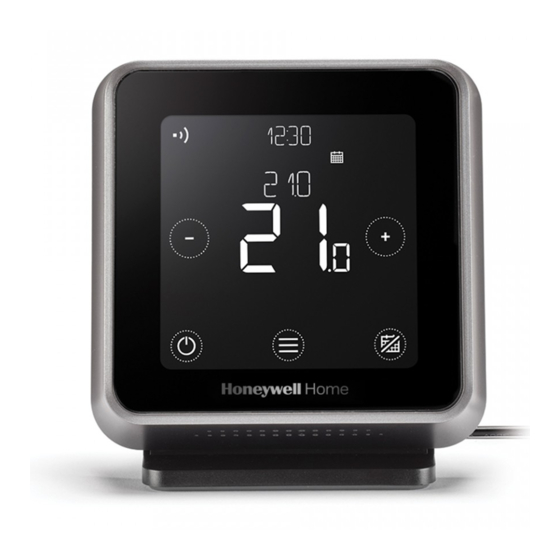

Honeywell T6R-HW User Manual

Smart thermostat
Hide thumbs

Advertisement

Quick Links

T6R-HW
SMART THERMOSTAT
Compatible with Sundial Y- and S-plan stored hot water
systems with zone valves. Also compatible with 24-230V
on/off appliances such as gas boilers, combi-boilers and
heat pump.
Need help? For assistance please visit: getconnected.honeywell.com
Honeywell Control Systems Ltd., Skimped Hill Lane,
Bracknell, Berkshire, RG12 1EB
Approvals
Conforms to protection requirements of the following directives: EMC: 2014/30/EU,
LVD: 2014/35/EU and RED: 2014/53/EU. Hereby, Honeywell, declares that this
thermostat is in compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU. The full text of the EU Declaration of Conformity
is available at the following Internet address: http://hwll.co/DoC
RF (868MHz): Receiver Category 2, Max RF Power 25mW, 868–868.6MHz (868.3MHz)
Wi-Fi (2.4GHz): Max Power 100mW, 2.4–2.458GHz
ErP: Class V (+3%), (EU) 811/2013
Must be installed by a competent person!
Read these instructions carefully. Failure to follow these instructions
can damage the product or cause a hazardous condition.
2
Prepare Receiver Box
for installation
Before installation of the
Receiver Box
Find a suitable location near
to the boiler. Leave at least
30cm distance from any
metal objects including
wallboxes and boiler
housing.
Loosen the front
screw to remove
cover or tighten it
when the cover is
back in place.
Needed during installation:
Cable with 2 wires from the boiler to Receiver Box.
The Receiver Box requires 230V power
Install the
4
T6R HW thermostat
Choose the appropriate plug.
Place the thermostat on an even, horizontal surface and plug it in.
To ensure your safety, always make sure mains power is switched OFF before
accessing wiring.
In case of removing the old thermostat be aware that the existing wiring will
no longer be used.
The T6R-HW thermostat should not be placed near draughts, in direct
sunlight or near heat sources.
Turn ON mains power to the Heating Appliance and Receiver Box.
1.70 m
Turn OFF the power
1
and remove the old thermostat
WEEE Directive 2012/19/EC
Waste Electrical and Electronic Equipment directive
At the end of the product life dispose of the packaging and product in a
corresponding recycling centre. Do not dispose of the unit with the usual
domestic refuse. Do not burn the product.
Install the
3
Receiver Box
A) Wall box or Rear Wiring
Hinge open the terminal block flap
to access the cables and wall box
screw holes.
min 0.25mm
2
Max 6 mm
max 1.5mm
2
Complete
5
installation
After
powering up both
devices the green
Reset
LED is on.
Push the buttons to
check if the boiler
switches on.
Buttons light green.
To rebind the units, reset the Receiver box, then press the button for 3 seconds.
The LED on the receiver box will blink yellow to indicate the box is in binding
mode. On the thermostat press
Navigate to Binding, clear the current binding then bind the device again.
Please refer to the wiring
diagrams over the page
B) Surface wiring
Use the cable clamps to secure the
surface wiring.
C) Replace the cover
Locate the
hinges at the top
of the cover and
wall plate, close
the cover and
secure with the
screw.
After power up,
SETUP is displayed on
the thermostat screen.
for 5 seconds to enter the advanced menu.
