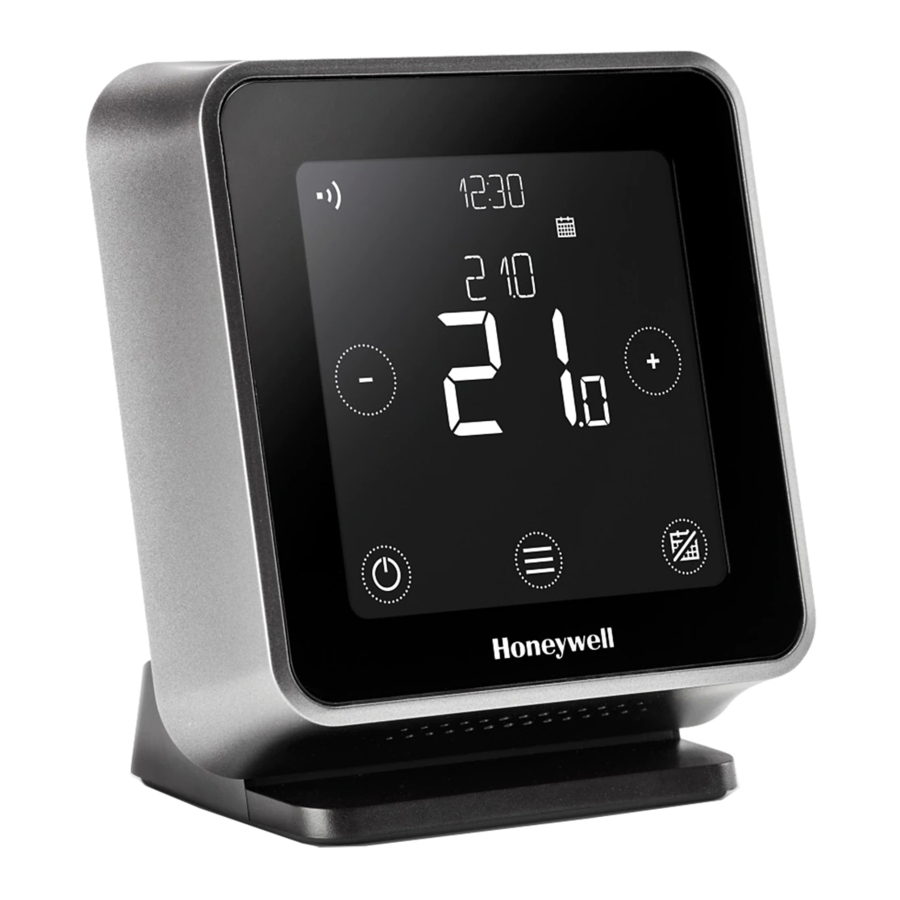

Honeywell Lyric T6R Manual

Introduction

Compatible with 24-230V on/off and OpenTherm® appliances such as gas boilers, combi-boilers and heat pump. Also works with zone valve applications but not with electric heating (240V).
Need help? For assistance please visit: getconnected.honeywell.com
warning Must be installed by a competent person! Read these instructions carefully. Failure to follow these instructions can damage the product or cause a hazardous condition.

Prepare Receiver Box for installation

Before installation of the Receiver Box
Find a suitable location near to the boiler. Leave at least 30cm distance from any metal objects including wallboxes and boiler housing.
Loosen the front screw to remove cover or tighten it when the cover is back in place.

Needed during installation:

Cable with 2 wires from the boiler to Receiver Box.
The Receiver Box requires 230V power

Install the Lyric T6R thermostat

Install the Lyric T6R thermostat
Choose the appropriate plug. Place the thermostat on an even, horizontal surface and plug it in.

Turn OFF the power and remove the old thermostat

To ensure your safety, always make sure mains power is switched OFF before accessing wiring.
In case of removing the old thermostat be aware that the existing wiring will no longer be used.

The T6R thermostat should not be placed near draughts, in direct sunlight or near heat sources.

Install the Receiver Box

warning Please refer to the wiring diagrams over the page

Wall box or Rear Wiring
Hinge open the terminal block flap to access the cables and wall box screw holes.

Surface wiring
Use the cable clamps to secure the surface wiring.

Replace the cover
Locate the hinges at the top of the cover and wall plate, close the cover and secure with the screw.

Complete installation

Turn ON mains power to the Heating Appliance and Receiver Box.
Complete installation

warning To rebind the units, reset the Receiver box, then press the button for 3 seconds. The LED on the receiver box will blink yellow to indicate the box is in binding mode. On the thermostat press for 5 seconds to enter the advanced menu. Navigate to Binding, clear the current binding then bind the device again.

Set Up and configuration

Touch to begin setting up the thermostat.

Select your language.

Set the clock format, time and date.

Touch to finalise setup.
( to setup using the App is currently unsupported)

Once setup is completed, if you need to change more settings go to the advanced menu. To access the advanced menu press for 5 seconds.

In the advanced menu the following settings can be adjusted:

Menu Item	Default	Options
LANGUAGE	English	0 = English, 1 = Français, 2 = Español 3 = Deutsch, 4 = Nederlands, 5 = Italiano
OPENTHERM	-	OpenTherm boiler data when available
CYCLE RATE	6	3, 6, 9 or 12
MINIMUM ON TIME	1 minute	1, 2, 3, 4 or 5 minutes
HEAT RANGE	Min = 5.0ºC Max = 35.0ºC	Min: 5ºC to 21ºC, Max: 21ºC to 35ºC
SCHEDULE OPTIONS	Daily	1 = Daily schedule, 2 = 5+2 days schedule
OPTIMISE	Opt. start OFF Opt. stop OFF	Opt. start: 0 = off, 1 = on, 2 = Delayed start Opt. stop: 0 = off, 1 = on
CLOCK	Format: 24h Time: --:-- Date: 01/09/16	Clock format: 1 = 12h, 2 = 24h Setup time and date
LOW LOAD CONTROL	ON	0 = off, 1 = on
TEMPERATURE OFFSET	0.0ºC	1.5 ºC to 1.5ºC
BINDING	-	Bind, check RF and clear bind.
RESET	-	Factory, schedule, WiFi and HomeKit reset
FAILSAFE	OFF	0 = off, 1 = on
