KM50-C
KM50-C
Smart Power Monitor
INSTRUCTION MANUAL
INSTRUCTION MANUAL
EN
9911216-0 A
All Rights Reserved

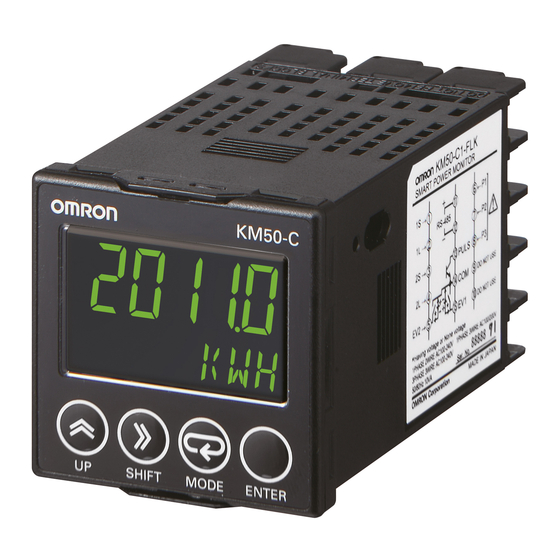

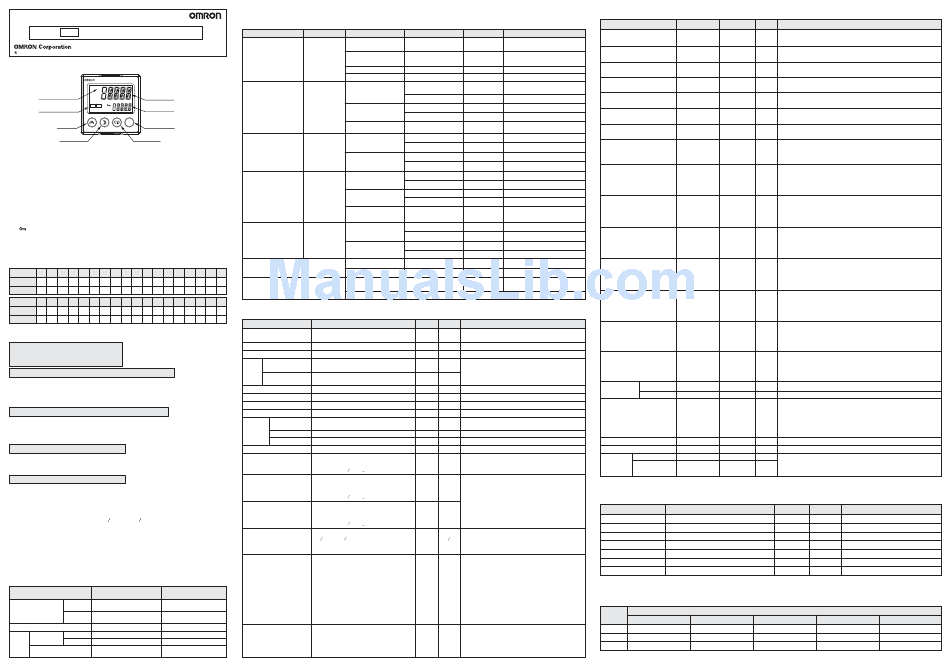

Nomenclature
■
KM50-C
P
Temperature unit
1st display
OUT1 STOP
Action indication
2nd display
UP key
ENTER key
UP
SHIFT
MODE ENTER
SHIFT key
MODE key
■
Display Screen
1) 1st display
Displays the measurement value or type of setting data.
2) 2nd display
Displays the unit or the parameter name of the measurement data or setting data.
3) Operation display
・OUT1: The light turns ON in conjunction with the output set to the OUT1 terminal.
・STOP: Lights ON when power is supplied after the time measurement function stops
following back-up power failure during power OFF. Lights OFF by setting time data.
When using the product with lights ON, measurement data log cannot be recorded.
・
(Key): Lights ON at protect setting.
4) Temperature unit
When selecting Celsius in the temperature unit setting,
is shown.
°C
When choosing Fahrenheit,
°F
is shown.
Segment display
■
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
a
b
c
d
e
f
g
h
i
G
H
l
I
N
o
7SEG
a b c d e f g h i j k
l m n o p
11SEG
S
T
U
V
W
X
Y
Z
0
1
2
3
4
5
6
s
t
u
W
X
Y
y
Z
Y
1
2
3
4
5
6
7SEG
s
t
u
v
w
x
y
z
0
1
2
3
4
5
6
11SEG
■
Basic usage
Setting Examples
Applicable circuit type: 1-phase 3-wire
Dedicated CT type: 5ACT
Time: March 5, 2010, 17:15
A. After checking the wiring, turn ON the power supply.
"Hm50c" is displayed and EEPROM is read ("wait" is displayed for 16 sec max).
When the power is turned ON for the first time, "e-t1" is displayed and STOP
turns ON because time has not been set. 3 sec later, active power in measure-
ment mode is displayed. (STOP remains ON).
B. Set applicable circuit type to 1-phase 3-wire.
1. Press the M key for more than 3 sec to go to applicable circuit type "00.typ"
in operation setting mode.
2. Press the U key to shift to setting state. Press the U key to change the
applicable circuit type from "3p3w" to "1p3w", and then press the O key to confirm.
C. Set dedicated CT type to 5ACT.
1. Press the S key to move to dedicated CT type "01.c.rg".
2. Press the U key to shift to setting state. Press the U key to change the
dedicated CT type from "100a" to "5a", and then press the O key.
D. Set the time to March 5, 2010, 17:15.
To use the log function, time setting is required.
1. Press the S key to move to time setting "11.tim".
2. Press the U key to shift to setting state.
Check that the year is "2010", and then press the O key.
3. Change the value of Month/Date with the U key and shift the digit with the S
key to change the value from "01 01" to "03 05", and then press the O key.
4. Change the value of Hour-Minute with the U key and shift the digit with the S
key to change the value from "00-00" to "17-15", and then press the O key.
The content of the time setting will be saved and STOP will be turned OFF.
5. Press the M key for more than 3 sec to move to measurement mode
(measurement start). When you move to measurement mode, the setting will
be saved and "save" is displayed.
This completes the basic settings.
■
Mode configuration and key operation
1) Mode configuration
Necessity of operation
Mode Group
Meaning
and setting
Measurement
Basic level
Read the measurement
Operate only at reading
data of the basic level
mode
Pro level Read the measurement
Operate only at reading
data of the Pro level
Protect setting mode
Limit the function
Set only when needed
Operation
Basic level
Setting
Set the basic level function Setting required at first setting
setting mode
mode
Pro level Set the Pro level function
Set only when needed
Communication
Set the communication
Set only when using the
setting mode
function
communication function
2) Key operation
Monitoring state is a state in which setting value is displayed in protect setting mode and setting mode.
Setting state is a state in which setting can be changed.
Symbol
Basic Meaning
Mode
O
・Mode switching
・Determination
ENTER key
Protect setting mode,
Setting mode
・Mode switching
M
Measurement mode
・Cancel
MODE key
Setting mode
Measurement mode,
Setting mode
・Transition
Measurement mode
S
SHIFT key
Setting mode
・Shift to
Measurement mode
U
setting state
UP key
・Change the
Setting mode
setting value
Measurement mode,
Setting mode
・Reverse
Measurement mode
M+S
transition
(Press the S
key while holding
the M key)
Setting mode
M+U
・Change the
Measurement mode
U
(Press the
key while
setting value
P
Q
R
holding the M key)
Setting mode
in reverse
p
J
K
・Mode switching
Measurement mode
M+O
q r
Protect setting mode
7
8
9
Setting mode
■
7
8
9
Operation setting mode Basic level
7
8
9
Item
Setting range (1st display)
1p2w, 1p3w, 3p3w
Applicable circuit type
5a, 50a, 100a, 200a, 400a, 600a
Dedicated CT type
Rated primary side current value
5 to 9999
none, 220, 440, 3300, 6600, 11000,
VT
VT primary side
setting
voltage value
22000, 33000
VT secondary side
110, 220
voltage value
Current low-cut value
0.1 to 19.9
Pulse output unit
1, 10, 100, 1k, 2k, 5k, 10k, 20k, 50k, 100k 05.pl5 100
Display refresh period
off, 0.5, 1.0, 2.0, 4.0
Averaging times.
off, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024 07.avg 8
off, on
Simple
Simple
measurement
measurement
setting
0.0 to 9999.9
Fixed voltage value.
Fixed power factor value.
0.00 to 1.00
CO
conversion factor
0.000 to 99.999
2
Charge conversion setting
0.000 to 99.999
(Rate setting and price
jpy, usd, eur, cny, krw
unit setting)
a to z, 0 to 9, , -, (Space)
Pulse conversion 1 setting
c-t.d, c-1.d, c-2.d, c-t.a, c-1.a, c-2.a
(Pulse conversion target,
0000 to 9999
factor, decimal point
0000, 000.0, 00.00, 0.000
position and display unit)
a to z, 0 to 9, , -, (Space)
Pulse conversion 2 setting
c-t.d, c-1.d, c-2.d, c-t.a, c-1.a, c-2.a
(Pulse conversion target,
0000 to 9999
factor, decimal point
0000, 000.0, 00.00, 0.000
position and display unit)
a to z, 0 to 9, , -, (Space)
2010 to 2099
Time setting
(Year, month/day,
01 01 to 12 31
hour/minute)
00-00 to 23-59
Initialization
set, max, min, integ, m.pro, log, all 15.ini set
Moving average time
001∼120
Setting
State
Operation
Description
press for more
Measurement history
Clear the currently displayed MAX
than 3 sec
(current day)
and MIN value of the present day.
click
Setting state
Determine the setting value.
Monitoring state
click
Move to communication setting mode.
Monitoring state
click
Move to operation setting mode.
Present measurement value,
Move to operation setting mode.
press for more
measurement history
than 3 sec
Measurement history
click
Move to present measurement value.
Monitoring state
press for more than 3 sec
Move to measurement mode.
Setting state
click
Cancel setting state.
Pro level
click
Move to "PROLV" of the basic level.
Present measurement value
click
Change parameters.
click
Switch measurement history display.
Measurement history
Monitoring state
click
Change parameters.
Setting state
click
Change digits.
Present measurement value
click
Move to measurement history.
click
Move from measurement history.
Measurement history
Monitoring state
click
Shift to setting state.
Setting state
click
Change the setting value.
Basic level ("PROLV"
click
Move to Pro level.
remains displayed)
Present measurement value
click
Change parameters in reverse.
Measurement history
click
Switch the measurement history display.
Monitoring state
click
Change parameters in reverse.
Setting state
click
Change digits in reverse.
Measurement history
click
Transit measurement history in reverse.
Setting state
click
Change the setting value in reverse.
Present measurement value,
press for more
Move to protect setting mode.
measurement history
than 3 sec
Monitoring state
press for more than 3 sec
Move to measurement mode.
2nd display Initial value
Remarks
00.typ 3p3w
1p2w: 1-phase 2-wire, 1p3w: 1-phase 3-wire,
3p3w: 3-phase 3-wire
01.c.rg 100a
02.sct 5
Effective only when the dedicated CT type is 5A.
03.v.rg none
When the simple measurement is ON, sequentially
measure the reactive voltage, VT primary voltage,
and VT secondary voltage.
v.rg2
110
Unit: V
04.cut 0.6
Unit: %
Unit: Wh
06.ref 1.0
off is instantly updated. Unit: Sec
08.smp off
At ON, set voltage and power factor,
Frequency is 50 Hz fixed.
vlt
110.0
Can be set only at simple measurement ON.
pf
1.00
Can be set only at simple measurement ON.
10.co2 0.387
Unit: kg-CO
/kWh
2
11.chg 10.000
Sequentially set the rate and price unit display.
4-digit price unit can be set.
jpy
12.cv1 c-1.d
Sequentially set the pulse conversion target, conver-
0001
sion factor, display unit. 4-digit display unit can be set.
c-t.d: Sum of pulse input counts
0000
c-1.d: Pulse input count 1
m3-1
c-2.d: Pulse input count 2
13.cv2 c-2.d
c-t.a: Sum of total pulse input counts
0001
c-1.a: Total pulse input count 1
0000
c-2.a: Total pulse input count 2
m3-2
14.tim 2010
Year, month/day, and hour/minute should be set
continuously. If it was canceled in process, all
01 01
values will return to previous values. As soon as
00-00
setting hour and minute, the settings are reflected.
set: Initialize all setting values except time setting.
max: Initialize all the max value of parameters of
the present day.
min: Initialize all the min value of parameters of
the present day.
integ: Initialize the total integral power consumption.
m.pro: Initialize the measurement values in the Pro
level in measurement mode of the present day.
log: Initialize all the measurement histories.
all: Initialize set values other than clock time
and all measurement histories.
Set the moving average time of the Moving
16.avt 120
average Current.
Cancel it during the input or set a value out of the
range, come back before a change.
Operation setting mode Pro level
Item
Setting range (1st display) 2nd display
Initial value
p.csp, h-on,
30.ei5
p.csp
Event input setting
3-st
npn, pnp
31.pn1
pnp
Event input 1 NPN/PNP
input mode setting
Event input 2 NPN/PNP
npn, pnp
32.pn2
pnp
input mode setting
Event input 1 N-O/N-C
n-o, n-c
33.in1
n-o
input mode setting
n-o, n-c
34.in2
n-o
n-o: Normally open
Event input 2 N-O/N-C
n-c: Normally close
input mode setting
Measurement start time (*1)
00-00 to 23-59 35.5tc
00-00
Time setting later than the measurement end time cannot
be made.
00-01 to 24-00 36.etc
24-00
Measurement end time (*1)
Time setting earlier than the measurement start time cannot
be made.
off, p.out,
50.o1
p.out
p.out: Integral power consumption pulse output,
Output terminal 1
function setting
alarm
alarm: Alarm output, When selecting "alarm", the screen
moves to the ON/OFF setting of various alarm outputs.
0.0 to 150.0
52.p.al (*2) See the
Active power alarm output
Sequentially set the upper/lower thresholds, hysteresis and
(Upper/lower thresholds,
0.0 to 19.9
remarks.
OFF-/ON-delay.
hysteresis and OFF-/ON-delay)
0.0 to 99.9
Upper threshold: 80.0%, Lower threshold: 0.0%,
Hysteresis: 5.0%, OFF-delay: 3.0 sec, ON-delay: 0.0 sec
0.0 to 150.0
53.r.al (*2) See the
Regenerated power alarm
Sequentially set the upper/lower thresholds, hysteresis and
output
0.0 to 19.9
remarks.
OFF-/ON-delay.
(Upper/lower thresholds,
0.0 to 99.9
Upper threshold: 80.0%, Lower threshold: 0.0%,
Hysteresis: 5.0%, OFF-delay: 3.0 sec, ON-delay: 0.0 sec
hysteresis and OFF-/ON-delay)
Current alarm output
0.0 to 120.0
54.a.al (*2) See the
Sequentially set the upper/lower thresholds, hysteresis and
(Upper/lower thresholds,
0.0 to 19.9
remarks.
OFF-/ON-delay.
0.0 to 99.9
Upper threshold: 110.0%, Lower threshold: 0.0%,
hysteresis and OFF-/ON-delay)
Hysteresis: 5.0%, OFF-delay: 3.0 sec, ON-delay: 0.0 sec
0.0 to 120.0
55.v.al (*2) See the
Voltage alarm output
Sequentially set the upper/lower thresholds, hysteresis and
(Upper/lower thresholds,
0.0 to 19.9
remarks.
OFF-/ON-delay.
hysteresis and OFF-/ON-delay)
0.0 to 99.9
Upper threshold: 110.0%, Lower threshold: 0.0%,
Hysteresis: 5.0%, OFF-delay: 3.0 sec, ON-delay: 0.0 sec
Power factor alarm output
0 to 100
56.pf.a (*2) See the
Sequentially set the upper/lower thresholds, hysteresis and
0 to 19
(Upper/lower thresholds,
remarks.
OFF-/ON-delay.
hysteresis and OFF-/ON-delay)
0.0 to 99.9
Upper threshold: 100%, Lower threshold: 0%,
Hysteresis: 5%, OFF-delay: 3.0 sec, ON-delay: 0.0 sec
Reactive power alarm output
0.0 to 150.0
57.q.al (*2) See the
Sequentially set the upper/lower thresholds, hysteresis and
0.0 to 19.9
(Upper/lower thresholds,
remarks.
OFF-/ON-delay.
hysteresis and OFF-/ON-delay)
0.0 to 99.9
Upper threshold: 80.0%, Lower threshold: 0.0%,
Hysteresis: 5.0%, OFF-delay: 3.0 sec, ON-delay: 0.0 sec
Integral power consumption
-w, var.d,
60.i.sl
-w
-w: Integral regenerated power consumption
saving selection
var.g, var.a
var.d: Integral leading reactive power consumption
var.g: Integral lagging reactive power consumption
var.a: Integral total reactive power consumption
Automatic rotation off, on
61.rtt
off
Automatic rotation
At ON, set the transition time.
setting
Transition time 1 to 99
rtim
3
Can be set only at automatic rotation ON.
Measurement parameter
off, on
62.d.sl
See the
Set it for each parameter of the measurement mode.
display selection
remarks.
For the charge conversion value, pulse conversion 1 and 2,
integral regenerated power consumption, integral
leading/lagging/total reactive power consumptions and simple
temperature, these initial values are off.
0 to 99
63.dsp
0
0 is always lighting, Unit: Min
Display lighting time
Incorrect voltage wiring detection off, on
64.v-e
on
Simple
Temperature unit c, f
65.d-u
c
Sequentially set the temperature unit and the temperature
temperature
Temperature
-50.0 to 50.0
t.ad
0.0
correction value.
c: Celsius, Unit: °C, f: Fahrenheit, Unit: °F
setting
correction value
*1 It applies to the pulse input count, power consumption rate, pulse input ON time.
*2 When thresholds or hysteresis is set, the operating value which is converted from the setting value (%) is displayed.
■Communication setting mode
Item
Setting range (1st display)
2nd display Initial value
compf, modb
80.psl
Protocol select
Unit No.
CompoWay/F: 0 to 99, Modbus: 1 to 99
81.u.no
1.2k, 2.4k, 4.8k, 9.6k, 19.2k, 38.4k
Baud rate
82.bps
Data bit length (*1)
7, 8
83.len
Stop bit length (*2)
1, 2
84.sbt
Vertical parity
none, odd, even
85.prt
Time to wait for sending
0 to 99
86.sdw
*1 When protocol is Modbus, data bit length is 8-bit fixed.
*2 When protocol is Modbus, stop bit length cannot be set due to automatic setting.
When vertical parity is NONE, the length is 2, when vertical parity is ODD or EVEN, the length is 1.
■Protected mode
Limit content
Setting
content
Displayed value transition Move to setting mode
Move to pro level
0
Yes
Yes
Yes
1
Yes
Yes
Yes
2
Yes
Yes
No
Remarks
p.csp: Electric power consumption rate,
h-on: Pulse input ON time, 3-st: 3-STATE
npn: None voltage input
pnp: Voltage input
npn: None voltage input
pnp: Voltage input
n-o: Normally open
n-c: Normally close
Remarks
compf
compf: CompoWay/F, modb: Modbus
1
9.6k
Unit: bps
7
Unit: bit
2
Unit: bit
even
20
Unit: ms
Clear measurement history
Change setting content
Yes
Yes
No
No
No
No
Yes: Permission / No: Prohibited
