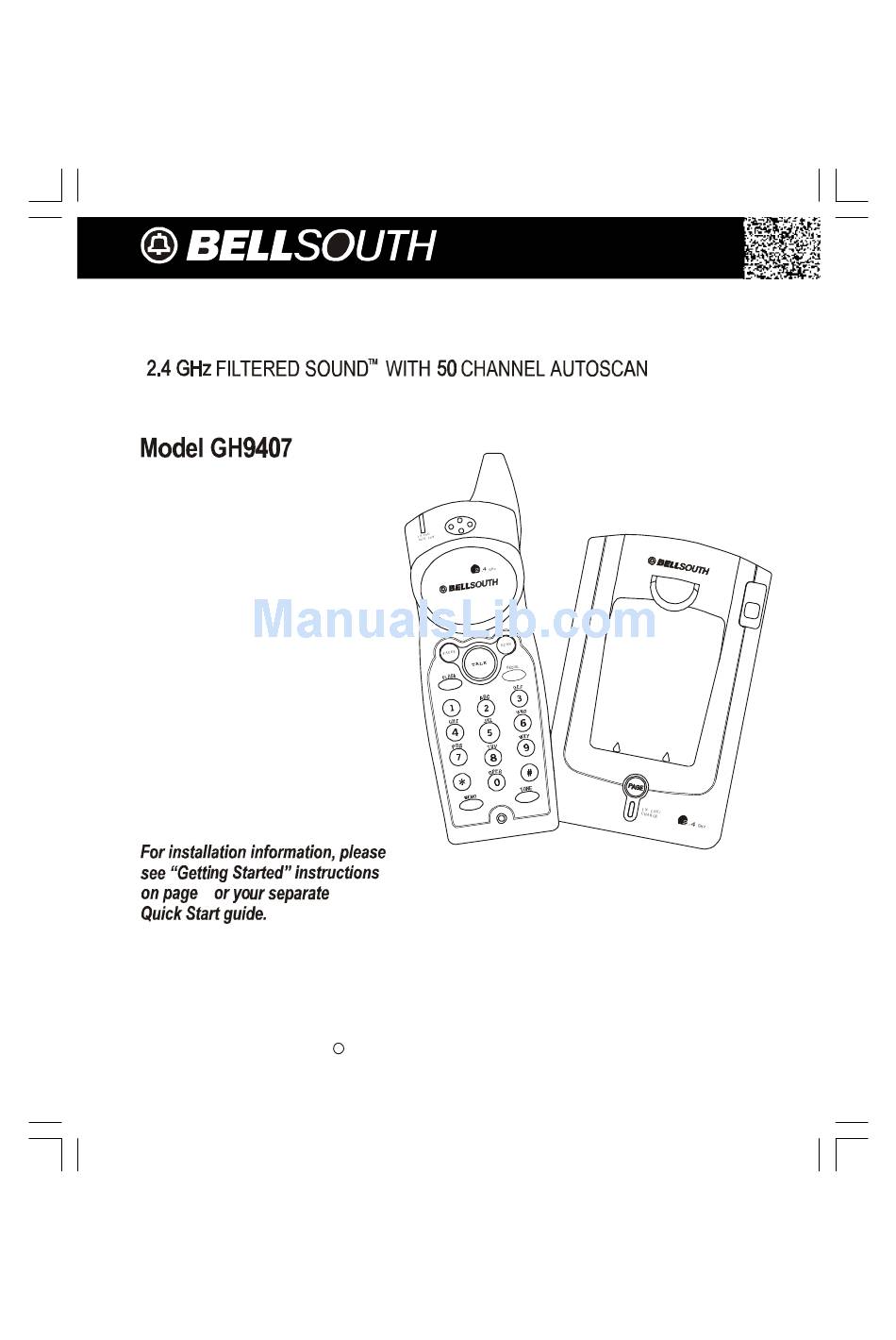

BellSouth GH9407 Owner's Manual

2.4 ghz filtered sound with 50 channel autoscan
Hide thumbs Also See for GH9407:
Table of Contents

Advertisement

Quick Links

Download this manual
CORDLESS TELEPHONE
OWNER'S MANUAL
INSTALLATION AND
OPERATING
INSTRUCTIONS
PLEASE READ THIS
MANUAL CAREFULLY
BEFORE USE.
KEEP FOR YOUR
REFERENCE.
4
1995, 2002 BellSouth Corporation
C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GH9407 and is the answer not in the manual?

Questions and answers

Related Manuals for BellSouth GH9407

Summary of Contents for BellSouth GH9407

  • Page 1 CORDLESS TELEPHONE OWNER'S MANUAL INSTALLATION AND OPERATING INSTRUCTIONS PLEASE READ THIS MANUAL CAREFULLY BEFORE USE. KEEP FOR YOUR REFERENCE. 1995, 2002 BellSouth Corporation...

  • Page 2: Special Features

    BellSouth is committed to providing quality products that fit your needs. We would like to have any comments or suggestions you might have on this product. You may mail your comments to: U.S.
  • Page 3 1. HANDSET ANTENNA IN USE/ BATT LOW 7. VOLUME CONTROL (HI, MID, LOW) SWITCH 2. TALK BUTTON Pg. 5, 7, 8, 9, 13 8. SCAN BUTTON 3. PAUSE BUTTON Pg. 7,10, 13, 16 Pg. 9 PAUSE SCAN TALK 4. FLASH BUTTON 9.

  • Page 4: Handset Controls

    HANDSET Controls 1. HANDSET ANTENNA Button: Press to answer an incoming call or to place a call. Press to end a call. TALK PAUSE Button: Press to insert a PAUSE while dialing. (You will need the PAUSE button to dial numbers which use an alternative Long Distance Access Code.) FLASH Button: Press to answer an incoming call if you have Call Waiting.
  • Page 5 1. TELEPHONE LINE 2. POWER-IN 3. TONE/PULSE CONNECTION JACK CONNECTION JACK SELECT SWITCH Pg. 4, 6, 13 Pg. 4 Pg. 5, 13 4. ANTENNA Pg. 9, 16 5. PAGE BUTTON 6. IN USE/CHARGE LED INDICATOR PAGE Pg. 8 IN USE/ CHARGE GH z 7.

  • Page 6: Base Unit Controls

    BASE UNIT Controls 1. TELEPHONE LINE CONNECTION JACK 2. POWER-IN CONNECTION JACK 3. TONE/PULSE Select Switch 4. HANDSET RETAINER TAB: For holding the HANDSET to rest securely in the BASE UNIT CRADLE during wall mounting. 5. BASE UNIT ANTENNA 6. CHARGE TERMINALS: For charging the BATTERY PACK inside the HANDSET. We recommend cleaning the CHARGE TERMINALS periodically with a damp cloth.

  • Page 7: Table Of Contents

    Contents Safety Instructions........................2 Getting Started..........................4 Desk Mounting..........................6 Wall Mounting..........................6 Basic Operation........................... 7 Preparing for Use........................7 Placing Calls...........................7 Receiving Calls........................8 Storing Numbers........................8 Recalling Stored Numbers..................... 9 Redial Feature........................9 Using the Headset Feature....................10 Security............................

  • Page 8: Safety Instructions

    Safety Instructions IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electric shock and/or injury, always follow these basic safety precautions when using your cordless telephone equipment. 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the telephone. 3.

  • Page 9: Battery Safety

    Safety Instructions Never install telephone wiring during a lightning storm. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. Use caution when installing or modifying telephone lines.

  • Page 10: Getting Started

    Getting Started Connecting Your Phone This section is a reference guide to the basic functions and operations of your cordless telephone. For more detailed descriptions of the operations and features of this telephone, refer to the Contents on page 1. 1.

  • Page 11: Belt Clip Installation

    HANDSET. Press down on the opposite side of the BELT CLIP until the other hook locks into the slot on the side of the HANDSET. BELT CLIP HOOK You are now ready to use your new BellSouth Cordless Telephone.

  • Page 12: Desk Mounting

    Desk Mounting One of the special features of your telephone is the unique design of the MOUNTING BRACKET which can hold your phone at an angle of 30°C when desk mounting. There are two positions to choose from: NORMAL POSITION (MOUNTING BRACKET not required): For normal position, as shown in Figure 1, place the FIGURE 1...

  • Page 13: Basic Operation

    Basic Operation Preparing for Use Before you can use your cordless telephone, you must charge the HANDSET for 12 hours. Failure to do so will require recharging of the BATTERY PACK more often. 1. Place the HANDSET on the BASE UNIT for 12 hours. 2.

  • Page 14: Receiving Calls

    Basic Operation Receiving Calls with the HANDSET on the BASE UNIT 1. When the phone rings, lift the HANDSET. The IN USE LED indicator will light up. 2. Start your conversation. 3. To end your conversation, either press the button or place the HANDSET on TALK the BASE UNIT.

  • Page 15: Recalling Stored Numbers

    Basic Operation EXAMPLE : To store the number 115-1968 under the TELEPHONE KEYPAD button: 1 - Press the MEMO button. 4 - Press the TELEPHONE KEYPAD button. 2 - Dial 115-1968. 5 - You have stored 115-1968 under TELEPHONE KEYPAD button.

  • Page 16: Using The Headset Feature

    Basic Operation Using the Headset Feature HEADSET Your telephone can utilize a headset (not included) to be connected to your HANDSET for you to enjoy MICROPHONE hands-free communication. Insert the small plug at the end of the headset into the HEADSET JACK at the right side of the HANDSET.

  • Page 17: Recharging The Battery Pack

    Recharging the BATTERY PACK Battery Type Use the following type and size of BATTERY PACK: Cordless Telephone BATTERY PACK 3.6V, 600 mAh U.S. Electronics Inc. Ni-Cd BATTERY PACK: Model B650 Ni-Cd This BATTERY PACK is available through: U.S. Electronics Service Center 105 Madison Avenue New York, NY 10016 1-800-828-5208...

  • Page 18: Changing The Battery Pack

    Changing the BATTERY PACK Changing the BATTERY PACK The BATTERY PACK provides power for the HANDSET of your cordless telephone. To Replace the BATTERY PACK: 1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down. 2. Pull out the BATTERY PACK PLUG and remove the BATTERY PACK. 3.

  • Page 19: Problem Solving

    Problem Solving Problem Solving Section For your assistance, we have listed below a few common problems. Phone does not work, check the following: 1. BASE UNIT is plugged into a power source. 2. HANDSET is charged. 3. TONE/PULSE Select Switch is in the right position. 4.

  • Page 20: Technical Information

    Technical Information Technical Information This cordless telephone uses radio frequencies to allow mobility. There are certain difficulties in using radio frequencies with a cordless telephone. While these are normal, the following could affect the operation of your system. Noise Electrical pulse noise is present in most homes at one time or another. This noise is most intense during electrical storms.

  • Page 21: Fcc Requirements

    FCC Requirements Federal Communications Commission Requirements This equipment complies with Part 68 of the FCC Rules. A label on the BASE UNIT of this equipment contains, among other information, the ACTA product number and the Ringer Equivalence Number (REN) for this equipment. You must, upon request, provide this information to your telephone company.
  • Page 22 FCC Requirements Federal Communications Commission Requirements (continued) NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 23: Warranty

    BellSouth Products with the telephone and/or loss of parts. This warranty is voided in the event any unauthorized person opens, alters or repairs the telephone. All BellSouth equipment being returned for repair must be suitably packaged.
  • Page 24 7137 Southlake Parkway Morrow, GA 30260 NOTE: A product received which was not made for BellSouth Products or which is not defective as determined by our test procedures will not be repaired and will be returned C.O.D., freight. o Obtain Warranty Service •...

  • Page 25: Wall Mount Template

    Wall Mount Template This page serves as a template for attachment of screws to the wall when mounting this telephone on the wall. 1. Cut out this page. 2. Use this template to determine the distance between screws when mounting this phone on the wall. The two cross hairs identify where to attach the screws.
  • Page 26 STOP Make certain you receive the best performance from your telephone. Read this manual first. GH9407 Made in China...
