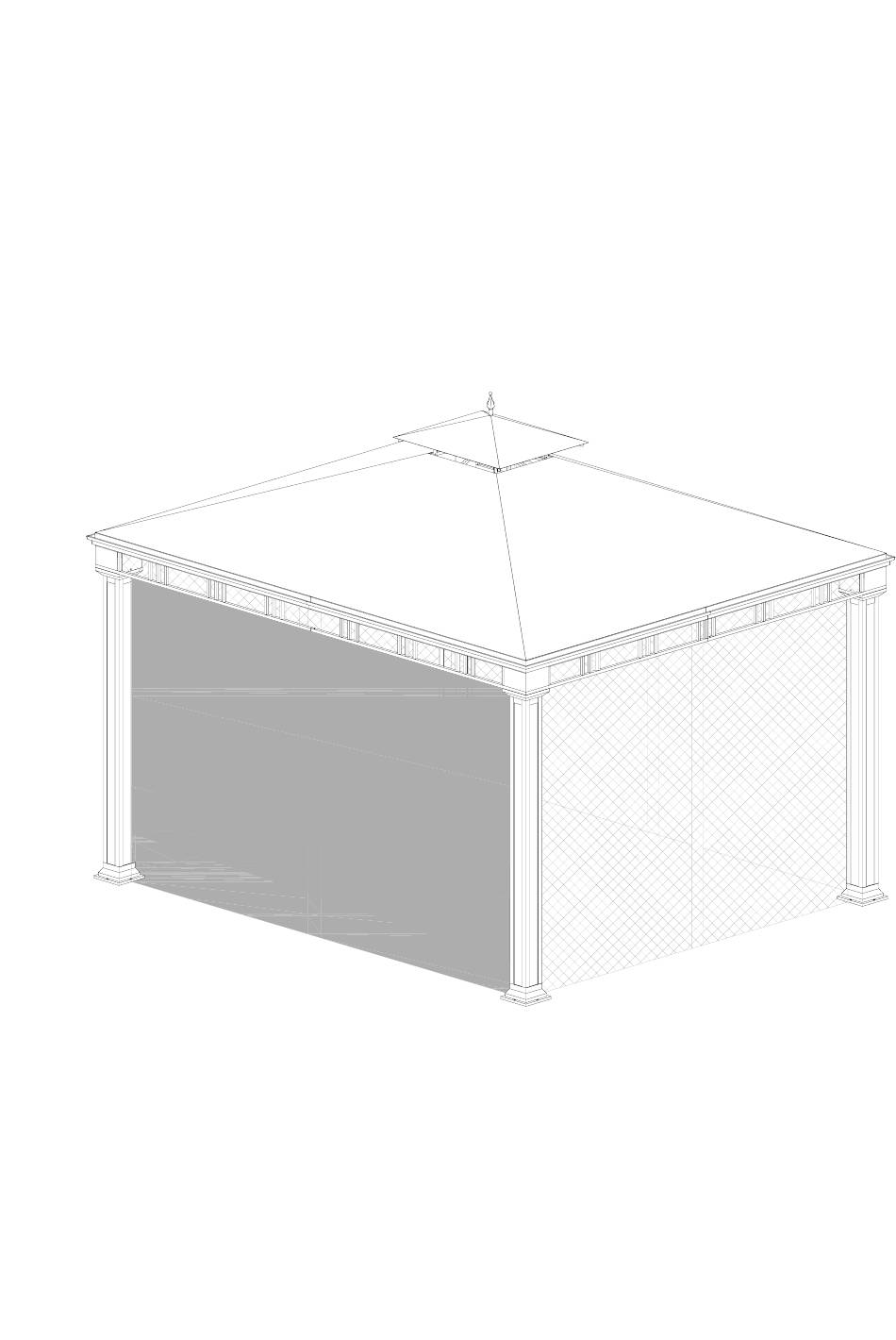

- Page 1 COLONIAL GAZEBO 88-0424-4 Assembly Instructions...
- Page 2 Identification of parts In order to facilitate identification, all parts are labelled according to the step in which they are used. step3 step2 step1 step1 step4...
-
Page 3: Parts List
Parts List (2 pcs) 1A Short rail (left) (2 pcs) 1B Short rail (right) (2 pcs) 1C Long rail (left) (2 pcs) 1D Long rail (right) Short launder (2 pcs) 1E Short launder (left) (2 pcs) 1F (right) Long launder (2 pcs) 1G Long launder (left) (2 pcs) 1H... -
Page 4: Hardware Pack
Hardware Pack 1 (AA) M6×35mm screw 24pieces (TBZ00306035HQ) (BB) M6mm washer 48 pieces (TBZ10806HQ) (DD) M6×15mm screw 24 pieces (TBZ00306015HQ) (WW) M6 Wrench 2 pieces Hardware Pack 2 For step3 (AA) M6×35mm screw 4 pieces (TBZ00306035HQ) (BB) M6mm washer 4 pieces (TBZ10806HQ) (EE)M6 nut 4 pieces... - Page 5 Hardware Pack 1 STEP1: Screen，Gutter Fig.1 Fig. 1 Fig. 2 Attach part 1A to part 1E using bolts AA and Unscrew the pre-installed bolts (CC) on part 1I, washers BB. Repeat this procedure for the and attach the 1A & 1E and 1B & 1F other launders and rails, as shown in Fig.
- Page 6 STEP 2: Large canopy Fig.7 Attach hook 2B to part 2A, as shown in Fig. 4. Insert the other end of part 2C into part 1N, as shown in Fig. 6. Fig. 7 Fig. 8...
- Page 7 Unscrew the pre-installed bolt CC, nut EE on part 1I, Unscrew the pre-installed bolt secure 1G& 1H assembly and 2F together using CC, CC, nut EE on part 1I, secure EE. as shown in Fig.7 1E& assembly together using CC, EE. as shown in Fig.
- Page 8 Place the small canopy (3D) onto the small top frame, and secure it in place by tightening the finial (3C) onto the bolt on the top of part 3A, as shown in Fig. 11. Fit 2G into its final position Fig.
- Page 9 Fig. 13 Attach part 4B to part 4D, and Attach post top and post base to post using the screws. as shown in secure them together using bolts Fig. 12.1 & 12.2 DD, as shown in Fig. 13. Lift the complete top assembly, and attach the posts (4A) to the rails using bolts HH and washers BB, as shown in Fig.
- Page 10 If you are within or beyond the return policy that most stores have, and need tech. assistance or replacement parts, please call Sunjoy Industries at 1(866) 578-6569 from 8:30 am to 5:30 pm eastern standard time or e-mail to service07@sunjoygroup.com or fax your parts replacement order form together with the purchase receipt to 1 (740) 283-3549 for assistance.
