SWELLPRO SPLASH DRONE 3 User Manual
Waterproof payload release with
one-axis 4k camera gimbal
Hide thumbs
Also See for SPLASH DRONE 3:
- User manual (51 pages) ,
- Tuning manual (17 pages) ,
- Operation manuallines (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for SWELLPRO SPLASH DRONE 3
Summary of Contents for SWELLPRO SPLASH DRONE 3
-
Page 1: User Manual

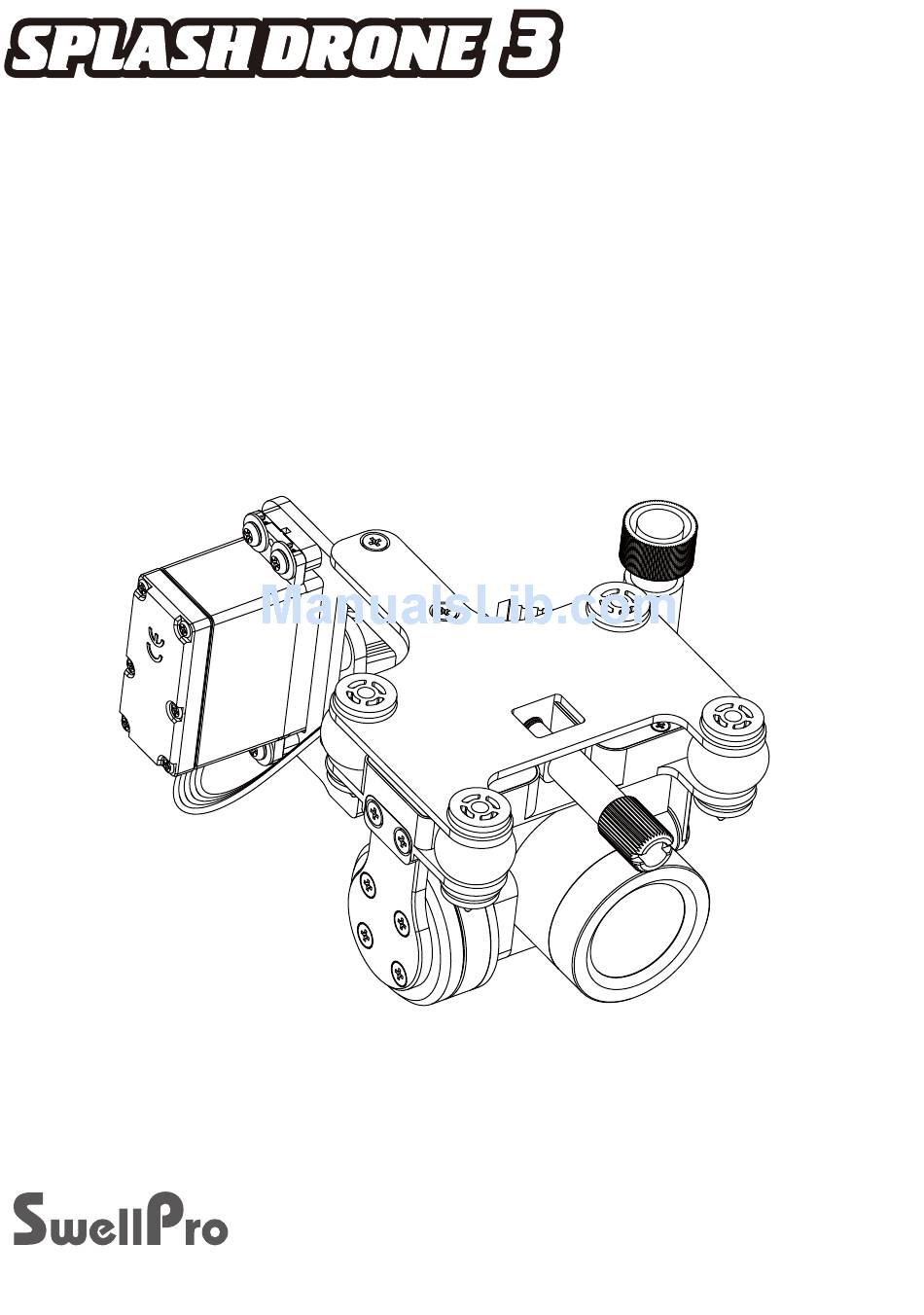

Waterproof Payload release with one-axis 4K Camera Gimbal User Manual www.swellpro.com... -
Page 2: Table Of Contents
Contents Installation Operation Gimbal Control Camera Control Air -Drop Control Camera Micro SD card installation Camera Settings and Use Camera Settings Video Settings System Settings Camera Indicator... -
Page 3: Installation
1.Installation Graphical Representation Description 1. Loosen the screw on the underside of the drone. 2. 3.Mount the Gimbal onto the bottom plate, and secure it with the fixing screw. 3. Insert the plug from the gimbal into the corresponding socket on the underside of the drone, and tighten the waterproof cap on the plug. -
Page 4: Operation
2. Operation Gimbal Control Tilt Control Camera Control Video Preview Photo Airdrop Control Airdrop... -
Page 5: Camera
Wifi switch: Short press ON, press OFF again again. Splash Drone 3 camera system supports up to a maximum capacity 64GB Micro SD card. Since the camera requires fast read and write speeds of high bit stream video data, use Class 10 or UHS-1 and above Mirco SD card to ensure normal camera recording. -
Page 6: Camera Settings And Use
IOS systems- for apple devices, please find the SwellCam APP in the apple store, and install the APP. Android systems can download the APK installation on the www.swellpro.com site 2. Camera WIFI connection: Please Note, the WiFi is used for preflight setup purposes only, and must be disabled prior to take off. -
Page 7: Record Setting
Camera Setting Picture Format JPEG Picture Size 14M 10M 5M Time Stamp OFF ON Burst Speed OFF 3pics/second Timer OFF 5 seconds or 10 seconds Self-timer 3 seconds/pic 5 seconds/pic 10 seconds/pic 30 seconds/pic Record Setting Resolution APP control： 1920*1080(P30 /P60) 1280*720(P30/P60) 2880*2160 24p 2560*1440 30p Remote Control:... -
Page 8: Camera Indicator
White Balance AUTO, cloudy, sunny, Incandescent lamp, Fluorescent lamp ON, OFF Recording ON, OFF Video Format PAL, NTSC Metering Global metering, Center-weighted, spot Frequency 50Hz, 60Hz Format Sure, Cancel Default Setting Sure, Cancel Camera Indicator Green ON Power on into preview mode Green Slow Blink Saving picture or video Red ON... - Page 9 Waterproof Payload release with one-axis 4K Camera Gimbal User Manual V1.0 2017.07...
