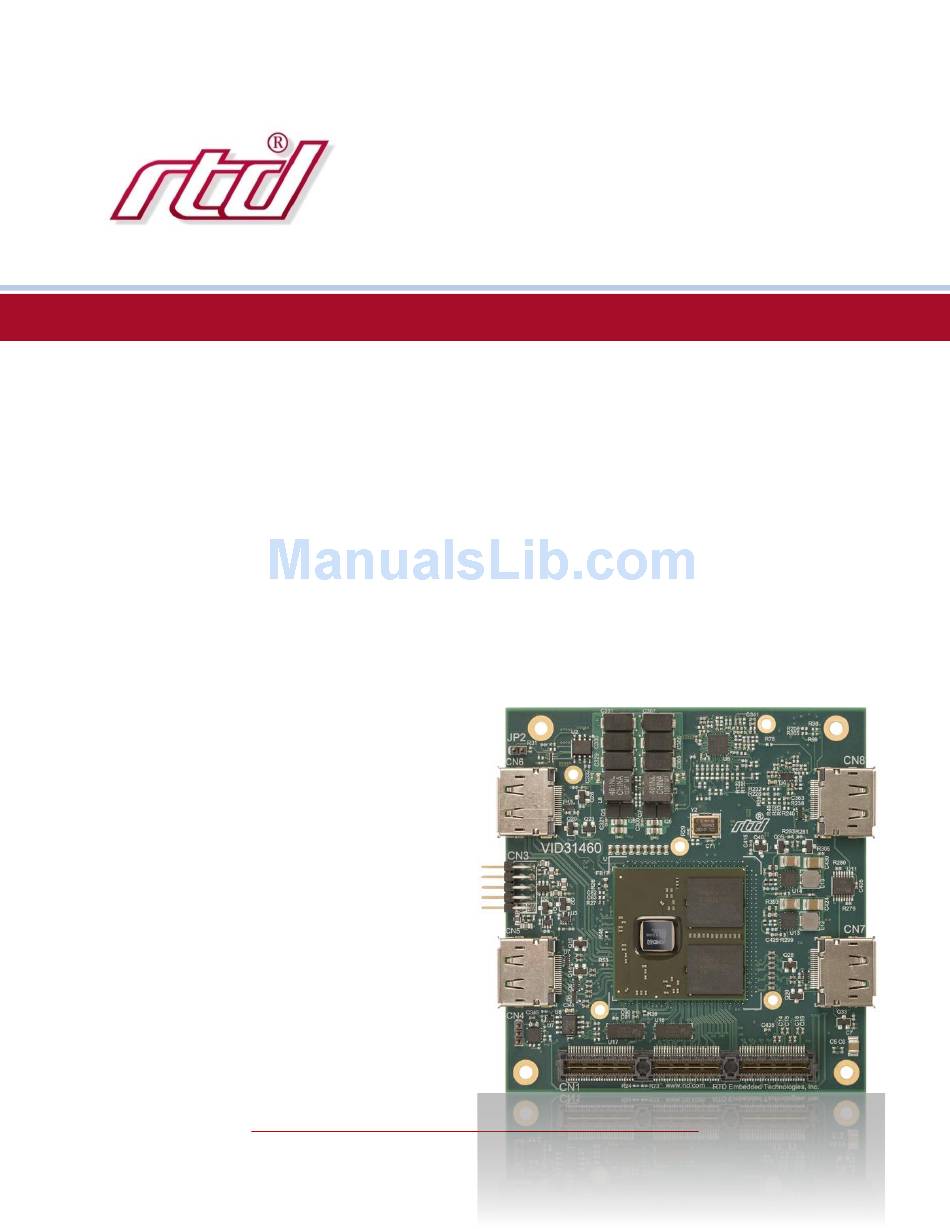

- Page 1 VID31460ER/VID31760ER VID34460ER/VID34760ER PCI Express Video Controller User’s Manual BDM-610020109 Rev. C RTD Embedded Technologies, Inc. AS9100 and ISO 9001 Certified...
- Page 2 RTD Embedded Technologies, Inc. 103 Innovation Boulevard State College, PA 16803 USA Telephone: 814-234-8087 Fax: 814-234-5218 www.rtd.com sales@rtd.com techsupport@rtd.com...
-
Page 3: Revision History
Failure to follow the instructions found in this manual may result in damage to the product described in this manual, or other components of the system. The procedure set forth in this manual shall only be performed by persons qualified to service electronic equipment. Contents and specifications within this manual are given without warranty, and are subject to change without notice. RTD Embedded Technologies, Inc. shall not be liable for errors or omissions in this manual, or for any loss, damage, or injury in connection with the use of this manual. -
Page 4: Table Of Contents
Block Diagram................................... 17 AMD GPU Controller ................................17 5.2.1 Multiple Displays Software Drivers ....................................... 18 BIOS Settings for RTD’s CMA22/CMX32 ..........................18 Troubleshooting Additional Information PC/104 Specifications ................................20 PCI and PCI Express Specification ............................20 Limited Warranty | www.rtd.com VID31460ER/VID31760ER User’s Manual... - Page 5 Table 2: Operating Conditions ....................................8 Table 3: Electrical Characteristics .................................... 8 Table 4: CN3 VGA Connector ....................................11 Table 5: CN4 Fan Header ...................................... 11 Table 6: IDAN-VID31x60 15-Pin High Density "D" Connector ..........................15 | www.rtd.com VID31460ER/VID31760ER User’s Manual RTD Embedded Technologies, Inc.
-
Page 6: Introduction
PCIe/104 x4 Video Controller with AMD E6460 in IDAN enclosure IDAN-VID31760ER PCIe/104 x16 Video Controller with AMD E6760 in IDAN enclosure IDAN-VID34760ER PCIe/104 x4 Video Controller with AMD E6760 in IDAN enclosure | www.rtd.com VID31460ER User’s Manual RTD Embedded Technologies, Inc. -
Page 7: Contact Information
The Intelligent Data Acquisition Node (IDAN™) building block can be used in just about any combination with other IDAN building blocks to create a simple but rugged 104™ stack. This module can also be incorporated in a custom-built RTD HiDAN™ or HiDANplus High Reliability Intelligent Data Acquisition Node. -
Page 8: Specifications
Output Voltage Low = 8.0mA DDCCLK,DDCDATA 5V Overcurrent Limit DisplayPort Differential Output Voltage 0.34 0.92 AUX Differential Output Voltage AUX Common-Mode Voltage 3.3V Overcurrent Limit Supports DisplayPort V1.2 CN5,CN6,CN8 Supports DisplayPort V1.1 | www.rtd.com VID31460ER User’s Manual RTD Embedded Technologies, Inc. -
Page 9: Board Connection
Weight: Approximately 0.14 Kg (0.30 lbs.) with heat sink Dimensions: 90.17 mm L x 95.89 mm W (3.550 in L x 3.775 in W) 22mm PCIe Bus connector Figure 1: Board Dimensions | www.rtd.com VID31460ER User’s Manual RTD Embedded Technologies, Inc. -
Page 10: Thermal Management
In order to maintain maximum performance over the full temperature range, it is recommended that a PCIe spacer be used between the VID31x60ER/VID34x60ER and any board immediately above it. Figure 2: Board with Heatsink | www.rtd.com VID31460ER User’s Manual RTD Embedded Technologies, Inc. -
Page 11: Connectors And Jumpers
CN4: Fan Header The Fan header is a 1 x 3, 2mm spacing vertical connector. The pin assignments are shown in Table 5 below. Table 5: CN4 Fan Header +5V_ PWM | www.rtd.com VID31460ER User’s Manual RTD Embedded Technologies, Inc. -
Page 12: Cn5, Cn6, Cn7 & Cn8: Displayport Connector
Specification. (See PC/104 Specifications on page 20) The VID31x60 has Type 1 PCIe/104 connector. The VID31x60 use the x16 link and must be located below the CPU. 3.3.3 UMPERS JP2 is for Factory Use only | www.rtd.com VID31460ER User’s Manual RTD Embedded Technologies, Inc. -
Page 13: Steps For Installing
NOTE: In Order to maintain maximum performance over the full temperature range, it is recommended that a PCIe spacer be used between the VID31x60 and any board immediately above it. Figure 4: Example 104™Stack | www.rtd.com VID31460ER User’s Manual RTD Embedded Technologies, Inc. -
Page 14: Idan Connections
Weight: Approximately 0.21 Kg (0.46 lbs.) Dimensions: 152 mm L x 130 mm W x 24 mm H (5.98 in L x 5.12 in W x 0.93 in H) Figure 5: IDAN Dimensions | www.rtd.com VID31460ER User’s Manual RTD Embedded Technologies, Inc. -
Page 15: Connectors
The PCIe connector is the connection to the system CPU. The position and pin assignments are compliant with the PCI/104-Express Specification. (See PC/104 Specifications on page 20) The VID31x60 has Type 1 PCIe/104 connector. The VID31x60 use the x16 link and must be located below the CPU. | www.rtd.com VID31460ER User’s Manual RTD Embedded Technologies, Inc. -
Page 16: Steps For Installing
10. Attach any necessary cables to the IDAN system. 11. Re-connect the power cord and apply power to the stack. 12. Boot the system and verify that all of the hardware is working properly. Figure 6: Example IDAN System | www.rtd.com VID31460ER User’s Manual RTD Embedded Technologies, Inc. -
Page 17: Functional Description
VGA connector The AMD E6760 supports up to 5 displays. The VID31760/VID34760 provides 4 DisplayPorts and one VGA connector to utilize this capability of the E6460. All displays may be used simultaneously. | www.rtd.com VID31460ER User’s Manual RTD Embedded Technologies, Inc. -
Page 18: Software
Software Drivers VID31x60//VID34x60 uses the standard AMD Embedded Radeon E6460/E6760 drivers. Drivers can be found on the RTD companion CD or at RTD’s website, http://www.rtd.com. For the latest AMD drivers, refer to AMD’s website, http://www.amd.com. BIOS Settings for RTD’s CMA22/CMX32 When using the VID31x60 with RTD’s CMA22/CMX32, the follow BIOS settings need changed for the module to function properly. -
Page 19: Troubleshooting
If problems persist, or you have questions about configuring this product, contact RTD Embedded Technologies via the following methods: Phone: +1-814-234-8087 E-Mail: techsupport@rtd.com Be sure to check the RTD web site (http://www.rtd.com) frequently for product updates, including newer versions of the board manual and application software. | www.rtd.com VID31460ER User’s Manual RTD Embedded Technologies, Inc. -
Page 20: Additional Information
A copy of the latest PC/104 specifications can be found on the webpage for the PC/104 Embedded Consortium: www.pc104.org PCI and PCI Express Specification A copy of the latest PCI and PCI Express specifications can be found on the webpage for the PCI Special Interest Group: www.pcisig.com | www.rtd.com VID31460ER User’s Manual RTD Embedded Technologies, Inc. -
Page 21: Limited Warranty
During the one year warranty period, RTD Embedded Technologies will repair or replace, at its option, any defective products or parts at no additional charge, provided that the product is returned, shipping prepaid, to RTD Embedded Technologies. All replaced parts and products become the property of RTD Embedded Technologies. - Page 22 RTD Embedded Technologies, Inc. 103 Innovation Boulevard State College, PA 16803 USA Telephone: 814-234-8087 Fax: 814-234-5218 www.rtd.com sales@rtd.com techsupport@rtd.com Copyright 2015 by RTD Embedded Technologies, Inc. All rights reserved.
