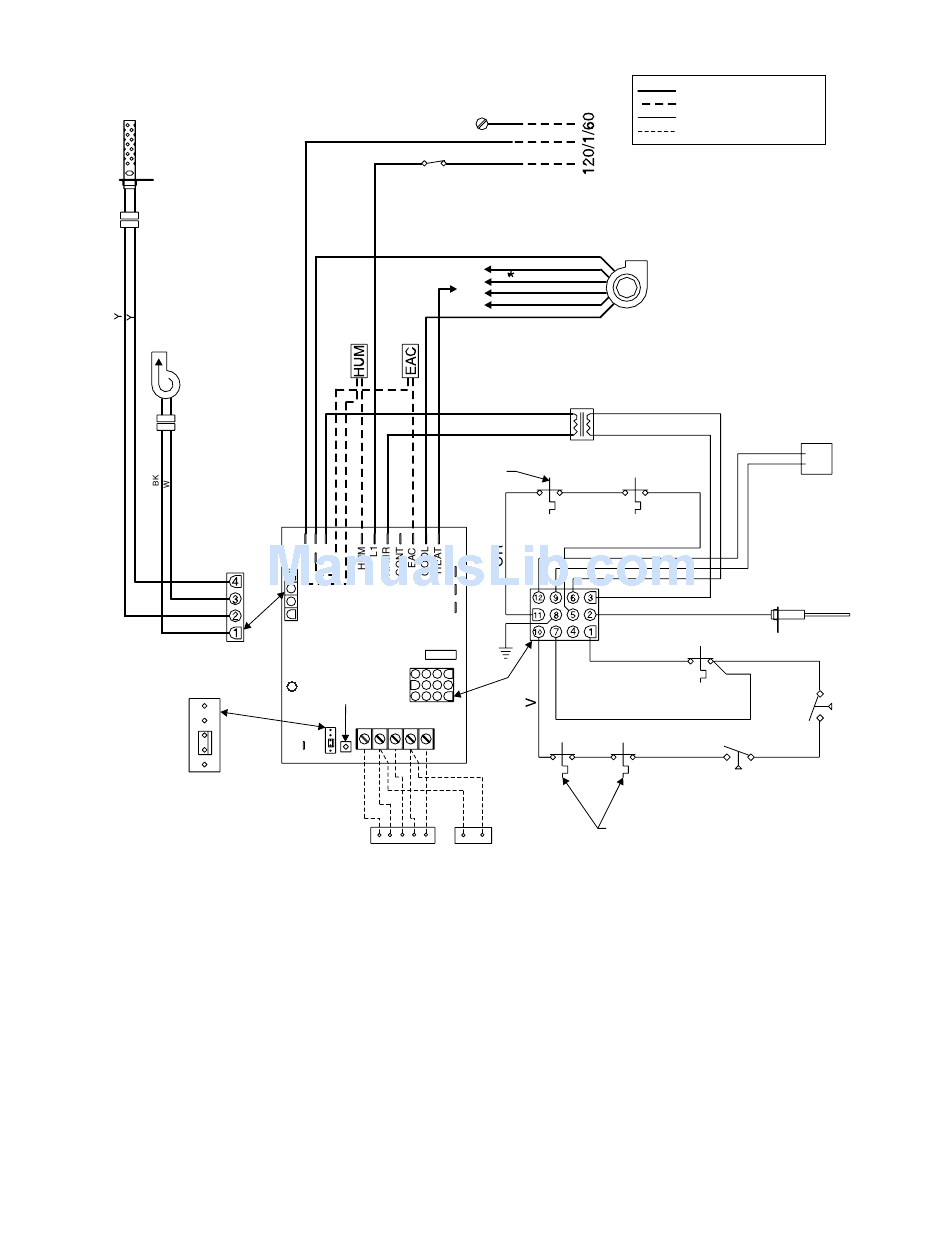

Wiring Connection Diagram—Honeywell
Hot Surface Igniter
Induced
Draft
Blower
Y
W
Y
BK
60
90
120
180
Blower Off
Delay Timing
(See NOTE 3)
Check codes for proper wiring and circuit protection before
installation.
NOTES:
1. Press and release fault code history button to display fault
codes. To erase codes, press and hold button in for more
than 5 seconds.
®
VR 8205 System
Interlock
Switch
BK/W Stripe
If Used
NEUTRALS
PARK
PARK
PARK
5A Fuse
Fault Code
History
Button
(See NOTE 1)
R C W Y G
60
90
120
180
TWIN
SW1
Condenser
Thermostat & Subbase
Heat Anticipator
0.60 Amp
G
W
BK
Circulation
Blower
W (Neutral)
R (Lo)
OR (Med/Lo)
BU (Med)
Y (Med/Hi)
BK (Hi)
*Not on all models
W
Y
Y/BK Stripe
Transformer
OR
OR
Rollout
Rollout
Switch
Switch
GY
W
Limit Switch
BR
V
Aux
Aux
Limit
Limit
Switch
Switch
If Used
2. If any of the original wire as supplied with the furnace must be
replaced, it must be replaced with wiring material having a
temperature rating of at least 194ºF (90ºC).
3. Blower off delay timing is factory set at 120 seconds. To
change, move the jumper to the pins adjacent to the desired
setting.
Line Voltage - Factory
Line Voltage - Field
Low Voltage - Factory
Low Voltage - Field
R
MV
MV
BU
Gas
Control
Valve
Flame
Sensor
High
Pressure
Switch
(if used)
V
V
Pressure
Switch
25
