Page 2: Table Of Contents
10) Preventative Maintenance of the Heater ................13 11) FAQ ............................14 12) Treatment Suggestions ......................17 13) Service Parts .......................... 18 Figure List: 1) Total Assembly of BK17 Heater 2) Plug Panel 3) Powering the Controls 4) Thermostat 5) Thermal Switch and Fuses... -
Page 3: Components

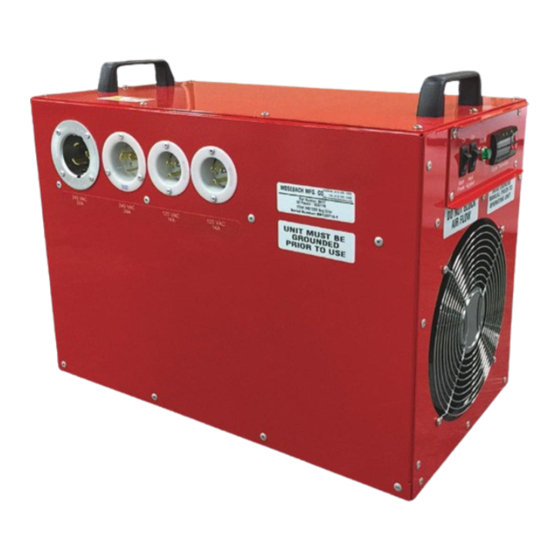

BK17 Heater IMPORTANT INSTRUCTIONS Components 120VAC 240VAC Receptacles Receptacles Lifting Handles Switch Panel Hot Air Exhaust Air Intake Figure 1a Figure 1b Digital Thermostat Figure 1c Ready Light Main Power Resistor Switch Power Switch Total Assembly BK17... -
Page 4: Specifications
Air inlet and outlet are covered by metal screens. Enclosure Heat is discharged horizontally. Environmental 120V, 850CFM fan to bring outside air into the heater. Unit Weight 26 lbs. Dimensions BK17: 17.5” x 22.6” x 12.1” Power Specifications Circuit Number Total Voltage (VAC) Current (Amps) Power (kW) 1.68 1.68... -
Page 5: Safety
BK17 Heater Safety This heater is designed for a variety of loads. Because of this, it is possible that voltages higher that those applied can be present inside the heater and at external connections of the heater. Work on the heater’s internal systems should only be attempted by highly trained technicians and only when power has been disconnected and cannot be reconnected to the unit. -
Page 6: A) Power Connections
BK17 Heater 15) Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. 16) Always plug heater directly into a wall outlet/receptacle. Never use with a re-locatable power tap (outlet/power strip). -
Page 7: D) Exhaust Temperature
BK17 Heater Good air flow keeps the heater cool but can very easily move light debris such as paper, cardboard, and dust with great velocity. Loose materials around the heater, especially near the intake and exhaust, must be secured to prevent movement. Material on the exhaust side may be blown into and injure a bystander. -
Page 8: Operation
BK17 Heater Operation a) Pre-startup 1. Check housekeeping in the operational area and correct all unsafe conditions. Failure to do this may result in debris being blown around and may cause a fire hazard. 2. Position heater so that air will flow freely into the intakes and out of the exhaust port. - Page 9 BK17 Heater Master Plug 120VAC Cord Powering Controls Figure 3. Powering the Controls SET Button Temperature Controls Temperature Figure 4. Thermostat Display 7. The heater will now generate heat until the temperature at the thermostat reaches the desired temperature. The heater will automatically turn the heater elements on and off as required to control to the desired temperature being sensed at the thermocouple(s).
-
Page 10: C) Shutdown
3. Put the Main Power switch in the OFF position. 4. Remove all 120VAC plugs and 240VAC plugs from the heater. 5. Put cables back into the storage box. (Not supplied by Mosebach) 6. Move the unit to storage. Bug Killing Conditions The conditions below represent the recommended run time once the entire area has become fully heated. -
Page 11: Troubleshooting
BK17 Heater Troubleshooting Make sure the master 120V receptacle is powered. Thermostat/Heater Will Ensure Main Power switch is in the ON position. Not Turn On Check for debris preventing fan from turning. Blower will not turn on. Check control fuse (FS1). See Figure 5. -
Page 12: Replacing Fuses
Using a #2 Phillips head screwdriver, remove the 18 screws from the cover panel. Carefully remove the panel from the unit. Service on fuses can then be performed. #10-24 Truss Head Bolt Figure 6. Replacing Fuses Replacing Resistors Consult Mosebach Manufacturing Co. -
Page 13: Preventative Maintenance Of The Heater
BK17 Heater 10) Preventative Maintenance of the Heater 1. Do not use a power washer to clean off the exterior of the unit. It is high voltage electrical equipment. Component Action Frequency Entire Unit Walk around the load bank Check every use... -
Page 14: Faq
Can I use the 120 volt extension cords and the 240 volt extension cords at the same time? The BK17 is designed to use both 120 volts and 240 volts at the same time. What size power cord should I use? It depends on how long the extension cord is. - Page 15 BK17 Heater What size space can be treated with a BK17 Heater? Treatment times will vary depending on the type of construction and the conditions of the treatment area, the objects in the treatment area, and the voltage supplied to the unit.
- Page 16 BK17 Heater I want to use a generator. What kind of generator do you recommend? For our recommended generator, please refer to the BK17 Accessories quote. If you have not received an Accessories quote, contact a Mosebach sales representative. I hear a continuous clicking sound, what’s wrong? Clicking means that there is not enough air being moved through the heater.
-
Page 17: Treatment Suggestions
7. Correct voltages must be applied for the heaters to run properly. The BK17 heaters are rated for 120V and 240V single phase. 8. The starting temperature of the area will affect the time needed to reach temperature. A very cold area will take longer to reach lethal temperatures than a warm one. -
Page 18: Service Parts
10/26/2016 Initial Release 10/18/2016 Rev. Description Rev. By Date Copyright © 2016 Mosebach Manufacturing Company MOSEBACH MANUFACTURING COMPANY 1417 McLaughlin Run Road • Pittsburgh, PA 15241-3103 USA T: 412.220.0237 Customer Care F: 412-220-0236 www.mosebachresistors.com OM-BK17.doc October 18, 2016 “SAVE THESE INSTRUCTIONS”...
