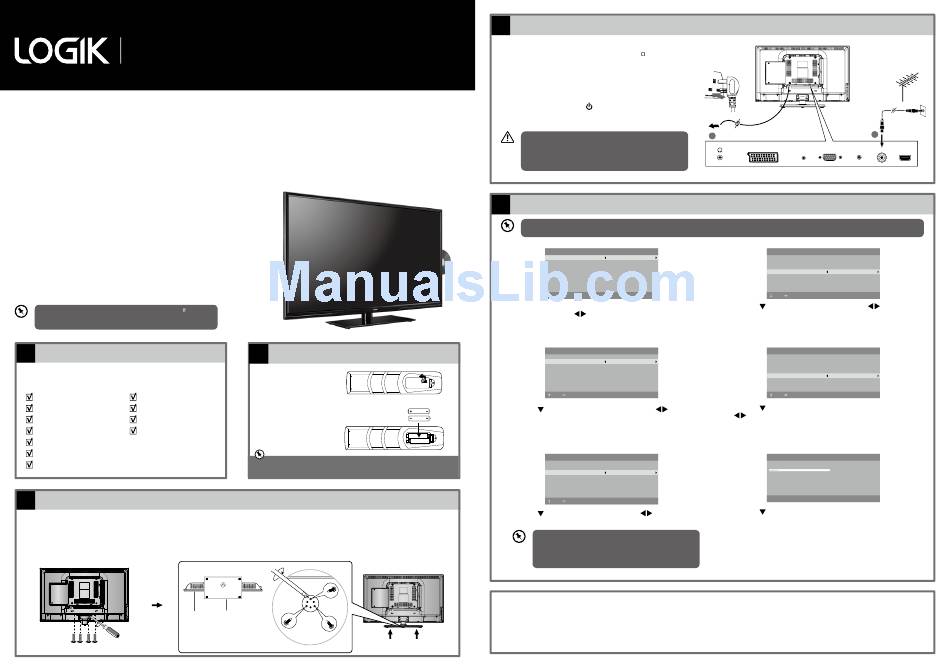

Logik L32HED15 Quick Start Manual

Quick Start Guide
32" LED TV with DVD Player
L32HED15
Thank you
for purchasing your new Logik TV.
Your new TV incorporates the latest technology to enhance your viewing
experience. We would suggest that you allow about 20 mins for initial setup.
Please follow this guide for a successful first time installation.
The latest eco-friendly power-saving technology will switch o the TV if
device is left on and idle for 4 hours. Please refer to "Auto Standby" under
the "Time Settings" section of the instruction manual for more detail.
1

Unpacking

Remove all packaging from the TV. Retain the packaging. If you
dispose of it please do so according to any local regulations.
TV Component Adapter Cable
TV Stand Support Composite Adapter Cable
TV Base Instruction Manual
Remote Control Quick Start Guide
AAA Batteries x 2
Screw A (M4 x 10) x 4
Screw B (PWA x 12) x 3
3

Installing the Base Stand

1. Lay the TV down on a flat surface with the back side facing up, and ideally at the edge of a table so that the base of the TV slightly overhangs on it. Please
make sure a soft cushioned material (such as a pillow or thick piece of foam) is placed beneath the screen.
2. To install the TV stand, first attach the stand support to the TV by using 4 screw A. Align with the screw holes then use 4 screws to fix the stand support to
the TV.
3. To install the base stand, align the screw holes, then secure with a screw driver (not included) using the 3 screw B provided.
TV Front
screw in
Screw A x 4
2

Operating Your Remote Control

1. Press and lift the back
cover to open the
battery compartment of
the remote control.
2. Insert two AAA size
batteries. Close the
battery compartment
cover.
Install the batteries correctly by following the polarity (+ and -) indications in the
battery compartment.
screw in
Base Stand
Front
Screw B x 3
4

Connecting the Aerial and the Mains Socket

1. Connect one end of the RF coaxial cable to the aerial socket on the
wall and the other end of the cable to the RF (75 ) socket at the rear
right side of your TV.
2. Connect the mains cable to the mains socket after you have
completed all the connections.
3. At this stage, the TV switches to standby mode. The red LED indicator
will illuminate on the front panel of the TV.
4. In standby mode, press the button on the rear panel of the TV or
on the remote control to turn the TV on. The red LED indicator will
turn blue.
• Do not connect the TV to the mains supply until you have
completed all the connections.
• If you watch TV using a set-top box, simply connect your TV and
set-top box via a HDMI cable and select HDMI in the Input Source
menu.
5

Turning the TV On for the First Time

If you are going to watch TV using a set-top box, press the EXIT button on the remote control then skip this section. Then press the INPUT button on the remote control
to select HDMI mode.

First Time Setup

OSD Language English
Mode Setting Home Mode
Country UK
Auto Scan DTV
LCN On
Start
Please connect your aerial, change any settings you wish and select Start then
press OK to start tuning.
Move Adjust MENU: Return EXIT: Exit
1. The first time you turn the TV on, it will go straight into the First Time
Setup menu. Press the buttons to select your desired language to
be displayed on the menu. The default on-screen menu language is set
as English.
First Time Setup
OSD Language English
Mode Setting Home Mode
Country UK
Auto Scan DTV
LCN On
Start
Please connect your aerial, change any settings you wish and select Start then
press OK to start tuning.
Move Adjust MENU: Return EXIT: Exit
2. Press the button to select Mode Setting. Press the buttons to
select your desired mode. If select Store Mode, a pop-up menu will be
display. Press the OK button to confirm or press any button to cancel
and return to the Mode Setting menu.
First Time Setup
OSD Language English
Mode Setting Home Mode
Country UK
Auto Scan DTV
LCN On
Start
Please connect your aerial, change any settings you wish and select Start then
press OK to start tuning.
Move Adjust MENU: Return EXIT: Exit
3. Press the button to select Country. Press the buttons to select
the country option.
If you select Ireland as the country where you will operate the TV,
a pop-up screen will be display. You will need a 4-digit activation
code for Irish tuning. This code can be found in-store, on the back of
your receipt (if bought in Ireland), or call the customer service team
/ KNOWHOW.
Well done,
your new TV is now ready to use. You will find that there are many exciting features available. To get to know all these features, please
take some time to read the instruction manual provided with your TV.
If after reading the instruction manual you have additional questions related to the use of your TV please call:
• UK Call Centre on 0344 561 1234. • Ireland Call Center on 1 890 818 575.
OR
RF coaxial cable
(not included)
1
2 To the mains socket
Digital Audio
SCART PC AUDIO IN PC RF
Output (Coaxial)
First Time Setup
OSD Language English
Mode Setting Home Mode
Country UK
Auto Scan DTV
LCN On
Start
Please connect your aerial, change any settings you wish and select Start then
press OK to start tuning.
Move Adjust MENU: Return EXIT: Exit
4. Press the button to select Auto Scan. Press the buttons to
select DTV / ATV / DTV + ATV.
First Time Setup
OSD Language English
Mode Setting Home Mode
Country UK
Auto Scan DTV
LCN On
Start
Please connect your aerial, change any settings you wish and select Start then
press OK to start tuning.
Move Adjust MENU: Return EXIT: Exit
5. Press the button to select LCN (Logical Channel Number). Press the
buttons to select On / Off.
Auto Scan
Scanning CH22
Digital Channels Found:
DTV :0 Radio :0 Data :0
MENU: Stop EXIT: Exit
6. Press the button to select Start and then press the OK button.
Channel tuning will commence. This operation may take up to few
minutes. The display will show the progress of the tuning and the
number of channels found.
(QSG-L32HED15-150409V1)
HDMI1
(ARC)
