Logik L32HED13 Quick Start Manual

Quick Start Guide

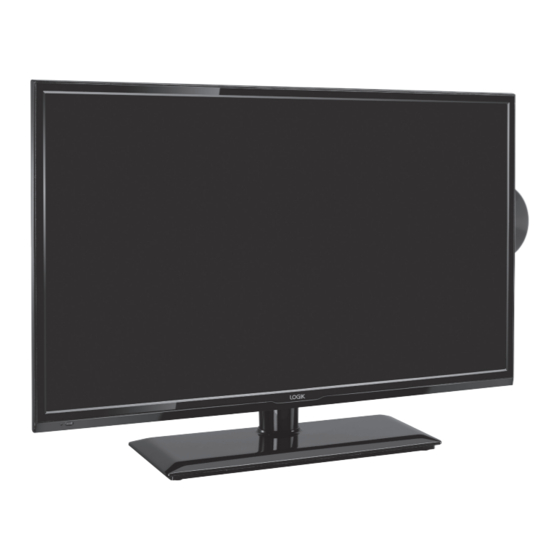

32" HD Ready LED TV
L32HE13
L32HED13
(with DVD Player)
Unpacking
Remove all packaging from the TV. Retain the packaging.
If you dispose of it please do so according to local regulations.
TV
TV Stand
Remote Control/AAA Batteries x 2
Screw x 5
Component Adapter Cable (YPbPr)
Composite Adapter Cable (AV)
Instruction Manual
Operating Your Remote Control
1. Press and lift the back cover to
open the battery compartment
of the remote control.
2. Insert two AAA size batteries.
Make sure to match the (+) and
( - ) ends of the batteries with
the (+) and ( - ) ends indicated
in the battery compartment.
3. Close the battery compartment
cover.
Installing the Base Stand
1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface ideally on the edge of a table so the
base of the TV slightly overhangs the edge of the table, with the back
side facing up. Please make sure a soft cushioned material (such as
a dry bath towel or thick piece of foam) is placed beneath the screen.
3. To install the TV stand, place
the stand into the stand
recess on the back of
the TV.
Table
Cushioned
material
4. Secure the stand using the 5 screws provided.
screw in
Screws x 5
Connecting the Aerial
Connect one end of the RF coaxial cable to the aerial socket on the wall
and the other end of the cable to the AERIAL IN socket at the rear right
bottom view of your TV.
PC
HDMI 1 In HDMI 2 In SCART PC-RGB In RF In
Audio In
Turning On and Tuning In the TV
Please select an OSD Language
English
Please ensure aerial is plugged in!!
Then press OK button to start
Deutsch
1. The first time you turn the TV on, it will go
2. Press the
straight into the First Time Installation menu.
desired language to be displayed on the
menu. The default on-screen menu language
Please ensure the aerial is plugged in and
is set as English. Press the OK button to
then press the OK button.
confirm.
Tune Type DTV
UK Finland Hungary
TV
DTV
Czech France Italy
Radio
Data
Denamrk Germany Netherlands
1 %...
Menu Please press MENU key to skip
3. To select the country option press the 4. Channel tuning will commence. This operation
buttons. Press the OK button
may take up to 10 minutes. The display will
to confirm. show the progress of the tuning and the
number of channels found.
Well done
, your new TV is now ready to use. You will find that there are many exciting features available. To get to know all these features,
please take some time to read the instruction manual provided with your TV.
If after reading the instruction manual you have additional questions related to the use of your TV please call our UK Call Centre on 0844 561 1234.
Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.
Connecting to the Mains Socket
1. Connect the mains cable to the mains socket after you have
completed all the connections.
2. In standby mode, press the
button on the remote control to
turn the TV on. The red LED indicator will turn blue.
Target Region Setting
During tuning your TV may have received
signals from more than one transmitter. If this
Español Français
has occurred the Target Region Setting screen
will be displayed. This will enable you to select
the correct regional transmission for the local
Português Italiano
news service that you require.
1. Press the OK button to confirm the Country
Code, this will highlight the Primary Region
England.
buttons to select your
2. Press the OK button to highlight Secondary
Region and press the
your preferred option (if available).
3. Press the OK button to confirm, and Tertiary
Region will be highlighted. Press the
buttons to select the your preferred option
(if available).
4. Press the OK button to confirm. The main
menu will be briefly displayed.
Channel Tuning
Your TV is now fully tuned in.
: 0 Channel
: 0 Channel
Target Region Setting
: 0 Channel
: 0 Channel Country Code
471.25 MHz (DTV)
Primary Region
Secondary Region
Tertiary Region
QSG-L32HE13_HED13-130411V2
To the mains socket
buttons to select
GBR
England
London
