Akai BSW-3890 User Manual

BSW-3890 User Manual

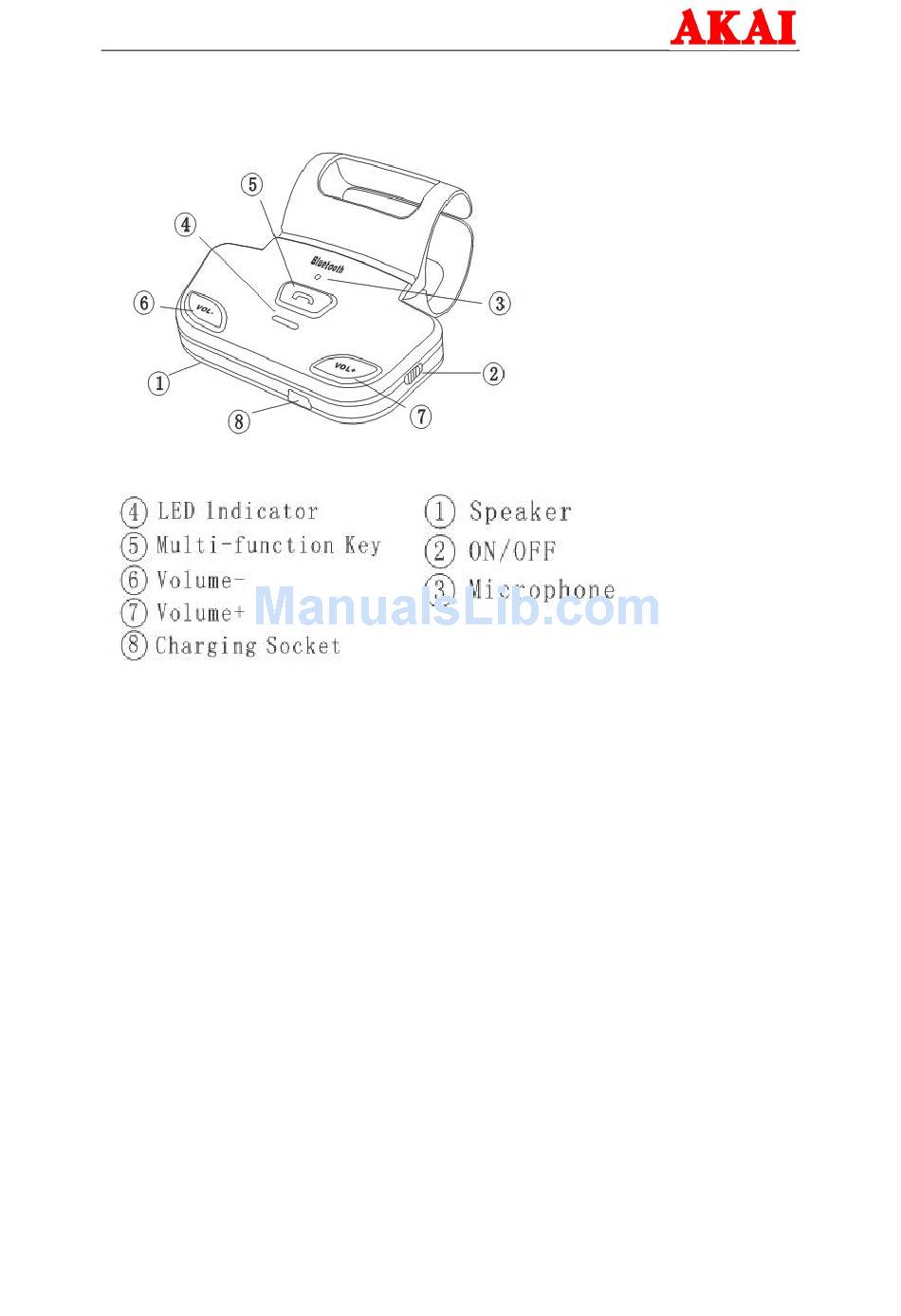

1. Appearance and Functions

Prior using the hands-free function, please match your Bluetooth-enabled mobile phone to the

Speakerphone.This device supports simultaneous dual phones connection.When you are willing to

connect it to only one mobile phone,one time matching step is needed. If to tow mobile phones

simultaneously,tow times matching step is needed.Please follow below steps.

(1)Make sure distance between your Bluetooth-enabled mobile phone and Bluetooth

Speakerphone is less than 1 meter.

(2)Ture on Speakerphone.

(3)Press and hold Multi-function Key for 6 seconds until hearing the indicating beep voice,and

seeing LED indicator flash in red and blue color in turns.Now it's ready for matching, meanwhile

you will hear"Device is ready for matching"

(4)Activate your mobile phone's Bluetooth function to search for Bluetooth device(refer to mobile

phone user's manual)

(5) Select "AKAI BSW-3890"from the list.

(6)Enter

the

pre-programmed

code"0000"and

press"Confirm"button.Speakerphones

will

stand-by,and LED indicator will flash every 3 seconds after a successful matching.

(7)Go to your mobile phone main menu, and make sure speakerphone is placed within 10 meter

near your phone without any obstacles.Now,hands-free function is activated

Note:

Table of Contents

Do you have a question about the BSW-3890 and is the answer not in the manual?

Page 1 LED indicator flash in red and blue color in turns.Now it’s ready for matching, meanwhile you will hear“Device is ready for matching” (4)Activate your mobile phone’s Bluetooth function to search for Bluetooth device(refer to mobile phone user’s manual) (5) Select “AKAI BSW-3890”from the list. (6)Enter pre-programmed code“0000”and press“Confirm”button.Speakerphones...
Page 2 3,Connect Your Mobile Phone to Speakerphone Speakerphone will be in the connected mobe after successfully matched to mobile phone. Before making s call,your mobile phone will show an earphone icon.Please select“AKAI BSW-3890 ” from the list 4,Speakerphone Operation (1)Answer a call When comes a call,Speakerphone will ring and report voice of“Mobile one has a call”...
Page 3 (1)Now please follow phone 1 matching steps until pearing“Phone 1 connected” (2)Once phone 2 successfully matching,please turn on phone 1’s Bluetooth function and select“Connect”when seeing a notice of“Connect to AKAI BSW-3890?”.Now the Speakerphone matches both phone 1 and phone 2 simultaneously.
