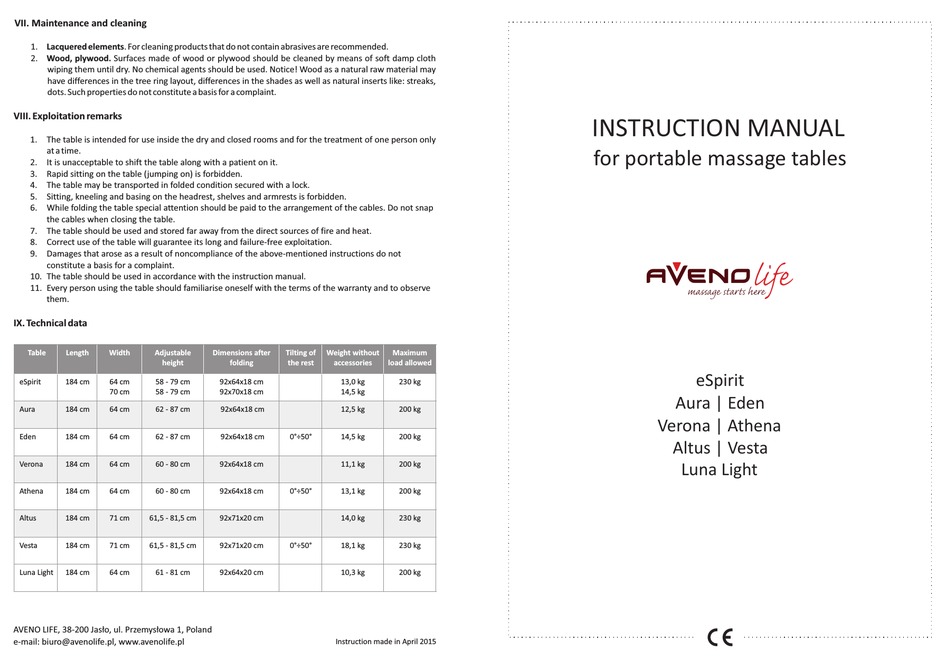

AVENO LIFE eSpirit Instruction Manual

VII. Maintenance and cleaning

1. Lacquered elements. For cleaning products that do not contain abrasives are recommended.
2. Wood, plywood. Surfaces made of wood or plywood should be cleaned by means of soft damp cloth
wiping them until dry. No chemical agents should be used. Notice! Wood as a natural raw material may
have differences in the tree ring layout, differences in the shades as well as natural inserts like: streaks,
dots. Such properties do not constitute a basis for a complaint.

VIII. Exploitation remarks

1. The table is intended for use inside the dry and closed rooms and for the treatment of one person only
at a time.
2. It is unacceptable to shift the table along with a patient on it.
3. Rapid sitting on the table (jumping on) is forbidden.
4. The table may be transported in folded condition secured with a lock.
5. Sitting, kneeling and basing on the headrest, shelves and armrests is forbidden.
6. While folding the table special attention should be paid to the arrangement of the cables. Do not snap
the cables when closing the table.
7. The table should be used and stored far away from the direct sources of fire and heat.
8. Correct use of the table will guarantee its long and failure-free exploitation.
9. Damages that arose as a result of noncompliance of the above-mentioned instructions do not
constitute a basis for a complaint.
10. The table should be used in accordance with the instruction manual.
11. Every person using the table should familiarise oneself with the terms of the warranty and to observe
them.

IX. Technical data

Table Length Width Adjustable
height
eSpirit 184 cm 64 cm 58 - 79 cm
70 cm 58 - 79 cm
Aura 184 cm 64 cm 62 - 87 cm
Eden 184 cm 64 cm 62 - 87 cm
Verona 184 cm 64 cm 60 - 80 cm
Athena 184 cm 64 cm 60 - 80 cm
Altus 184 cm 71 cm 61,5 - 81,5 cm
Vesta 184 cm 71 cm 61,5 - 81,5 cm
Luna Light 184 cm 64 cm 61 - 81 cm
AVENO LIFE, 38-200 Jasło, ul. Przemysłowa 1, Poland
e-mail: biuro@avenolife.pl, www.avenolife.pl
Dimensions after Tilting of Weight without
folding the rest accessories load allowed
92x64x18 cm 13,0 kg
92x70x18 cm 14,5 kg
92x64x18 cm 12,5 kg
92x64x18 cm 0°÷50° 14,5 kg
92x64x18 cm 11,1 kg
92x64x18 cm 0°÷50° 13,1 kg
92x71x20 cm 14,0 kg
92x71x20 cm 0°÷50° 18,1 kg
92x64x20 cm 10,3 kg
Instruction made in April 2015
Maximum
230 kg
200 kg
200 kg
200 kg
200 kg
230 kg
230 kg
200 kg
INSTRUCTION MANUAL
for portable massage tables
maage starts here
eSpirit
Aura | Eden
Verona | Athena
Altus | Vesta
Luna Light
