MD R a n g e O p e r a t o r s H a n d b o o k
Covering
Models:-

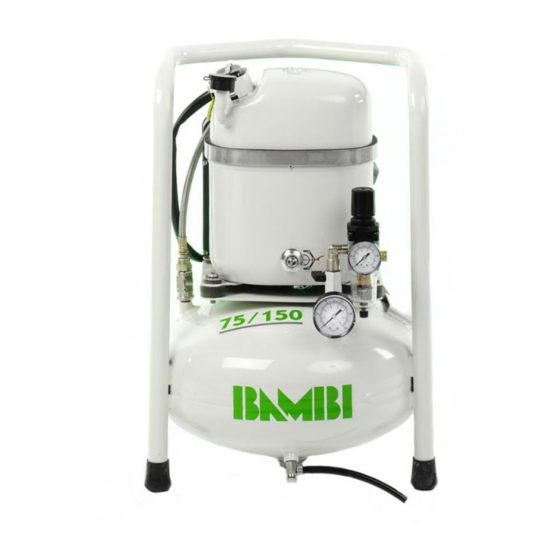

MD35/20
MD75/80
MD75/150
MD75/150V
MD75/250
MD75/250V
MD150/500
MD225/1000
BAMBI AIR COMPRESSORS LTD
152 Thimble Mill Lane
Heartlands
Birmingham
B7 5HT
United Kingdom
Tel: 0121 322 2299
Fax: 0121 322 2297
Email: sales@bambi-air.co.uk
www.bambi-air.co.uk
Advertisement
Table of Contents
Related Manuals for Bambi MD35/20
Summary of Contents for Bambi MD35/20
- Page 1 MD R a n g e O p e r a t o r s H a n d b o o k Covering Models:- MD35/20 MD75/80 MD75/150 MD75/150V MD75/250 MD75/250V MD150/500 MD225/1000 BAMBI AIR COMPRESSORS LTD 152 Thimble Mill Lane Heartlands Birmingham B7 5HT United Kingdom Tel: 0121 322 2299 Fax: 0121 322 2297 Email: sales@bambi-air.co.uk www.bambi-air.co.uk...
-
Page 2: Warranty
Bambi reserves the right to modify the contents of this operating booklet without notice and the information is in no way binding on the company. -
Page 3: Safety Precautions
Safety Precautions Bambi SB42/46 compressor oil does not contain hazardous components and is not required to be labelled dangerous, What you must do according to the Classification, • Read these instructions before using Packaging and Labelling of Dangerous your air compressor. -
Page 4: Operation
Operation Refer to exploded parts diagrams and illustrations when reading this section. Oil level Your Bambi compressor is shipped without oil for transit. Before use you must fill the motor to the correct level. Model 35/20 • Remove oil filler plug - see fig 1 •... -
Page 5: Routine Maintenance
Routine Maintenance Draining the Air Receiver Drain condensate from air receiver at a pressure of no more than 2 Bar. Slowly open the drain tap provided to allow water to flow out – see figs 7 & 8. Close drain tap when all water has drained off. Do not overtighten, this will damage the tap seal. -
Page 6: Preventative Maintenance
Preventative Maintenance Operation Daily Weekly Monthly Annually Drain air receiver < 15 Litres • Drain air receiver > 15 Litres • Drain filter regulator • Check oil level • Change oil • Replace air intake filter • Replace filter regulator element •... -
Page 7: Wiring Diagram
Wiring Diagram 75 Pump unit Wiring Diagram 35 Pump unit BLACK BLACK BROWN Capacitor Start relay Overload protector BLUE To pressure switch BLACK... - Page 8 MD35/20 Ref No. Description Part no. Ref No. Description Part no. 4 litre vessel BPB1094 Non-return valve BPB1086 Filter regulator BPB1080 1/4”Male / 1/4” Male adaptor BPB1078 Regulator gauge BPB1077 1/4” Drain tap BPB1138 1/4” Male/Female elbow BPB1139 Pressure switch...
- Page 9 MD75/80 Ref No. Description Part no. Ref No. Description Part no. 8 litre vessel BPB1100 1/4”Male/Female elbow BPB1139 Black round tube insert BPB0076 On/off valve BPB1079 235mm Nylon syphon tube BPB0028 1/4” Male/Male/Female tee BPB1095 Inspection plug seal BPB0502 Filter regulator BPB1080 Inspection plug BPB0255...
- Page 10 MD75/150 Ref No. Description Part no. Ref No. Description Part no. 15 litre vessel BPB1099b Filter regulator BPB1080 140mm wheel BPB1144 Regulator gauge BPB1077 Starlock washer BPB1091 Vessel pressure gauge BPB1081 Inspection plug BPB0243 1/4” Extension BPB0152 Inspection plug seal BPB0502 Drain tap BPB1138...
- Page 11 MD 75/150V Ref No. Description Part no. Ref No. Description Part no. 15 litre vessel BPB1099 Vessel pressure gauge BPB1081 Non-return valve BPB1086 1/4” Male/Male/Female Tee piece BPB1095 500mm delivery pipe BPB1087a Drain tap BPB1138 Pressure switch BPB1074 250mm drain tube BPB0414 1/4”...
- Page 12 MD75/250 Ref No. Description Part no. Ref No. Description Part no. 24 litre vessel BPB1088b 1/4” Male / 1/4” Male adaptor BPB1078 Inspection plug seal BPB0502 On/off valve BPB1079 Inspection plug BPB0243 Filter regulator BPB1080 200mm Delivery pipe BPB1102 Regulator gauge BPB1077 Non-return valve BPB1086...
- Page 13 MD 75/250V Ref No. Description Part no. Ref No. Description Part no. 24 litre vessel BPB1088 Drain tap BPB1138 Non-return valve BPB1086 250mm drain tube BPB0414 500mm Delivery pipe BPB1087a Rubber foot BPB0247 Pressure switch BPB1074 Inspection plug seal BPB0502 1/4”...
- Page 14 MD150/500 Ref No. Description Part no. Ref No. Description Part no. 50 litre vessel BPB1097 Siphon tube BPB0034 Inspection plug BPB0243 Pressure switch BPB1074 Inspection plug seal BPB0502 1/4” Male / 1/4” Male adaptor BPB1078 300mm Delivery pipe BPB1087 On/off valve BPB1079 1/4”...
- Page 15 MD225/1000 Ref No. Description Part no. Ref No. Description Part no. 100 litre vessel BPB1105 Drain tap BPB1138 Inspection plug BPB0243 250mm Drain tube BPB0414 Inspection plug seal BPB0502 Siphon tube BPB0035 300mm Delivery pipe BPB1087 Pressure switch BPB1074 1/4” Male/Male/Female tee BPB1095 1/4”...
- Page 16 Ref No. Description Part no. Motor / Pump Parts: Mounting set BPB1008 75 model Bottom casing BPB1011 Large rubber gasket BPB1007 Closing ring BPB1005 Bearing bolt BPB1025 Mounting spring BPB1038a Delivery gasket BPB1026 Delivery mufflers BPB1128 Pressure pipe BPB0132 Pressure pipe bolt BPB1027 Pressure pipe horse shoe BPB0108...
- Page 17 Ref No. Description Part no. Motor / Pump Parts: Oil filler plug BPB0079 35 model Oil filler plug seal BPB0098 Top casing BPB1058 Closing ring BPB1059 Sealing gasket BPB1057 Air intake filter BPB1003 Capacitor - 220/240v BPB1051 Capacitor - 110v BPB0137 Terminal box cover BPB1047...
- Page 18 Fig 1 Fig 2 Fig 3 Fig 4 “Click” Fig 5...
- Page 19 Fig 6 Fig 7 “Click” Fig 8 Fig 9 Fig 6...
- Page 20 Issue 1: 11/06...
