Caution: Disconnect the TREK 360 power and place the power switch on the rear
of the unit in the OFF position before beginning the replacement.

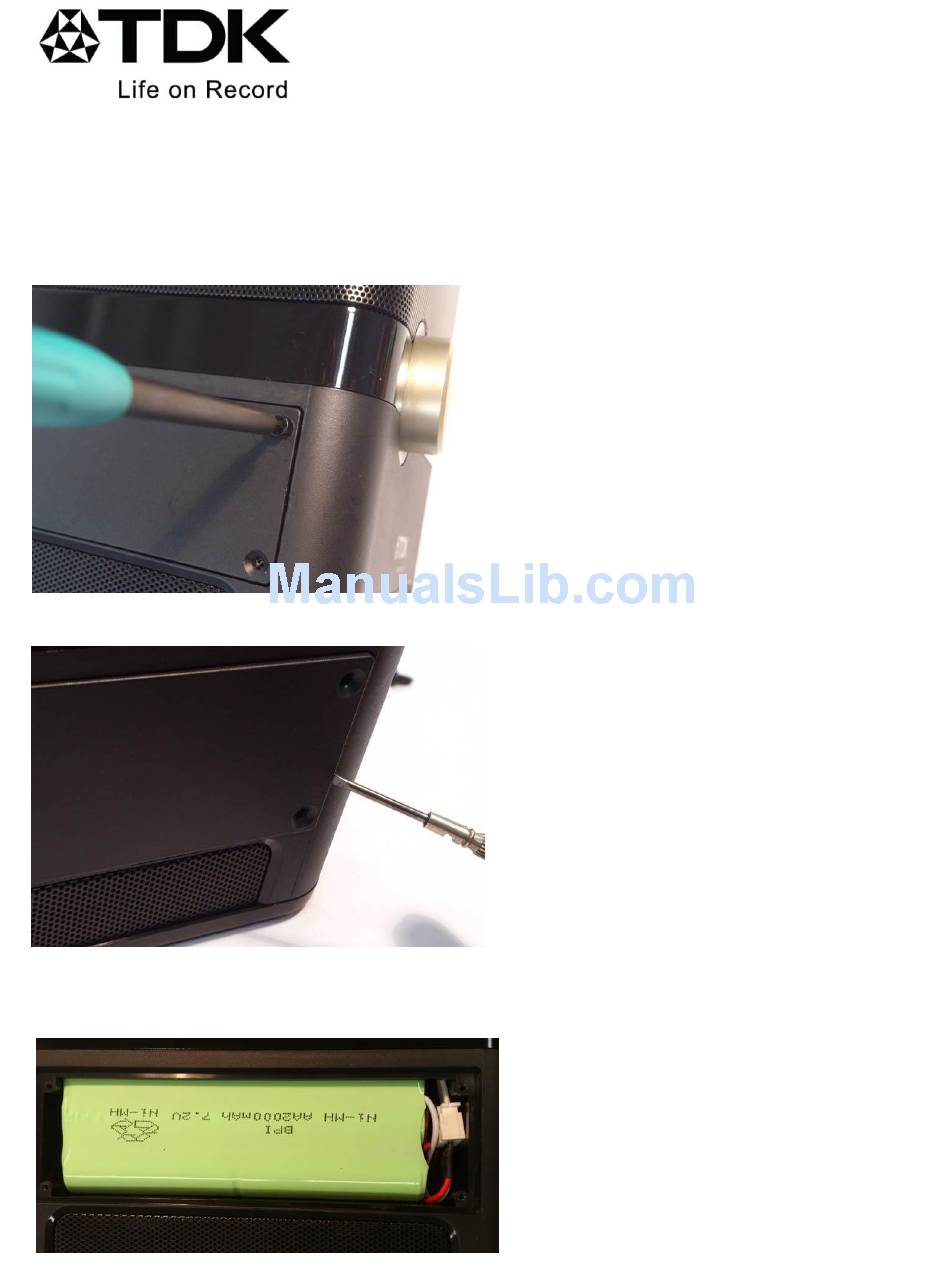

TREK 360 Battery Replacement Instructions
1. Place the unit on its left side. Using a
T-5 Torx driver, remove the four screws
holding the battery cover plate.
2. Place the unit upright. With a
jeweler's screwdriver or a tweezers,
carefully pry out the battery cover
plate.
3. The battery compartment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TREK 360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TDK TREK 360

Summary of Contents for TDK TREK 360

  • Page 1 TREK 360 Battery Replacement Instructions Caution: Disconnect the TREK 360 power and place the power switch on the rear of the unit in the OFF position before beginning the replacement. 1. Place the unit on its left side. Using a T-5 Torx driver, remove the four screws holding the battery cover plate.
  • Page 2 4. Using a screw driver, lift on the lower corner of the battery assembly and rotate upwards. The battery will not lift straight up. 5. Lift the battery out. 6. Using fingers or a needle nosed pliers, unplug the connector.
  • Page 3 7. Remove the old battery and insert the replacement. 8. Plug in the connector, press the cable in place and replace the battery cover. 9. Reinstall the four retaining screws. Proper disposal of the old battery is essential from an environmental and safety point of view.
