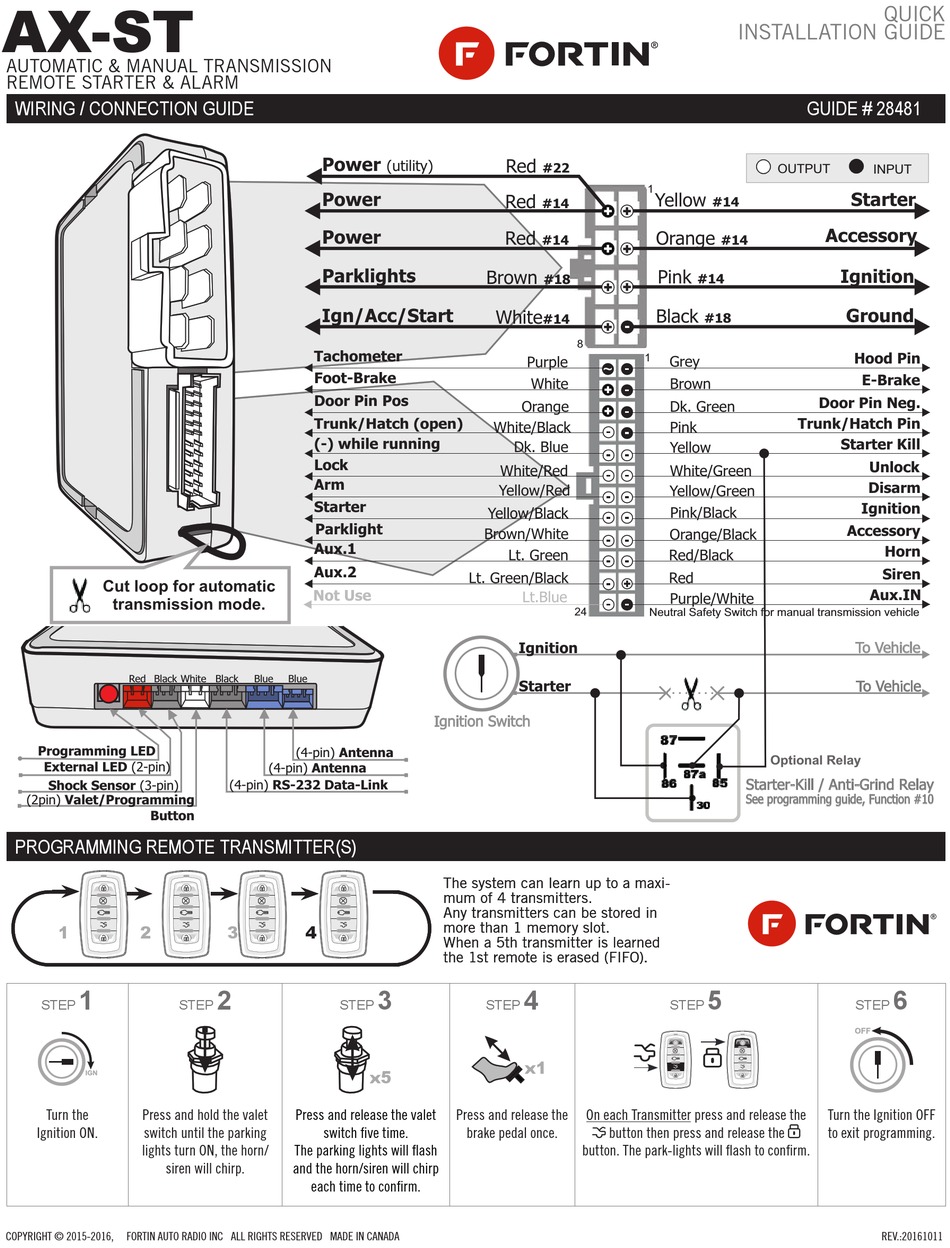

Fortin AX-ST Quick Installation Manual

AX-ST
E400
AUTOMATIC & MANUAL TRANSMISSION
REMOTE STARTER & ALARM
WIRING / CONNECTION GUIDE WIRING / CONNECTION GUIDE
Cut loop for automatic
transmission mode.
Red Black White Black
Programming LED
External LED (2-pin)
Shock Sensor (3-pin)
(2pin) Valet/Programming
Button
PROGRAMMING REMOTE TRANSMITTER(S) PROGRAMMING REMOTE TRANSMITTER(S)
1 2
1
STEP STEP
Turn the Press and hold the valet
Ignition ON. switch until the parking
lights turn ON, the horn/
siren will chirp.
COPYRIGHT © 2015-2016, FORTIN AUTO RADIO INC ALL RIGHTS RESERVED MADE IN CANADA
Power
(utility)
Power
Power
Parklights
Ign/Acc/Start
Tachometer
Foot-Brake
Door Pin Pos
Trunk/Hatch (open)
(-) while running
Lock
Arm
Starter
Parklight
Aux.1
Aux.2
Not Use
Blue Blue
(4-pin) Antenna
(4-pin) Antenna
(4-pin) RS-232 Data-Link
3 4
2 3
STEP
x5
Press and release the valet
switch ve time.
The parking lights will ash
and the horn/siren will chirp
each time to con rm.
Red
#22
Red
#14
Red
#14
Brown
#18
White
#14
8
Purple
~
White
Orange
White/Black
Dk. Blue
ONE
White/Red
Yellow/Red
Yellow/Black
Brown/White
Lt. Green
Lt. Green/Black
ONE
Lt.Blue
24
Ignition
Starter
Ignition Switch
The system can learn up to a maxi- The system can learn up to a maxi-
mum of 4 transmitters. mum of 4 transmitters.
Any transmitters can be stored in Any transmitters can be stored in
more than 1 memory slot. more than 1 memory slot.
When a 5th transmitter is learned When a 5th transmitter is learned
the 1st remote is erased (FIFO). the 1st remote is erased (FIFO).
4
STEP
x1
Press and release the On each Transmitter press and release the
brake pedal once. button then press and release the
button. The park-lights will ash to con rm.

INSTALLATION GUIDE

GUIDE # 28481
OUTPUT
1
Yellow
#14
Orange
#14
Pink
#14
Black
#18
1
Grey
Brown
Door Pin Neg.
Dk. Green
Trunk/Hatch Pin
Pink
Yellow
White/Green
Yellow/Green
Pink/Black
Orange/Black
Red/Black
Red
Purple/White
Neutral Safety Switch for manual transmission vehicle
Optional Relay
Starter-Kill / Anti-Grind Relay
See programming guide, Function #10
5
STEP
QUICK
RF751W
INPUT
Starter
Accessory
Ignition
Ground
Hood Pin
E-Brake
Starter Kill
Unlock
Disarm
Ignition
Accessory
Horn
Siren
Aux.IN
To Vehicle
To Vehicle
6
STEP
Turn the Ignition OFF
to exit programming.
REV.:20161011
