- Page 1 2-Bay 4-Hour 9V Charger Rapid Charger for AA/AAA NiMH & Ni-Cd for 9V NiMH Rechargeable Batteries Rechargeable Batteries Owner's Owner's Manual Manual Please read Please read before using before using this equipment. this equipment.

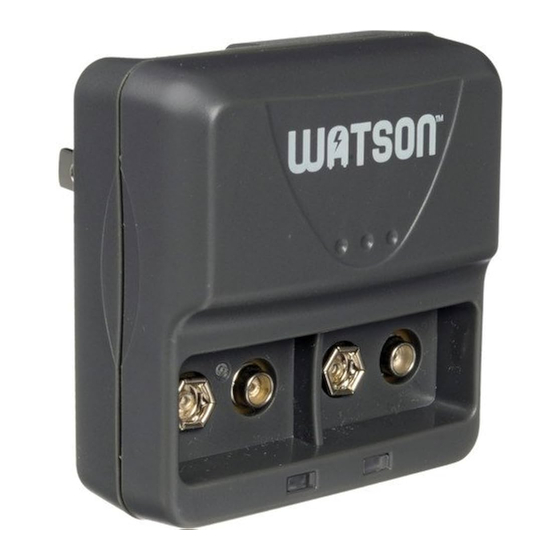

- Page 3 Thank you for purchasing the Watson 2-Bay 9V Battery Charger. Browse through this manual for information and useful tips on how to use your new equipment. >...
- Page 4 THE WATSON 2-BAY 9V BATTERY CHARGER'S FEATURES INCLUDE: Powered by an internal AC adapter with compact fold-in outlet prongs for indoor use. Multiple charging circuits allows you to charge one or two 9V size nickel- metal hydride batteries. A special circuit senses when the battery is fully charged and automatically stops charging.
- Page 5 A safety timer shutoff turns off the charger to prevent overcharging batteries. Short-circuiting protection protects the charger and batteries from short circuits. Over-current protection protects the charger from defective or shorted batteries. Charger Features | 5...
- Page 6 CHARGING OPERATION 9V BATTERIES: Insert 1 or 2 9V NiMH batteries into battery slots, oriented according to the polarity symbols (+ or -) that are marked on the battery. Pull out the flat AC plug 90 degrees, and plug it into an electrical outlet matching the input specification shown in this manual.
- Page 7 There are two independent charging channels and respective LED indicators. When charging is complete, the LED indicator will turn green. The batteries with green LED indicators are ready for use. When you are finished charging the batteries, remove the flat AC plug from the AC outlet.
-
Page 8: Charging Times
CHARGING TIMES (approximate) Capacity NiMH Charging Time 160 mAh 100 min. 200 mAh 140 min. 250 mAh 170 min. *Actual charging times may vary depending on the cell's discharge level, capacity, and condition. Longer charging time may occur when the charger is used in temperatures above 95°F (35°C). - Page 9 Charging Time | 9...
-
Page 10: Specifications
SPECIFICATIONS: Input 100~240 V AC, Power Adapter: 50/60 Hz; 3.8 W (Max) 90 mA ± 20 mA Charging Current: Safety Guard Timer: 6 hrs. Negative Delta V and Automatic Shutoff: Zero Slope Detection 32-104°F (0-40°C) Operating Temp: Output: 1.5 V DC / 500 mA Dimensions: 2.6 x 2.5 x 1.2 in. - Page 11 GENERAL CHARGING HINTS: • It is normal for the batteries to become warm while charging. • Charge batteries in temperatures between 32°F and 104°F (0°C and 40°C). Cold batteries cannot charge fully. If they are too warm, the batteries can lose their capacity to recharge.
-
Page 12: Important Safety Instructions
• Do not use any attachment not recommended or sold by Watson, as this could result in the risk of fire, electric shock, or injury. 12 | Safety Instructions... - Page 13 CAUTION! TO REDUCE THE RISK OF DAMAGE: • Do not use an extension cord. Its use could result in fire or electric shock. • Do not operate the charger if it has received a sharp blow or has been dropped or damaged in any way. Take it to a qualified service technician for repair.
- Page 14 WARNING: To reduce the risk of fire or shock hazard, do not expose this product to rain or moisture. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT REMOVE COVER OR BACK. NO USER- SERVICEABLE PARTS INSIDE. HAVE PRODUCT SERVICED BY QUALIFIED PERSONNEL ONLY TO REDUCE THE RISK OF ELECTRIC SHOCK.
- Page 15 ONE-YEAR LIMITED WARRANTY This Watson product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty...
