The FP1 Connector

FP1

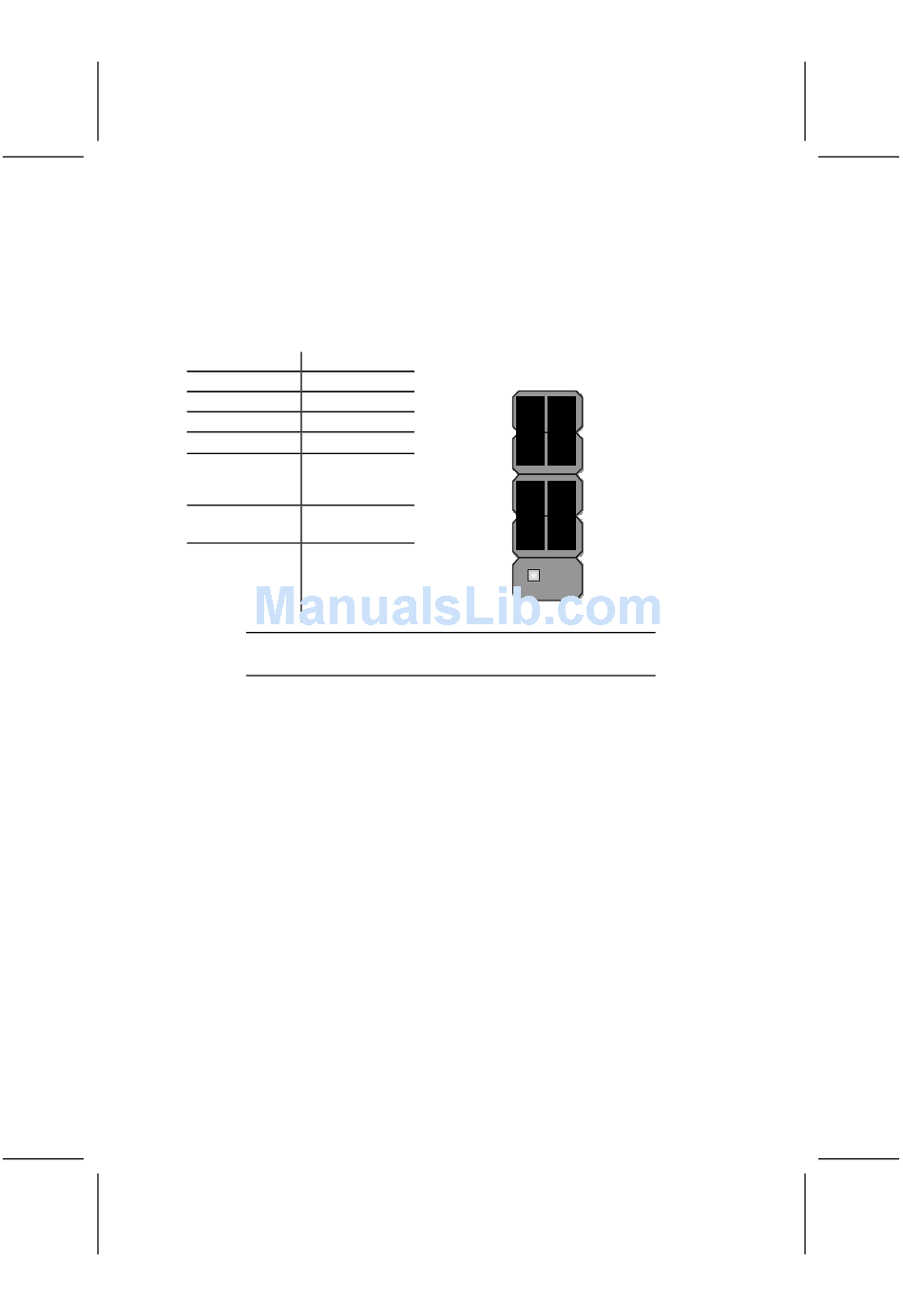

This panel connector provides a set of switch and LED connectors
found on ATX case. Refer to the table below for information.
Device Pins
Empty 10
N/C 9
Power ON/OFF 6, 8
Reset Switch 5, 7
Power ACPI 2, 4
LED
HDD LED 1, 3
Note: The plus sign (+) indicates a pin which must be con-
nected to a positive voltage.
1 2
HDD LED
Power/ACPI LED
(Pin 1, 3)
(Pin 2, 4)
Reset Switch
(Pins 5, 7)
Power Button
(Pins 6, 8)
9 10
