CHECKING
1) Terminal wiring: Check that all cables are correctly connected according to the connection diagram.
2) DIP SW setting: Check that the switches are set to appropriate positions.
3) Power input voltage: Check voltage across the terminal 11 – 12 with a multimeter.
4) Input: Check that the input signal is within 0 – 100% of full-scale.
5) Output: Check that the load resistance meets the described specifications.
I/O RANGING & FINE ADJUSTMENTS
After the DIP SW setting is complete, set up the precise input and output range using the front control buttons.
The front LEDs' colors and flashing patterns help you to easily identify the transmitter's status and confirm the setup actions
in each step of Calibration Modes. Please read the following explanations referring to "Calibration Flow Chart" below.

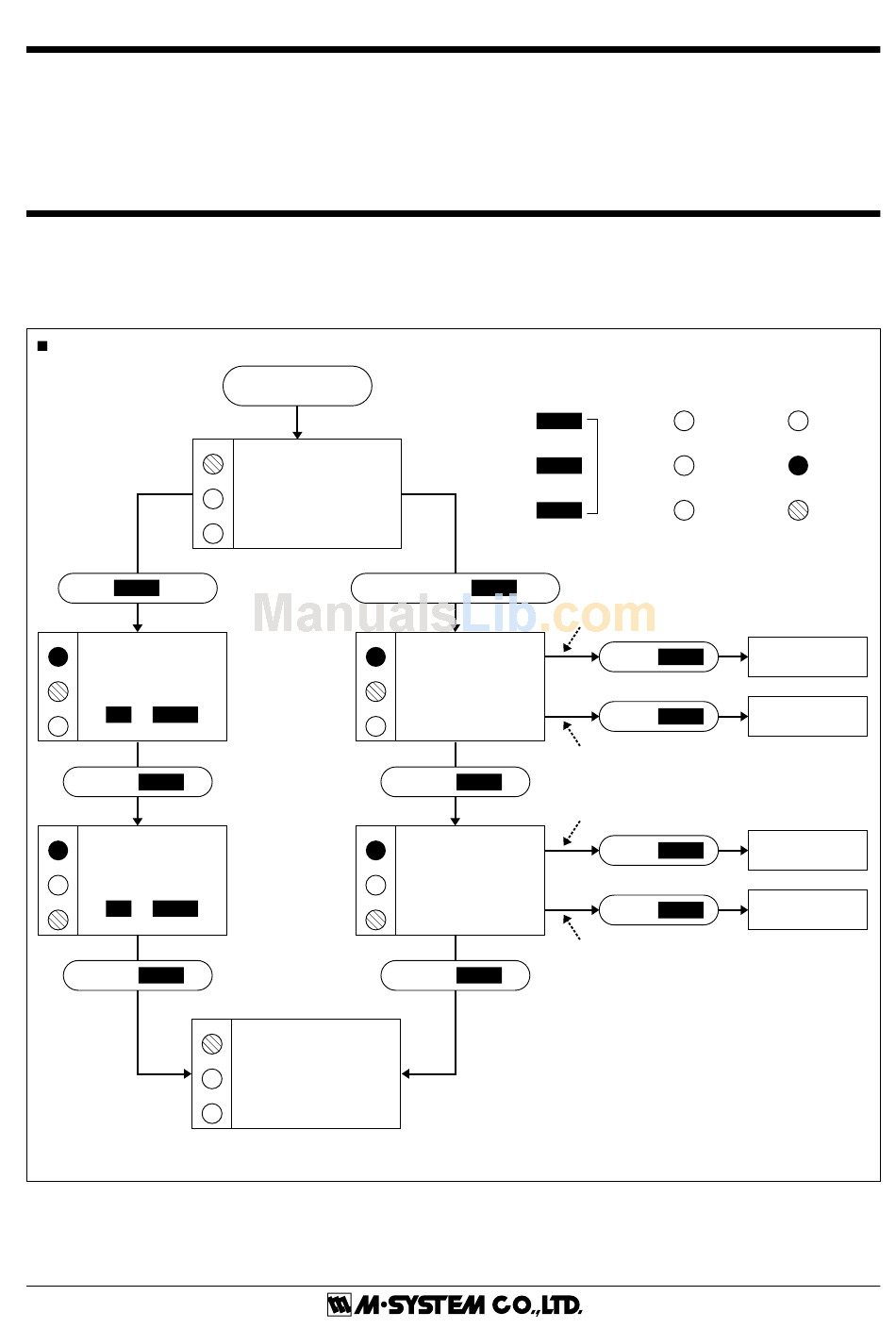

CALIBRATION FLOW CHART
Fine Adjustments ?
PUSH
1 – 2 s
MODE
LD1
R
FINE ZERO
LD2
CALIBRATION MODE
G
LD3
or
UP
DOWN
PUSH
MODE
LD1
R
FINE SPAN
LD2
CALIBRATION MODE
LD3
or
UP
DOWN
G
PUSH
MODE
*1. Fine zero and calibrations are performed for 0% and 100% output regardless of the input value.
POWER ON
LD1
G
LD2
RUN MODE
LD3
G
PRESS & HOLD
1
*
LD1
R
LD2
R
LD3
1
*
LD1
R
LD2
LD3
R
LD1
G
LD2
RUN MODE
LD3
MODE
UP
I/O Ranging ?
DOWN
> 5s
MODE
Apply simulated 0% input signal.
INPUT
CALIBRATION
MODE
Apply simulated 100% input signal.
PUSH
MODE
Adjust simulated input until the output meter
shows desired 0% output.
OUTPUT
CALIBRATION
MODE
Adjust simulated input until the output meter
shows desired 100% output.
PUSH
MODE
When you set 0% or 100% input/output ranges,
keep pressing UP or DOWN button until the
LD1 flashes for approx. 2 seconds and turns off,
which indicates the setup is complete.
When you release the button, the LD1 is returned
to ON.
If the LED does not change, the entered level may
be inappropriate, i.e. out of usable range.
Amber LED
A
Control
G
Green LED
Buttons
R
Red LED
PUSH
DOWN
CONFIGURED
100% INPUT
PUSH
UP
CONFIGURED
0% OUTPUT
PUSH
DOWN
CONFIGURED
100% OUTPUT
PUSH
UP
CONFIGURED
P. 4 / 6
M3LDY
OFF
ON
Blink
0% INPUT
EM-2664 Rev.2
