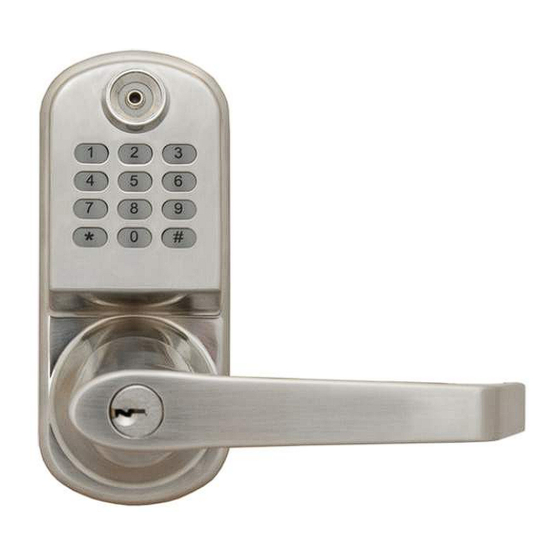

LockState ResortLock LS-RL2000 Installation & User Manual

®
Installation & User
Manual
For use with ResortLock® RL2000 and LockState® LS-1250
Major Lock Parts List
Installation Instructions
Step 1 Step 2
Insert the latch into the latch Insert the square spindle (A) into the center hub
(B). Then secure the spindle by inserting the
hole. Secure the latch with two
screws. position pin (C) through the hole in the hub &
spindle. Bend the ends of the pin around the hub
to secure.
Step 3 Step 4
Screw in and tighten both fastener Place the front of the lock onto the door
extensions (D). Attach and tighten
with the rubber gasket (F) between the
optional upper fastener post (E) if door and the lock housing. Feed the
needed. Upper post is recommended power cable (G) through the door hole.
but not required.
Step 5 Step 6
Attach the battery plate on the inside Install 4 AA batteries and plug in the
door with the rubber gasket between the power cable (G). Secure the back lock
housing onto the battery plate with the
door and battery plate. Feed the power
plug through the small rectangular hole upper and lower screws. Press both
catch pins in and snap the rear handle
on the plate. Secure the battery plate to
front lock fastener posts with 2 screws. onto drive shaft.
G
Front Handle & Key Installation
1. Ensure that the key override slot 2. Slide the key cylinder into the
is in the horrizontal position. back of the handle.
3. Insert the key into the key cylin- 4. Slide the handle onto the brass
der from the front of the handle
drive shaft until it hits the catch
and turn 90 clockwise. pins.
6. Turn key back to the left and
5. Press in both catch pins and snap
handle over pins. remove the key from the key
cylinder.
