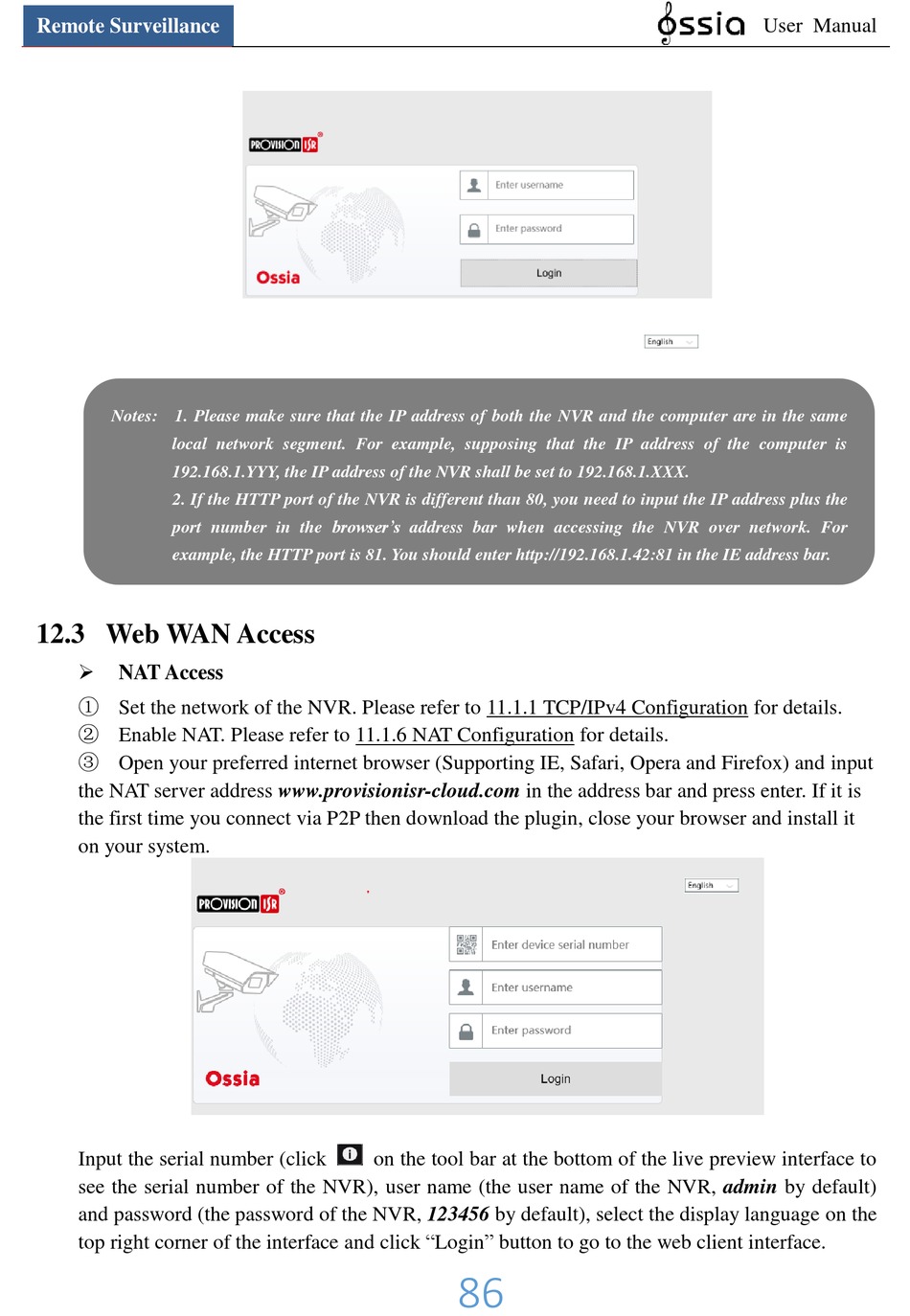

Web Wan Access - Provision ISR Ossia NVR5 Series User Manual

Remote Surveillance
Notes: 1. Please make sure that the IP address of both the NVR and the computer are in the same
local network segment. For example, supposing that the IP address of the computer is
192.168.1.YYY, the IP address of the NVR shall be set to 192.168.1.XXX.
2. If the HTTP port of the NVR is different than 80, you need to input the IP address plus the
port number in the browser's address bar when accessing the NVR over network. For
example, the HTTP port is 81. You should enter http://192.168.1.42:81 in the IE address bar.

12.3 Web WAN Access


NAT Access
① Set the network of the NVR. Please refer to 11.1.1 TCP/IPv4 Configuration for details.
② Enable NAT. Please refer to 11.1.6 NAT Configuration for details.
③ Open your preferred internet browser (Supporting IE, Safari, Opera and Firefox) and input
the NAT server address www.provisionisr-cloud.com in the address bar and press enter. If it is
the first time you connect via P2P then download the plugin, close your browser and install it
on your system.
Input the serial number (click
see the serial number of the NVR), user name (the user name of the NVR, admin by default)
and password (the password of the NVR, 123456 by default), select the display language on the
top right corner of the interface and click "Login" button to go to the web client interface.
on the tool bar at the bottom of the live preview interface to
86
User Manual
