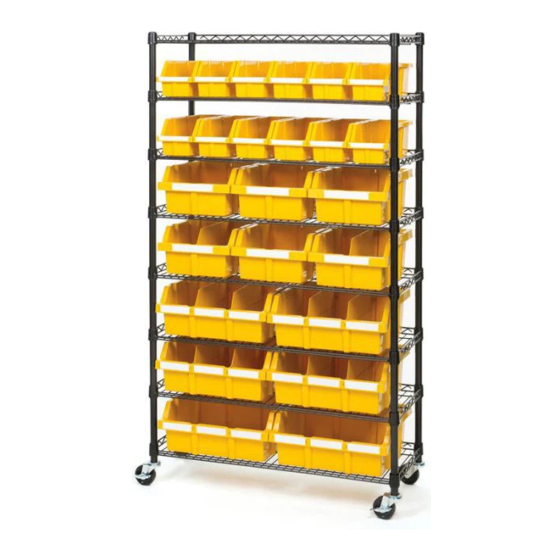

Seville Classics SHE16508BB Assembly Instruction

#16508
A-4 pcs
Poles
E-24 pcs
Storage Bins
12 pcs 6 pcs
ASSEMBLY INSTRUCTION-BIN RACK
B-33 pairs
Slip Sleeves
6 pcs
Step 1
Screw the top and bottom pole(A)together.
1
Step 2
Screw the wheels(C)into the bottom end of each pole.
2
Step 3
Starting at the bottom,fasten a pair of slip sleeves(B)
around the groove of each pole. If necessary ,move the
sleeves slightly up or down until it "snaps"into place.
3
Step 4
Slide the shelf(D)over the top of the 4 poles until it
rests snugly over the sleeves. Repeat for 6 other shelves(D).
Tip :If necessary ,use a rubber mallet to further secure
the shelf.
4
C-2 pair
Wheels
F-36 pcs
Bin labels
D-8 pcs
Shelves
G-10 pcs
Dividers
