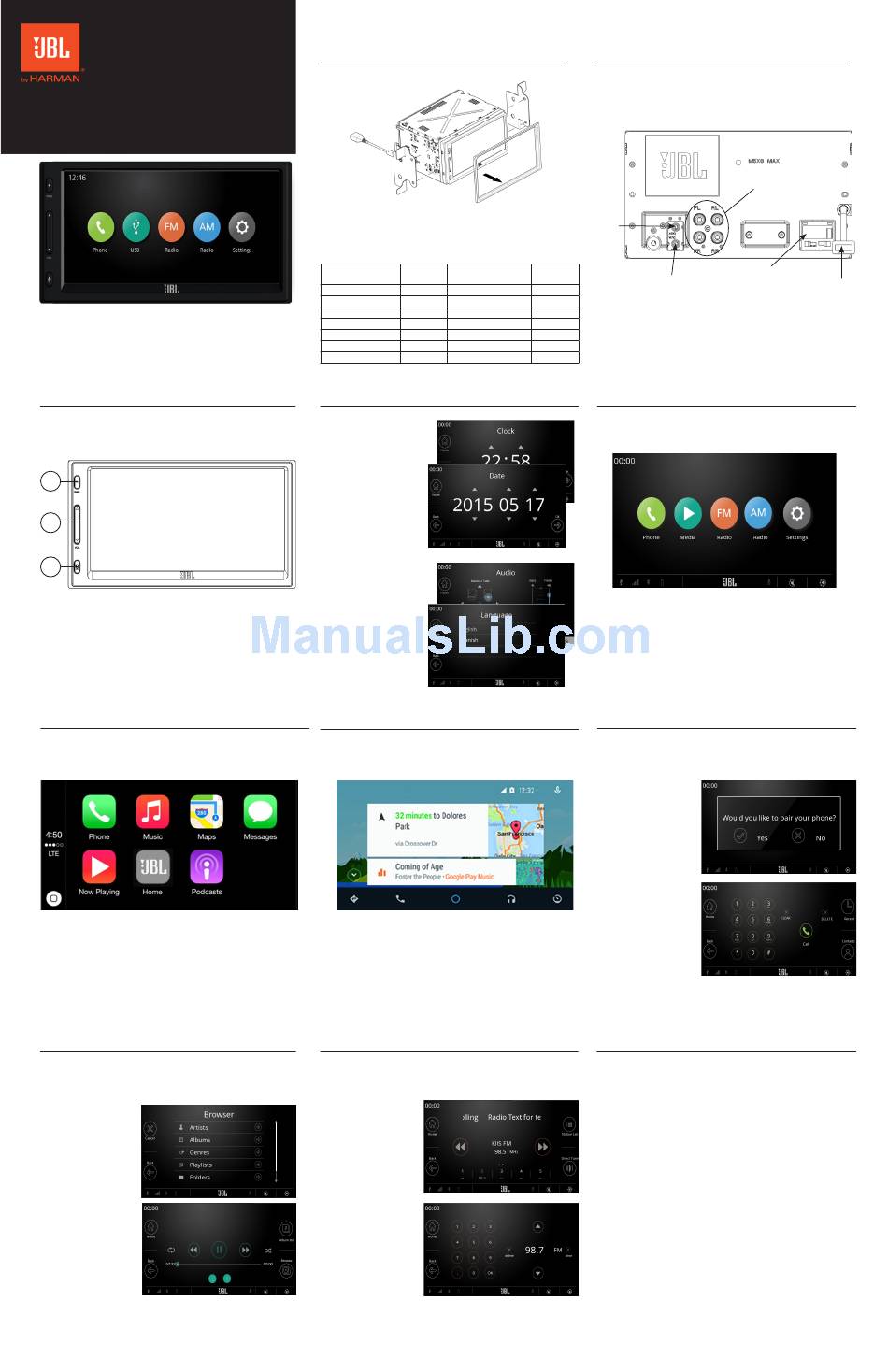

JBL Legend CP100 Quick Start Manual

JBL Legend CP100
smartphone receiver
This quick start guide will introduce you to the
basics of the JBL Legend CP100 smartphone
receiver. Please refer to your owner's manual for a
more in-depth look at installation and functions.
JBL Legend CP100
Quick Start Guide
3
. Front-panel buttons
1
2
3
1. Power button turns the receiver on and off
2. Volume button paises and lowers the volume level
3. Push-to-talk button lets you engage Android Auto™ and
Apple CarPlay voice control functions
®
JBL Legend CP100
Quick Start Guide
6
. Using Apple CarPlay
To engage Apple CarPlay, you simply need to plug your
compatible iPhone 5 or iPhone 6 into the USB input and tap
the Apple CarPlay button that appears on the home screen.
From there, you can use the touchscreen or your voice to
control select Apple apps.
Tap the JBL icon to return to the home screen.
JBL Legend CP100
Quick Start Guide
9
. Playing music via USB
To play digital music
stored on a USB
thumb drive, plug
the drive into the
USB port, and tap
the "Media" button.
You can then
browse your music
by artist, album,
genre, and playlist.
JBL Legend CP100
Quick Start Guide
1
. Installation
To install the Legend CP100, you'll need to buy or
fabricate a vehicle-specific mounting bracket.
Wiring connection guide
Function Wire color Function
ACC power Front left speaker +
Red
Constant power Front left speaker –
Yellow
Ground Black Front right speaker + Gray
12v out Yellow/black Front right speaker – Gray/black
Rear left speaker +
Parking brake Light green Rear left speaker –
Reverse signal Violet/white Rear right speaker + Violet
Optional rear camera Yellow RCA Rear right speaker –
JBL Legend CP100
Quick Start Guide
4
. Setting up
After installation,
or if you've discon-
nected and recon-
nected your car's
battery, you'll first
need to program the
date and time by
tapping the arrows
on the screen.
Tap "Settings" on
the home screen to
change languages,
activate day/night
mode, change the
date/time, adjust
audio settings, and
connect to your
Bluetooth devices.
JBL Legend CP100
Quick Start Guide
7
. Using Android Auto
To engage Android Auto, you just plug your compatible
Android Phone into the USB input and tap the Android Auto
button that appears on the home screen. You can then use
the touchscreen or your voice to control select apps. This
feature might require you to download Android Auto from
the Google Play™ store.
JBL Legend CP100
Quick Start Guide
10
. AM/FM radio
From the home
screen, tap FM or
AM. You can then
find stations by
direct tune, auto
scan, or manual
search. Press the
double arrow
key once to tune
manually; hold the
double arrow key to
engage seek tuning.
You can save up to
10 presets. To set
one, press and hold
the preset button
until the station's
frequency appears.
JBL Legend CP100
Quick Start Guide
2
. Rear panel connections
Bluetooth
®
microphone
input
Wire color
White
Optional steering wheel
control adapter input
White/black
Dark green
Green/black
Violet/black
JBL Legend CP100
Quick Start Guide
5
. Home screen
The home screen is your base of operations. From it,
you can tap the screen to select:
Phone to make and receive hands-free phone calls
Media to play MP3 files from USB, or engage Apple
CarPlay or Android Auto from your compatible phone
FM to listen to FM radio broadcasts
AM to listen to AM radio broadcasts
Settings to adjust system settings
JBL Legend CP100
Quick Start Guide
8
. Using Bluetooth for hands-free calling
To pair your phone
and receiver using
Bluetooth, tap the
"Phone" button and
press "Yes". Then
pull up the pairing
screen on your
phone and select
the CP100. You can
now receive calls,
and make calls by
using the onscreen
dialer or selecting
a contact.
Bluetooth is not
available when
using Apple CarPlay
or Android Auto.
JBL Legend CP100
Quick Start Guide

Specifications

Display
Size: 6.75"
LCD type: TFT active matrix
Pixels: 1,152,000 [800 x 480 x 3 (RGB)]
Illumination: LED
Power
General Power Requirement:
14.4V DC (11–16V allowable)
Operating Temperature: -20°C
to 85°C (-4°F to 185°F)
Power Output: 20W RMS x4
(Primary amplifier ratings per
CEA-2006 standard
Power output measured at 4 Ohms
and < 1 % THD+N)
S/N ratio: 107 dBa (reference:
1W into 4 ohms)
Audio Output Level
Front, rear preamp outputs:
2V/10k ohms (max)
FM tuner
Frequency range: 87.7 – 107.9 MHz
Sensitivity: 11 dBf (0.8 uV/75 ohms)
Signal-to-noise ratio: 60 dB
Front and rear preamp
outputs for optional
external amplifier(s)
Wiring
harness
USB input
input
(iPhone,
Android, and
extension cables
sold separately)
AM Tuner
Tuning: 530 – 1,170 kHz
Sensitivity: 25 uV/20 dB
USB
USB Standard: USB 1.1/2.0
Max Current Supply: 1.0 A
USB Class: MSC
(Mass Storage Class)
File System: FAT 16/32, NTFS
File Playback: MP3
Bluetooth
Version: Bluetooth 4.0
Output Power: +4 dBm Max.
(Power class 2)
Rear View Camera:
Composite video
Chassis
Width: 178mm (7")
Height: 100mm (3.94")
Depth: 142mm (5.6")
Weight: 1.5kg (3.3 lbs.)
