Owner's Manual

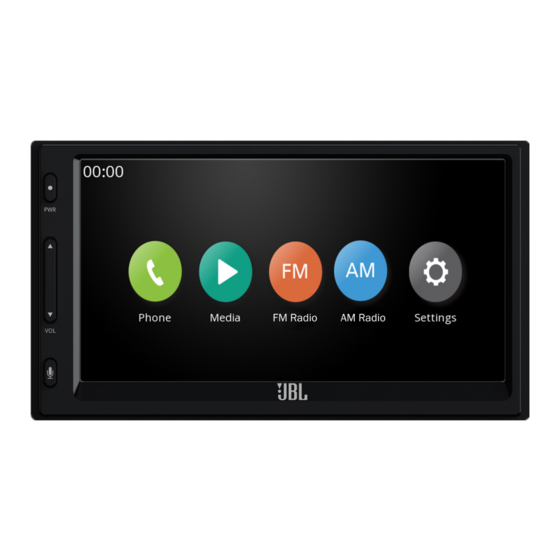

This guide is intended to introduce you to the basic functions of the JBL Legend CP100 smartphone
receiver.
The user is responsible for any cellular voice, data, and application fees that may occur.
Installation
Connections
Microphone
Optional steering
wheel interface
JBL Legend CP100
User manual – Draft 0.2
08.03.2015
Brackets and faceplate are vehicle
specific and are customer provided
Pre-amp out to optional customer
provided amplifier
Optional USB Port.
Customer to provide
USB extension cable
Advertisement
Related Manuals for JBL Legend CP100
Summary of Contents for JBL Legend CP100
- Page 1 JBL Legend CP100 User manual – Draft 0.2 08.03.2015 This guide is intended to introduce you to the basic functions of the JBL Legend CP100 smartphone receiver. The user is responsible for any cellular voice, data, and application fees that may occur.
-
Page 2: Push To Talk
Connector Reverse Purple / white Parking Brake Green Front Left + White Front right + Grey Front Left - White / black Front Right - Grey/black Rear left + Dark green Rear Right + Purple Rear left - Green / black Rear right - Purple/black Optional rear camera... - Page 3 Using Apple CarPlay To use Apple CarPlay, plug in a supporting Apple device and choose CarPlay button. Apple currently supports iPhone 5 and iPhone 6 devices. Choose the JBL icon to return to the Home screen. Using Android Auto To use android Auto, plug in a supporting android device and choose the Android Auto button. This...
- Page 4 Hands-free Calling Bluetooth conductivity is not available when Apple CarPlay or Android Auto is on. To connect your phone to Bluetooth press the Phone button and then choose YES. Enter the pairing screen on your phone and the choose CP100. Use the on screen dialer or choose from contacts to make outgoing calls. Playing Music MP3 music can be played by inserting USB device into the USB port and choosing the MEDIA button.
- Page 5 Technical Specifications: Display Screen Size 6.75” LCD Type TFT active matrix Pixels 1,152,000 (800 x 480 x 3 (RGB)) Illumination General Power Requirement 14.4V DC 9 – 16 V allowable Operating Temperature -20C to +85C (-4F to 185F) Power Output 20 W RMS x 4 Primary amplifier ratings per CEA-2006 standard Power output: measured at 4 Ohms and <...
-
Page 6: Compliance Information
Compliance Information Notice for the USA Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
