Model No.: MR-160

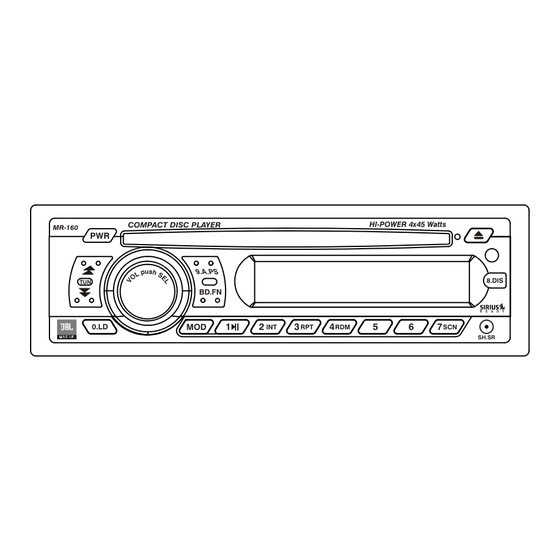

COMPACT DISC PLAYER
HI-POWER 4x45 Watts
MR-160
PWR
8.DIS
TUN
BD.FN
0.LD
MOD
1
2
3
4
5
6
7
INT
RPT
RDM
SCN
SH.SR
This product is sold and serviced exclusively by Prospec Electronic Inc. and must be returned
to Prospec for in and out of warranty repairs. It can not be serviced under warranty by other JBL
service centers. All products sold and serviced exclusively by Prospec Electronics Inc.
For service contact us: 3325 South Morgans Point Road Mount Pleasant SC 29466
Tel 843-849-9037
Fax 843-849-9054
Effected 31 / Dec / 07
Advertisement
Related Manuals for JBL MR-160
Summary of Contents for JBL MR-160
- Page 1 This product is sold and serviced exclusively by Prospec Electronic Inc. and must be returned to Prospec for in and out of warranty repairs. It can not be serviced under warranty by other JBL service centers. All products sold and serviced exclusively by Prospec Electronics Inc.
- Page 2 Sensitivity : PLEASE NOTE: In order to receive Sirius Satellite radio broadcast, you must install Separation : 30dB JBL Sir2.5 as well as a satellite antenna (both sold separately). COMPACT DISC AUDIO AMP & GENERAL What is SIRIUS Satellite Radio? 20 Hz-20 KHz Freq.
-
Page 3: Wiring Identification
Wiring Identification Operating the CD Player ( Remote control ) ( SIRIUS control ) ( AUX-IN ) COMPACT DISC PLAYER HI-POWER 4x45 Watts MR-160 8.DIS (ANT. socket) BD.FN CONNECTOR 0.LD SH.SR FUSE Blue (AUTO ANT) FUSE Yellow ( BACK-UP B+ ) Gray 1. -
Page 4: Important Notes
COMPACT DISC PLAYER HI-POWER 4x45 Watts MR-160 If the battery and its charging circuit are OK, then rewire the red fused wire of the CD player directly to the positive terminal (+) of the boat battery. -
Page 5: Installation
Installation Controls (continued) 1. Precautions 5. BD/FN button (5) Choose the mounting location carefully so that the unit will not interfere with the In Radio mode, press the BD/FN button (5) will shift FM/AM bands: normal driving functions of the boat. AM2. -
Page 6: Supporting The Unit
Controls Supporting the unit b. I-Vol By pressing the button again, the unit will be into the I- VOL mode. (Initial Volume Level Adjustment). You can adjust the I-Vol of what you want to set by turning the spindle knob and the I-Vol will be set automatically. After the setting of initial levels, when the unit is power on/off, detach on/off, and ACC on/off, if the present level is lower than Initial level, it will keep the present level. -
Page 7: Identification Of Control Functions
Identification of Control Functions Controls COMPACT DISC PLAYER HI-POWER 4x45 Watts COMPACT DISC PLAYER HI-POWER 4x45 Watts MR-160 MR-160 8.DIS 8.DIS BD.FN BD.FN 0.LD 0.LD SH.SR SH.SR 1. POWER ON/OFF Push the button (1) to turn on the unit. Push the button again to turn off the unit.
