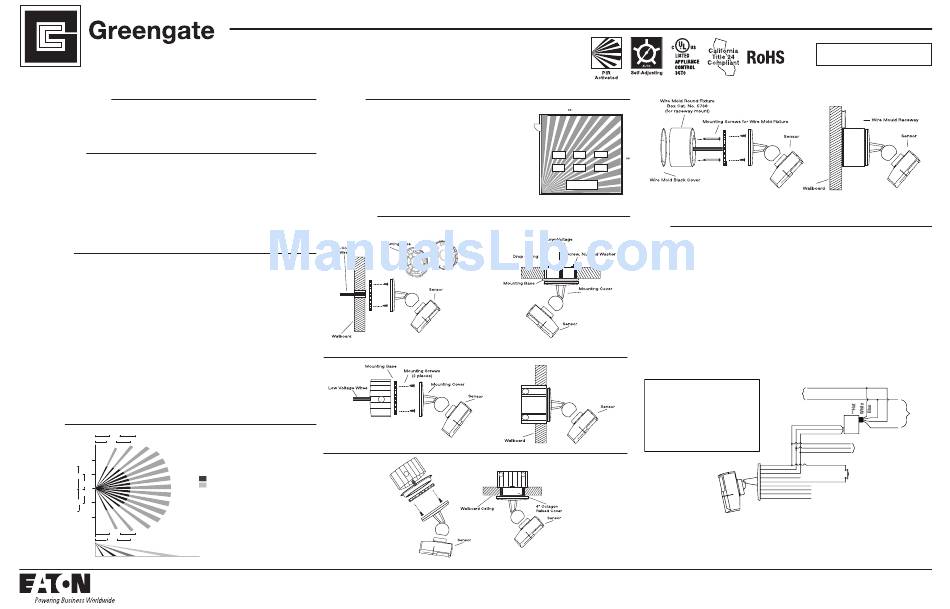

Greengate OAWC-P-120W Installation Instructions

P/N 9850-000140-01

General Information

• Read all instructions on both sides of this sheet first • For Use with Greengate Switchpacks & Systems Only
• Plan all component locations carefully • Do not run any Greengate Low Voltage Wiring in the
• Install in accordance with ALL local codes same conduit as power conductors
• For indoor use only
Specifications
Technology: Passive Infrared (PIR) Coverage: 1200 sq. ft.
Power Requirements: Light Level Sensing: 0 to 300 foot-candles (-R model)
Input: Operating Environment:
• 10-30 VDC from Greengate Switchpack or Greengate • Temperature: 32° F – 104° F (0° C – 40° C)
system. Maximum current needed is 25mA per sensor • Relative Humidity: up to 90% non-condensing
Housing:
Output:
• •
Open collector output to switch up to ten Greengate Medium impact injection molded housing
Switchpacks. BAS with Isolated Form C Relay (-R model) Polycarbonate resin complies with UL 94V0
Isolated Form C Relay Ratings: 1 A 30 VDC/VAC Size: 4.4" x 3.4" x 2" (112 mm x 86.4 mm x 50.8 mm)
Time Delays: Self-Adjusting, 15 seconds/test (10 min Auto), LED Indicators: Red indicates PIR detection
or Selectable 5, 15, 30 minutes

Description

The OAWC-P Wall/Corner Mount Low Voltage Occupancy Sensor is a Passive Infrared (PIR) motion sensing lighting control, used
for energy savings and convenience. When motion is detected, the blue wire is electronically connected to the red wire, energizing
the relay in the switchpack to turn ON the load. If vacancy is detected, the blue wire is disconnected from the red, causing the relay
to open turning OFF the load. The red lead is 10 to 30 VDC supply, the black lead is common and the blue is the relay control.

PIR Technology

The sensor's segmented lens divides the field of view into sensor zones and detects the changes in temperature that are created
when a person, or part of a person as small as a hand, passes into or out of a sensor zone.
The sensor includes self-adaptive technology that continually adjusts to conditions by adjusting sensitivity and time delay in real-
time. By adjusting sensitivity and time delay automatically, the sensor is maximizing the potential energy savings that are available in
the particular application.
The Daylighting feature (-R model only) prevents lights from turning ON when the room is adequately illuminated by natural light.
The Walk-Through feature maximizes energy savings by not leaving the lights ON after a momentary occupancy. The sensor
will switch the lights ON when it detects a person entering the area. If the sensor does not continue to detect motion 30 seconds
following the initial activation, it will automatically go to a shorter 2 minute time delay.
In Automatic On Mode, the lights turn ON when a person enters the room. In Manual ON Mode, the lights are turned ON by
activating a momentary switch (model # GMDS-*) that is connected to the sensor. When used with 2 level lighting (-R model only),
bi-level Automatic ON can be achieved which allows Zone 1 to come ON automatically upon occupancy. Zone 2 does not come ON
unless the occupant presses the optional momentary switch.

Coverage

24'
(7.3 mm)
20'
(6 mm)
12'
(3.7)
Minor Motion, IR
8'
(2.4 mm) Major Motion, IR
0
8'
(2.4 mm)
12'
(3.7)
24'
(7.3 mm)
20'
(6 mm)
10 ft
(3 mm)
6 ft 15 ft 24 ft 50 ft
(1.7 mm) (4.6 mm) (7.3 mm) (15.3 mm)
Passive Infared Wall/Corner Mounted Low
Voltage Occupancy Sensor

Location

The maximum coverage area may vary somewhat according to room shape and the
presence of obstacles. Follow the coverage diagram concerning major and minor motion
coverage. The sensor must have a clear view of the area to be controlled. The sensor will
not "see" through glass. Mounting height should not exceed 12 feet. Optimum mounting
height is 10 feet. Mount the sensor so the device faces the open portion of the room and
are facing a nearby wall, door, window, or other obstructing object. Avoid pointing into
hallways. To prevent false activation, the sensor should be mounted away from the air
supply duct a minimum of 4 to 6 feet. Mounting at fixture height is most effective. For
typical placement refer to Location Diagram.
Installation
The OAWC-P-120W can be mounted to the wall, ceiling, junction box or round fixture with raceway.
Occupancy Sensor Mounted to Wallboard
Occupancy Sensor Mounted to Octagon Box
Maximum coverage area may
vary somewhat according to room
shape and the presence of obstacles.
The NEMA WD 7 Guide and robotic
method were utilized to verify
coverage patterns.
Location Diagram
Occupancy Sensor Mounted to Drop Ceiling
Occupancy Sensor Mounted to Octagon Box with Mud Ring

Installation Instructions

Occupancy Sensor Mounted to Round Fixture with Raceway

Wiring

CAUTION: Before installing or performing any service on a Greengate system, the power MUST be turned OFF at the
branch circuit breaker. According to NEC 240-83(d), if the branch circuit breaker is used as the main switch for a
fluorescent lighting circuit, the circuit breaker should be marked "SWD". All installations should be in compliance with
the National Electric Code and all state and local codes.
NOTE REGARDING COMPACT FLUORESCENT LAMPS: The life of some compact fluorescent lamps (CFLs) is shortened by
frequent automatic or manual switching. Check with CFL and ballast manufacturer to determine the effects of cycling.
1. Make sure power is turned OFF at the branch circuit breaker.
2. Wire units as shown in wiring diagrams per applicable voltage requirements. (Use twist-on wire connectors for all
connections) CAP ALL UNUSED WIRE LEADS.
3. Mount unit to wall, ceiling, junction box, or round fixture with raceway.
4. Turn power back ON at the branch circuit breaker and wait 2 minutes for the unit to stabilize.
5. Make necessary adjustments. (See Checkout and Adjustments section)
One Sensor, One Switchpack

SENSOR WIRE LEAD LEGEND

Hot
Black (Common)
Line
Red (10-30 VDC) Neutral
Blue (Control)
**Use Black Lead for 120 VAC
Yellow (Control)
Use Orange Lead for 277 VAC
Brown (Switch-Blue Lead Control)
Cap Unused Lead
Brown/White (Switch-Yellow Lead Control)
Black (Common)
Sensor's Isolated Relay Red (15 VDC)
Blue (Control)
Orange (Normally Open)
Gray (Common)
Purple (Normally closed)
Black
Red
Blue
Yellow
Brown
Brown/White
Orange
Gray
Purple
Recommended Wire: 18-3 AWG stranded non-shielded
Model # OAWC-P-120W
Model # OAWC-P-120W-R
Load 1
Blue
Switchpack
To Additional Sensors.
Maximum of 5 sensors
per switchpack.
Optional Greengate GMDS Switch-
Blue Control Lead-Manual ON/OFF
Eaton's Cooper Controls Business
203 Cooper Circle
Peachtree City, Georgia 30269
www.coopercontrol.com
