Carrier KVBCN0101CLT Installation Instructions And Instructions For Use

KVBCN0101CLT
Wall Control Installation
WARNING
!
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
injury or death.
Before installing, modifying, or servicing, main electrical
disconnect switch must be in the OFF position. There
may be more than 1 disconnect switch. Lock out and tag
switch with a suitable warning label.
CAUTION
!
UNIT OPERATION HAZARD
Failure to follow this caution may result in equipment
damage or improper operation.
Never install more than one KVBCN0101CLT wall
control per unit.
Installation Instructions

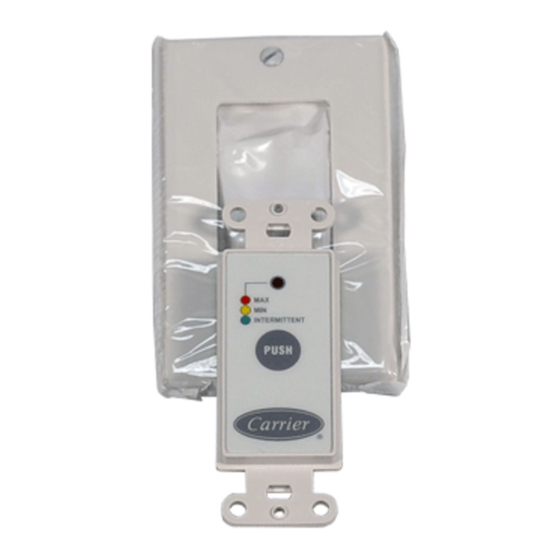

OneTouch Control
MAX
MIN
INTERMITTENT
NOTE: If this wall control is installed with any of the following
Carrier units the integrated control of those units must be turned
OFF; HRVCCSHA1100, HRVCCSVA1100, ERVCCSHA1100,
or ERVCCSVA1100, HRVCCLHA1150, HRVCCLHA1250.
NOTE: To ensure proper operation remove Jumper G on JU1 pin
IF this wall control is installed with another ERV or HRV Carrier
unit.
!
UNIT OPERATION HAZARD
Failure to follow this caution may result in equipment
damage or improper operation.
Ensure that the wires do not short-circuit between
themselves or by touching any other components on the
wall control. Avoid poor wiring connections. To reduce
electrical interference (noise) potential, do not run wall
control wiring next to another control contactor or near
light dimming
dwelling/business power or lighting wires, or power
distribution panels.
1
CAUTION
circuits, electrical motors,
