Scosche MA1532B Installation Manual

4
IN-DASH INSTALLATION KIT FOR
2006-UP MAZDA MIATA / MX5 VEHICLES
6247 DIN
TRIM RING
6246
DOUBLE DIN
TRIM RING
INTRODUCTION / PRELIMINARY
This premium installation kit is for MA1532B 2006-Up Mazda Miata / MX5 vehicles. Included are all
the parts you need to mount your car stereo/cassette or CD player into your vehicle's dash. Refer to
the individual instruction in this manual to remove your vehicle's factory radio and assemble the kit.
CAUTION:
DISCONNECT YOUR VEHICLE'S NEGATIVE BATTERY TERMINAL BEFORE THE INSTALLATION TO HELP
PREVENT ELECTRICAL DAMAGE. WE RECOMMEND THE USE OF A VOLT/OHM METER OVER A TEST LIGHT
TO CHECK WIRING. A TEST LIGHT OR GROUNDED WIRE PROBE CAN CAUSE DAMAGE TO THE VEHICLE'S
COMPUTER AND/OR DIAGNOSTIC SYSTEMS. AVOID ALL FACTORY AIRBAG WIRING - AIRBAGS CAN
ACCIDENTALLY DEPLOY CAUSING SERIOUS INJURY OR DEATH.
NOTES:
• See your vehicle's instructions for any special tools your installation might require.
• Read all instructions accompanying your car stereo/cassette player for proper wiring and mounting
instructions.
CAR STEREO CONNECTORS
PROVIDE EASY CONNECTION OF YOUR CAR
STEREO TO FACTORY WIRING HARNESS.
MA03B
2000-Up Select Mazda
LIABILITY DISCLAIMER
This instruction booklet is based on carefully documented data and research of automobile dash disassembly, wire harness/
codes and information pertaining to installation of this kit (MA1532B) in 2006-Up Mazda Miata / MX5 GM Vehicles. Scosche
Industries, Inc. can not be held responsible for discrepancies/inconsistencies that may occur due to the automobile
manufacturing changes or options, or damage that may occur in the automobile during the installation of components while
using this booklet.
MA1532B

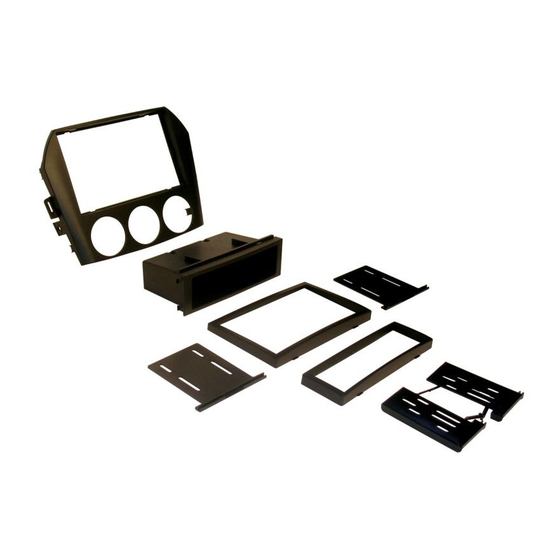

5742L
BRACKET
5908
DOUBLE DIN
ISO BRACKET
5908
DOUBLE DIN
ISO BRACKET
6228
KIT PANEL
6248
POCKET
MA03B
5742R
BRACKET
