BS550 BASE STATION OPERATION

Base Station is designed with soft-touch buttons to select menus, hand-free on/off, 4-wire, auxiliary input/output, communication
group, and so on. LEDs on the front panel indicate each selected modes and link status.
1
2

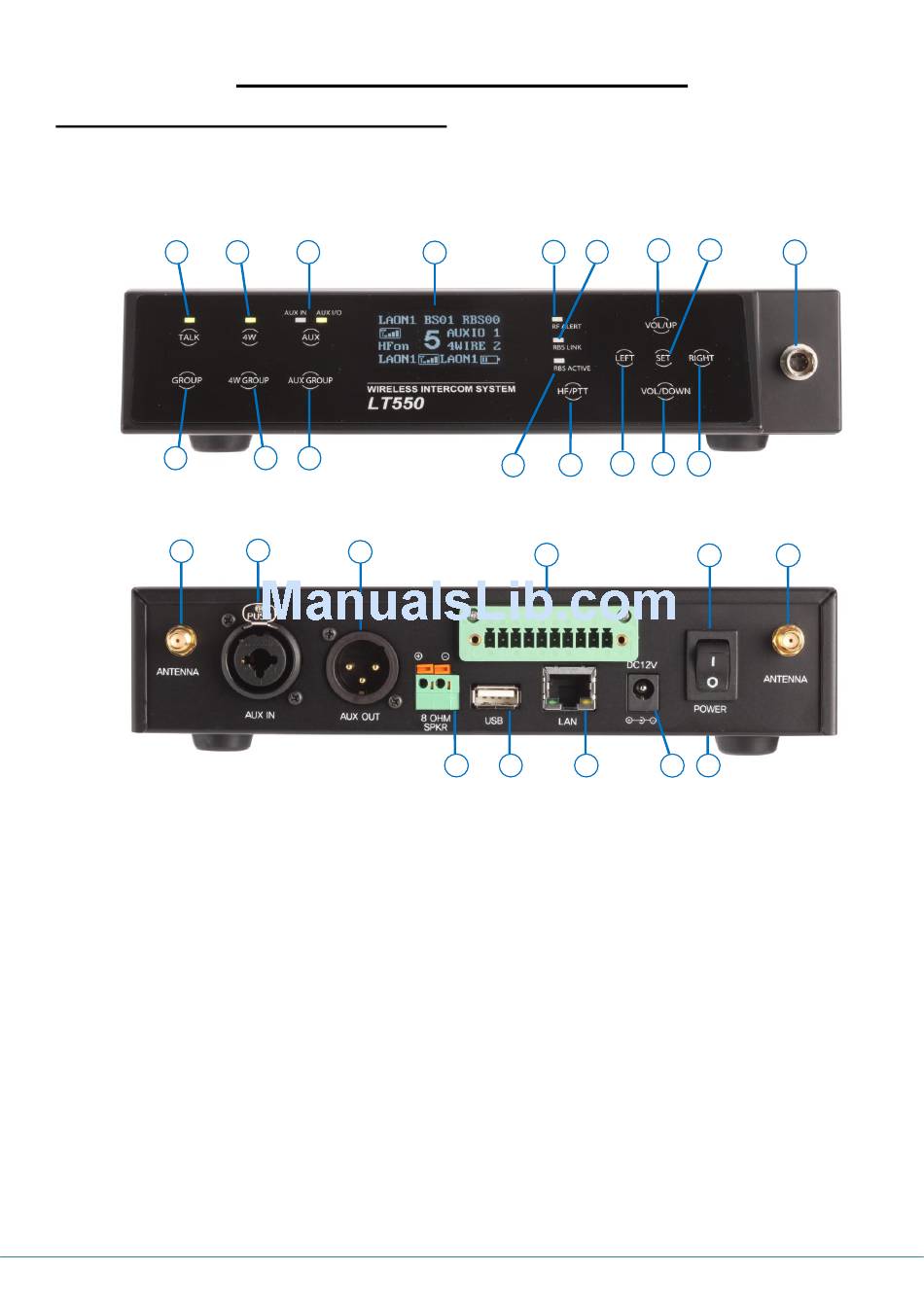

Figure 4-1. Front Panel of the Base Station
18
Figure 4-2. Rear Panel of the Base Station
POWER ON/OFF
Power On
Turn on the POWER switch (#22) on the rear panel of the Base Station. NORMAL menu will be displayed after the
frequency scan process for a minute on the Base Station‟s front panel as shown from Figure 4-1 and 4-3: The green light
on top of the TALK button (#1) should be flashing slowly indicating the readiness of the Base Station to be in use.
Power Off
Turn off the POWER switch on the rear panel of the Base Station.
NOTE: When the green TALK light is on steady, the Base Station is transmitting audio data and when blinking, the Base
Station is receiving the audio but not transmitting the audio data.
