SECTION 3: SYSTEM SETUP AND CONNECTIONS

BS550 BASE STATION SETUP

Following descriptions are stand-alone LT550 system configuration. Using additional devices such as Remote Stations, 4-wires,
auxiliary input/outputs and 8ohm speaker will be explained later on ADDITIONAL DEVICES SETUP in SECTION 5.
1

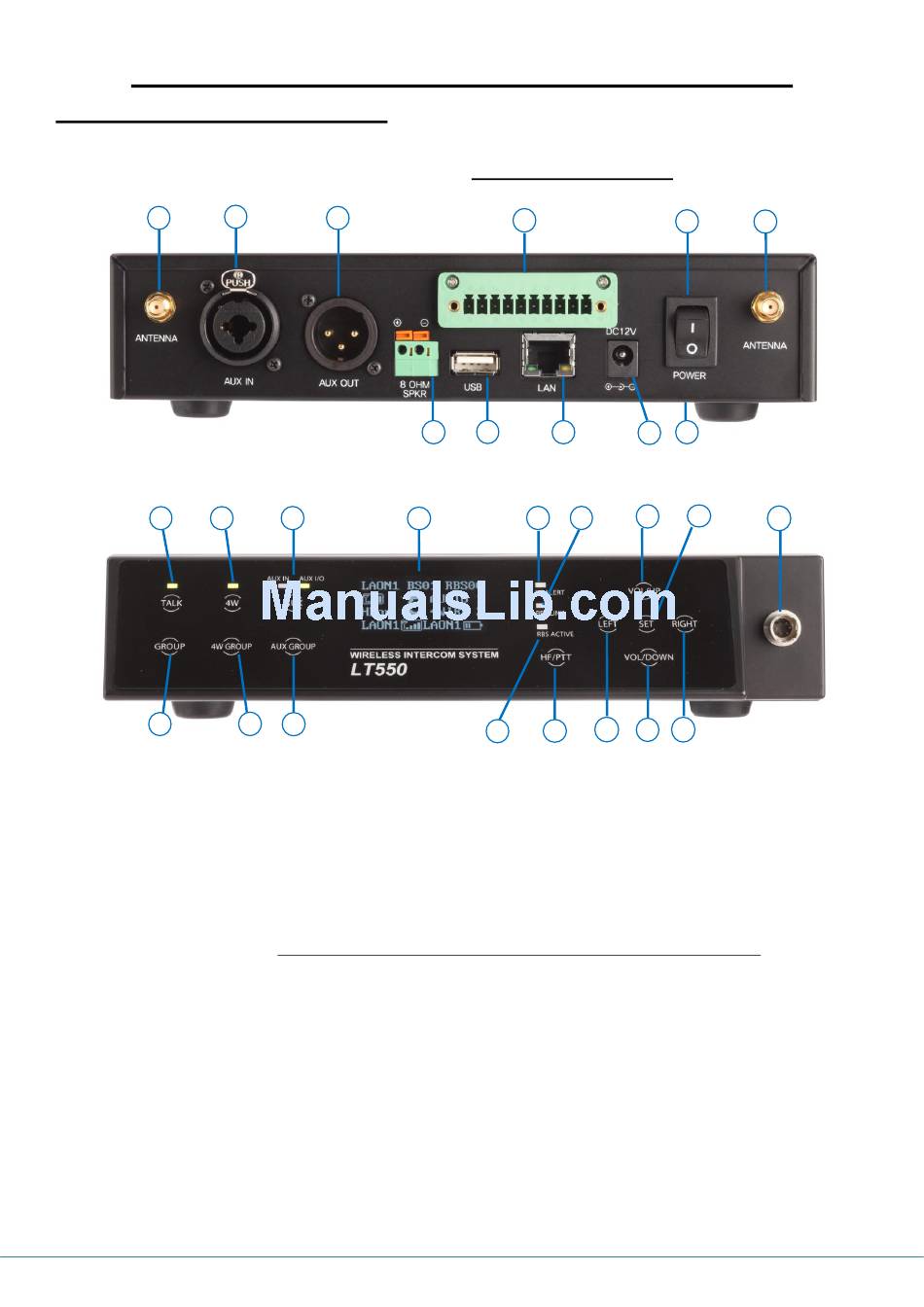

Figure 3-1. Rear Panel of the Base Station
1 3
2
Figure 3-2. Front Panel of the Base Station
Step 1: Put two enclosed antennas to the antenna connectors (#1 and #6) on the rear panel of the Base Station. Turn the sleeve
on each of the antenna connectors clockwise to tighten them, and ensure that the antennas are connected firmly.
NOTE 1: These two antennas must be positioned vertically and be folded completely as 90 degree. Otherwise, it will be
caused to weaken the signal.
NOTE 2: While attaching the antennas directly to the rear panel of the Base Station, the Base Station should be away
from any metal obstructions, walls, and electronic equipments that can create radio interference. It is highly
recommended to place the antenna as high as possible in the center of the coverage and away from
obstructions.
Step 2: Plug the DC cable from the enclosed wall-adapter power supply into the 12VDC POWER connector (#10) on the rear of the
Base Station. Plug the large female connector at the end of the AC power cord into the power supply. Plug the other end of
the AC power cord into a standard wall outlet.
Step 3: The headset is with „Push-Pull Lock‟ type connector. Put a headset into the HEADSET connector (#15) on the front panel of
the Base Station. To disconnect the headset, hold the plug on the headset connector and pull out slightly turning.
Step 4: Press the POWER switch (#5) on the rear panel of the Base Station to turn on the Base Station. „DFS detecting‟ will be
indicated on the Base Station‟s front panel display and once the detecting is completed, NORMAL menu will pop up as
shown in Figure 3-3: The green light on top of the TALK button (#1), as shown in the Figure 3-2, should be flashing slowly
indicating the readiness of Base Station to start operations.
ⓒ2016
LaON Technology Co., Ltd. All rights reserved.
2
3
5
4 6
4
7 8 9
7 8
17
9 16
5 6
10 11
10 14
15
12 13
11
18
