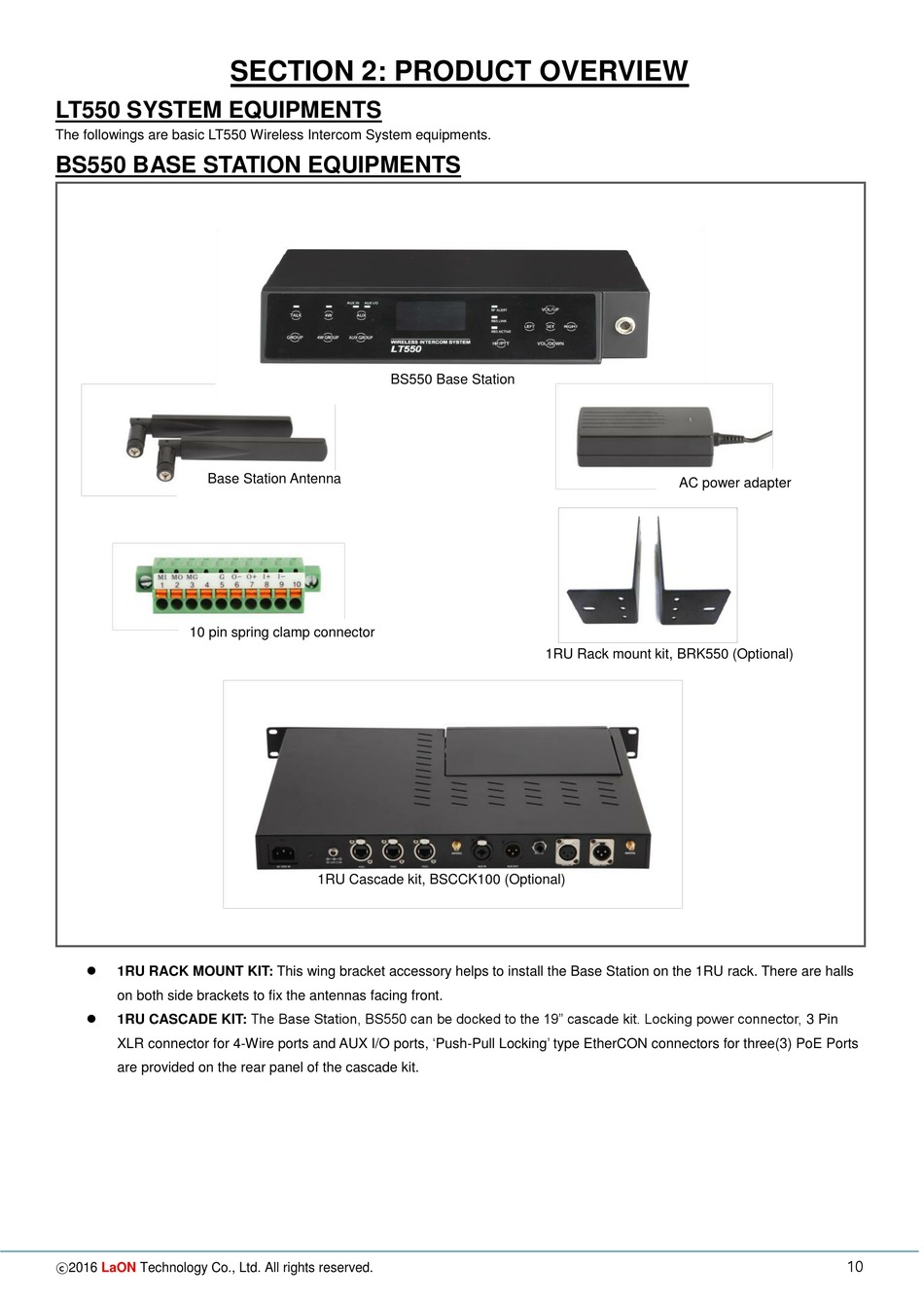

LT550 SYSTEM EQUIPMENTS
The followings are basic LT550 Wireless Intercom System equipments.

BS550 BASE STATION EQUIPMENTS

Base Station Antenna
10 pin spring clamp connector

1RU RACK MOUNT KIT: This wing bracket accessory helps to install the Base Station on the 1RU rack. There are halls
on both side brackets to fix the antennas facing front.
 1RU CASCADE KIT: The Base Station, BS550 can be docked to the 19" cascade kit. Locking power connector, 3 Pin
XLR connector for 4-Wire ports and AUX I/O ports, „Push-Pull Locking‟ type EtherCON connectors for three(3) PoE Ports
are provided on the rear panel of the cascade kit.
ⓒ2016
LaON Technology Co., Ltd. All rights reserved.
SECTION 2: PRODUCT OVERVIEW
BS550 Base Station
1RU Cascade kit, BSCCK100 (Optional)
AC power adapter
1RU Rack mount kit, BRK550 (Optional)
