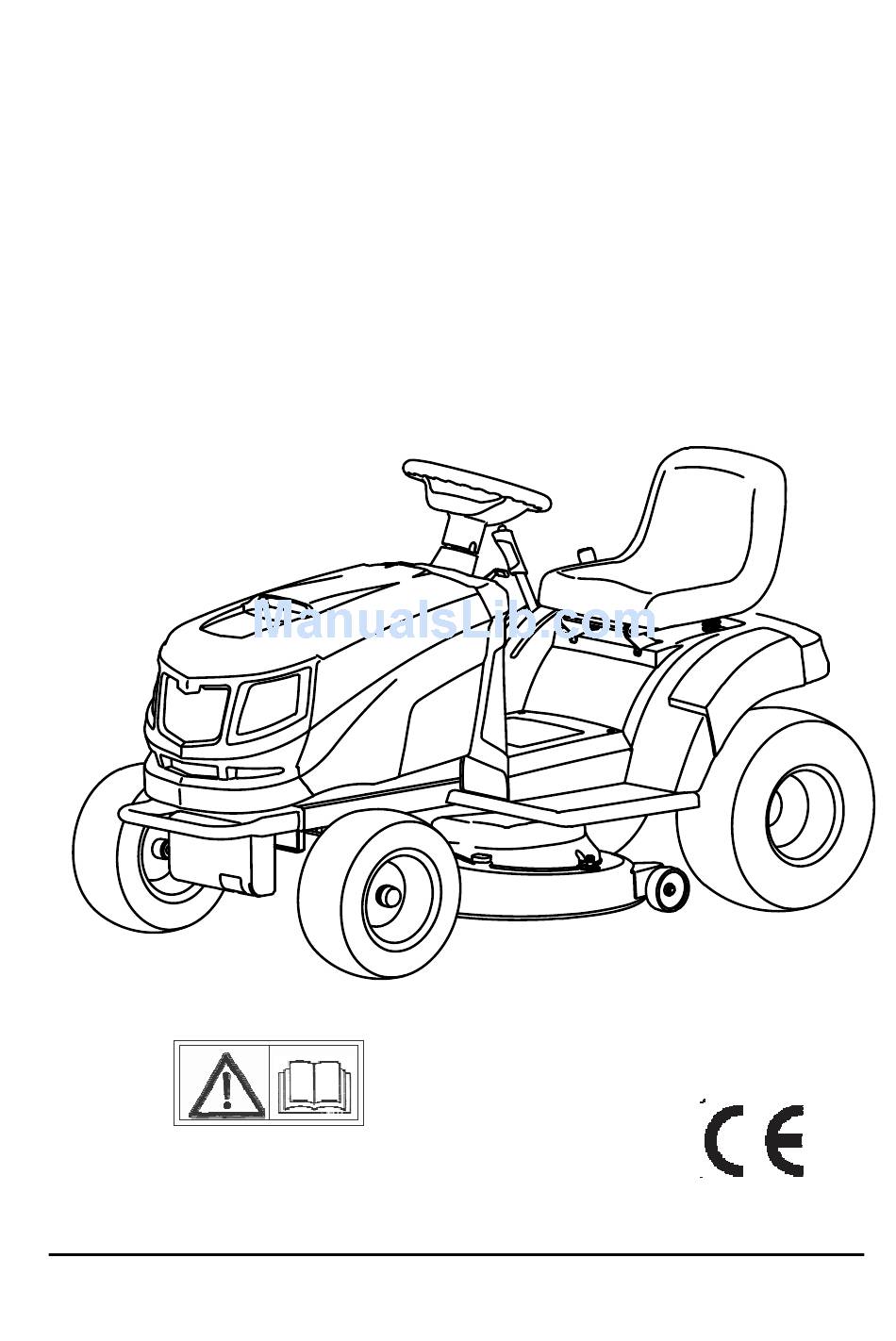

- Page 1 Original instructions TEXAS XC140-98H OWNER’S MANUAL WARNING! Read this manual carefully before using the machine Texas A/S - Knullen 22 - DK-5260 Odense S - Denmark Version 18.1 Tel. +45 6395 5555 - post@texas.dk - www.texas.dk...
- Page 2 INTRODUCTION INTRODUCTION Dear Customer, Thank you for having chosen one of our products. We hope that you will get complete satisfaction from using your new machine and that it will fully meet all your expectations. This manual has been written to help you become familiar with the machine and use it safely and efficiently.
- Page 3 INTRODUCTION IMPORTANT The lawnmower must always be used with utmost caution. So that safety precautions and operating instructions are always readily on hand, labels have been affixed to the machine showing pictographs illustrating the main operating precautions Because these labels, according to applicable safety standards, are considered an integral part of the machine, the user is therefore responsible for replacing them in the event of their becoming detached or illegible.
- Page 4 INTRODUCTION LABEL POSITION...
-
Page 5: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS 1. SAFETY ....................1 2. IDENTIFICATION OF THE MACHINE AND COMPONENTS ..... 7 3. UNPACKING AND ASSEMBLY ............8 4. CONTROLS AND INSTRUMENTS ........... 13 5. HOW TO USE THE MACHINE ............16 5.1 SAFETY RECOMMENDATIONS ..........16 5.2 WHY THE SAFETY DEVICES CUT IN ........ -
Page 6: Safety
SAFETY 1. SAFETY 1.1 HOW TO READ THE MANUAL Some paragraphs in the manual containing important information regarding safety and operation are emphasized in the following ways. These give details or further information on NOTE IMPORTANT what has already been said, in the aim to prevent damage to the machine. - Page 7 SAFETY 5) Do not carry passengers. 6) All drivers should seek and obtain professional and practical instruction. Such instruction should emphasise: – the need for care and concentration when working with ride-on machines; – you can not use the brake to regain control of a ride-on machine sliding down a slope.
- Page 8 SAFETY C) OPERATION 1) Do not start the engine in a confined space where dangerous carbon monoxide fumes can collect. 2) Mow only in daylight or good artificial light. 3) Before starting the engine, disengage the blades and shift into neutral.
- Page 9 SAFETY – after striking a foreign object. Inspect the machine for damage and make repairs before restarting and operating the machine; – If the machine starts to vibrate abnormally (check for the causes immediately). 12) Disengage the blades for transport or whenever they are not in use.
- Page 10 SAFETY 1.3 SAFETY LABELS Your machine must be used with care. This is why labels with illustrations have been placed on the machine, to remind you of the main precautions to take during use. These labels are to be considered an integral part of the machine. Should a label come off or become illegible, contact your dealer to replace it.
- Page 11 SAFETY Warning: Danger! Read the instruc- Risk of injury. Blades in movement, tions before operating Do not put hands or feet this machine. near. The blade will continue turning for sometime after switching Warning: off the engine or disabling the blade control Disconnect the ignition key and read...
-
Page 12: Identification Of The Machine And Components
IDENTIFICATION OF THE MACHINE AND COMPONENTS 1.4 REGULATIONS FOR TOWING A kit for towing a small trailer is available on request, This accessory is to be fitted following the instructoins provided,When using the towing kit ,Do not exceed the recommended loads stated on the label and follow the safety instructions. -
Page 13: Unpacking And Assembly
IDENTIFICATION OF THE MACHINE AND COMPONENTS 2.2 IDENTIFICATION OF MAIN COMPONENTS The main components of the machine as following: 1）Engine cover. 2）Engine 3）Steering wheel 4）Ignition key. 5）Driving seat 6）Parking brake lever. 7）Battery 8）Front wheels. 9）Brake pedal 10）Drive engagement pedal 11）Discharge guard 12）Rotating blade 13）Blade deck 14）Rear driving wheels. - Page 14 UNPACKING AND ASSEMBLY 3.1 UNPACKING When unpacking the machine, take care to gather all individual parts and fittings, and do not damage the cutting deck when taking the machine off the pallet. Please remove the 6 bolts at the bottom of the packaging shelf at first, then you can lift up the upper frame...
- Page 15 UNPACKING AND ASSEMBLY 3.2 FITTING THE STEERING WHEEL Put the machine on a flat surface and straighten up the front wheels. Fit the shaft onto the protruding shaft using the bolt and nut. Fit the steering wheel onto the steering connect shaft with the spokes directed towards the seat, 3.3 FITTING THE SEAT Mount the seat on the plate using the screws...
- Page 16 UNPACKING AND ASSEMBLY Danger : Do not detach or cut the aluminum blades that seal the 6 bottle elements. Danger： To start the battery, the operator must: 1) Take the battery out of the box and rest it on a sturdy surface.
- Page 17 UNPACKING AND ASSEMBLY This machine used the following battery: YTX20L-BS, 12 V, 18Ah. 3.5 MOUNTING THE DECK WHEEL Mounting the two deck wheels on the deck using the bolts, bushing, washer and nuts. 3.6 MOUNTING THE FRONT BUMPER Mounting the front bumper on the bottom of the frame using the screws.
-
Page 18: Controls And Instruments
CONTROLS AND INSTRUMENTS 4. CONTROLS AND INSTRUMENTS 4.1 THROTTLE LEVER This regulates the engine revs, the positions are indicated on a label showing the following symbols: «CHOKE» cold starting «SLOW» for minimum engine speed «FAST» for maximum engine speed – The «CHOKE» position enriches the mixture so must only be used for the time necessary when starting from cold. - Page 19 CONTROLS AND INSTRUMENTS 4.3 HEADLIGHT SWITCH For turning on the headlights when the key is in the «ON» position 4.4 KEY IGNITION SWITCH This key operated control has three positions: «OFF» everything is switched off. «ON» activates all parts «START» connects the starter motor If you release the key on «START», it will automatically return to «ON»...
- Page 20 CONTROLS AND INSTRUMENTS BLADE ROTATION ENGAGEMENT LEVER Starts or stops blade rotation Blade engaged Blade disengaged 4.9 DRIVE ENGAGEMENT PADAL This pedal engages drive in the wheels as well as modulating the machine’s forward and reverse speeds. ——To engage forward drive, press it towards «F»...
-
Page 21: How To Use The Machine
HOW TO USE THE MACHINE 5. HOW TO USE THE MACHINE 5.1 SAFETY RECOMMENDATIONS The machine must only be used for the purpose for which it was designed (cutting grass). Do not tamper with or remove the safety devices fitted on the machine. -
Page 22: Directions Before Starting Work
HOW TO USE THE MACHINE b) The engine stops when: – the operator leaves his seat and the parking brake is disengaged； – the operator leaves his seat and blades are engaged； – the blades are engaged and the machine is reverse. -
Page 23: Using The Machine
HOW TO USE THE MACHINE damaging them. In the event of accidental spills or leaks, rinse immediately with water. The warranty does not cover for damage to plastic parts of the bodywork or the engine caused by petrol. 5.3.4 Checking machine safety and efficiency 1. - Page 24 HOW TO USE THE MACHINE engine. Turn the key to «OFF», wait for a few seconds and then repeat the operation. If the malfunction persists, refer to the engine manual Always bear in mind that the safety devices prevent the engine from starting if safety requirements have not been met (see5.2).
- Page 25 HOW TO USE THE MACHINE – regulate the cutting height and speed considering the conditions of the lawn. (the height, density and dampness of the grass). When cutting on sloping ground, reduce your speed to ensure safe conditions. Whatever the conditions, always reduce the speed if you notice a drop in engine speed –...
- Page 26 HOW TO USE THE MACHINE Never use hose nozzles or harsh detergents to clean the bodywork or the engine! When washing the inside of the cutting deck and the collector channel, the machine must be on firm ground with: – the grass-catcher or discharge guard fitted;...
-
Page 27: Using On Sloping Ground
HOW TO USE THE MACHINE protection device To avoid activating the protection device: – do not invert the leads on the battery terminals; – do not use the machine without its battery or damage may be caused to the charging regulator; –... -
Page 28: Transporting
HOW TO USE THE MACHINE leaving the machine at a standstill and unattended. Start moving forwards very carefully on sloping ground to prevent the risk of tipping over. Reduce the forward speed before going on a slope, particularly downhill. Never use reverse to reduce speed going downhill: this could cause you to lose control of the vehicle, especially on slippery ground. - Page 29 HOW TO USE THE MACHINE 7. The best height of the grass on a well-kept lawn is approx. 4-5 cm. With one cut, you do not need to remove more than a third of the total height. If the grass is very tall, it should be cut twice in a 24 hour period – the first time with the blades at maximum height, possibly reducing the cutting width, and the second cut at the desired height.
-
Page 30: Maintenance
MAINTENANCE 6. MAINTENANCE 6.1 SAFETY RECOMMENDATIONS Before cleaning or doing maintenance work, take out the ignition key and read the relevant instructions. Wear adequate clothing and work gloves whenever your hands are at risk. Never use the machine with worn or damaged parts. Faulty or worn-out parts must always be replaced and not repaired. - Page 31 MAINTENANCE machine is to be left unused for a long period. The above table is there to help you maintain your machine’s safety and performance. It shows the main maintenance and lubrication operations and their frequency. To the right of each item, there is a box where you can write the date or after how many operating hours the work was carried out.
-
Page 32: Checks And Adjustments
MAINTENANCE Recharging must be done using a battery charger at constant voltage. Other recharging systems can irreversibly damage the battery 6.3 CHECKS AND ADJUSTMENTS 6.3.1 Cutting deck alignment The cutting deck should be properly set to obtain a good cut. For achieving good results from cutting, the front part... -
Page 33: Dismantling And Replacement
MAINTENANCE move the blade rotation engagement lever to the DISENGAGE position, adjust the cut drive cable to propriety loose by the adjuster nut, then move blade rotation engagement lever to the ENGAGE position, check the tension of the blade drive spring. After you operate with a new mower drive belt for several hours, check the tension of the blade drive... - Page 34 MAINTENANCE 6.4.3 Replacing the bulbs The bulbs (12V18W) have a bayonet fitting and are installed in the bulb holder which can be taken out by turning it anticlockwise. 6.4.4 Replacing a fuse The machine is fitted with 10A fuses. When it blows, the machine stops, the dashboard light switches off.
-
Page 35: Lubrication
MAINTENANCE remounted the blade. Check that the concave part of the disc washer presses against the blade. Remount the shaft hubs, making sure the key is securely lodged in place. 4.Tightening the screws Tightening clockwise with a torque wrench calibrated to 40~45N.m. 6.4.6 Replacing the belt The belt replacement must be carried out at a Licensed Service Centre. -
Page 36: Specifications
SPECIFICATIONS 7. SPECIFICATIONS 7.1 TECHNICAL DATA TABLE Model XC140-98H Rated power: 8.8 kW Max. engine speed: 2800 min Type: 98.41.101; Length: 493 mm Blade: Sound pressure level : 88.6 dB(A), at the operator : 3 dB(A) (EN 836+A4) Guaranteed sound... - Page 37 SPECIFICATIONS 7.2 Machine Dimensions...
- Page 38 SPECIFICATIONS EC Certificate of conformity Importer: Texas Andreas Petersen A/S Hereby certifies that the following: Lawn tractor XC 140-98H Is in compliance with the specifications of the machine directive and subsequent modifications: 2006/42/EC - 2014/30/EU Conforms with the following standards:...
