TEXAS XC140-98
OWNER'S MANUAL
Texas A/S - Knullen 22 - DK-5260 Odense S - Denmark
Tel. +45 6395 5555 - post@texas.dk - www.texas.dk
WARNING!
Read this manual carefully before using the machine
Version 18.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XC140-98 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas XC140-98

Summary of Contents for Texas XC140-98

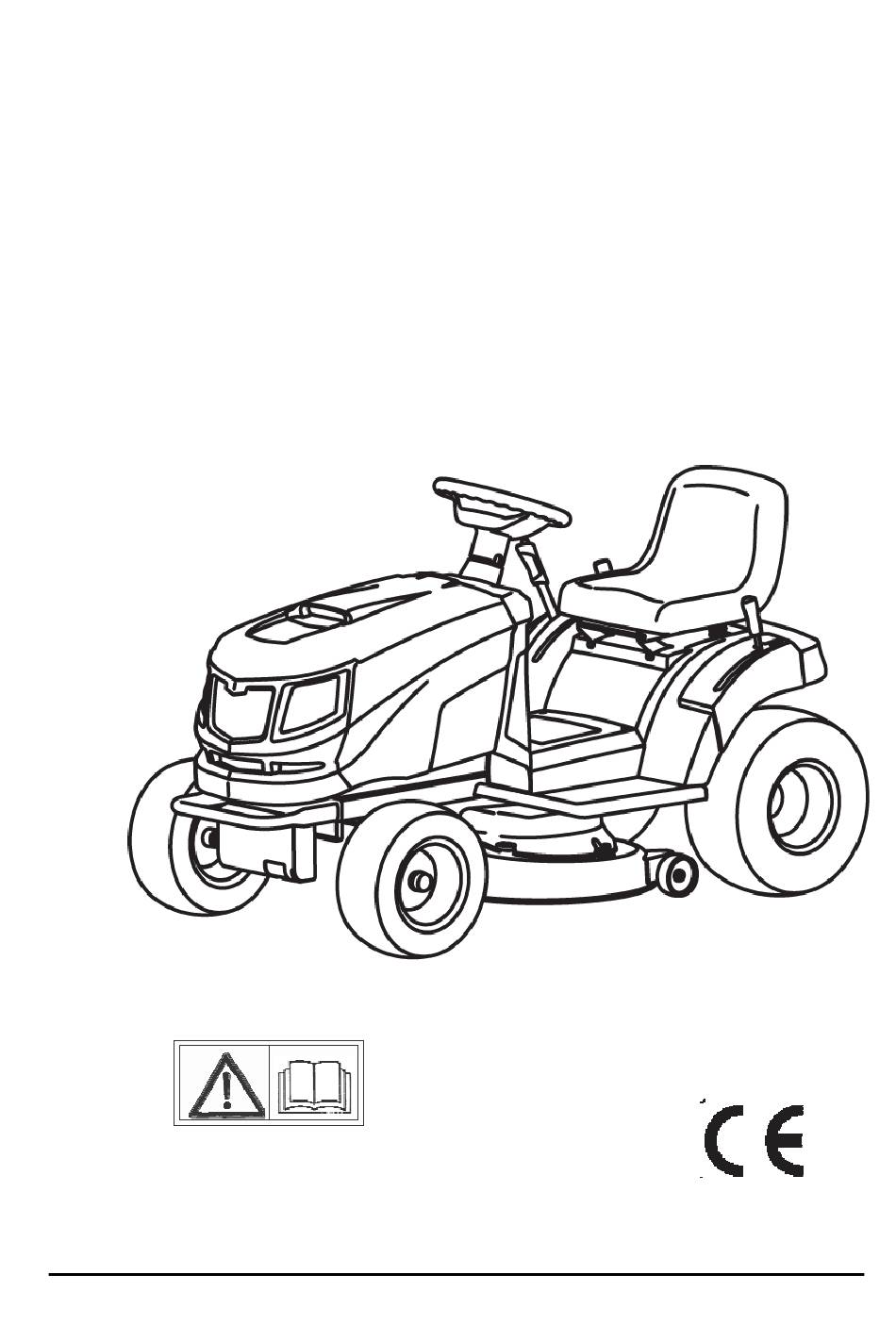

  • Page 1 Original instructions TEXAS XC140-98 OWNER’S MANUAL WARNING! Read this manual carefully before using the machine Texas A/S - Knullen 22 - DK-5260 Odense S - Denmark Version 18.1 Tel. +45 6395 5555 - post@texas.dk - www.texas.dk...
  • Page 2 INTRODUCTION INTRODUCTION Dear Customer, Thank you for having chosen one of our products. We hope that you will get complete satisfaction from using your new machine and that it will fully meet all your expectations. This manual has been written to help you become familiar with the machine and use it safely and efficiently.
  • Page 3 INTRODUCTION IMPORTANT The lawnmower must always be used with utmost caution. So that safety precautions and operating instructions are always readily on hand, labels have been affixed to the machine showing pictographs illustrating the main operating precautions Because these labels, according to applicable safety standards, are considered an integral part of the machine, the user is therefore responsible for replacing them in the event of their becoming detached or illegible.
  • Page 4 INTRODUCTION LABEL POSITION...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS 1. SAFETY ....................1 2. IDENTIFICATION OF THE MACHINE AND COMPONENTS ..... 7 3. UNPACKING AND ASSEMBLY ............8 4. CONTROLS AND INSTRUMENTS ........... 13 5. HOW TO USE THE MACHINE ............15 5.1 SAFETY RECOMMENDATIONS ..........15 5.2 WHY THE SAFETY DEVICES CUT IN ........

  • Page 6: Safety

    SAFETY 1. SAFETY 1.1 HOW TO READ THE MANUAL Some paragraphs in the manual containing important information regarding safety and operation are emphasized in the following ways. These give details or further information on NOTE IMPORTANT what has already been said, in the aim to prevent damage to the machine.
  • Page 7 SAFETY 5) Do not carry passengers. 6) All drivers should seek and obtain professional and practical instruction. Such instruction should emphasize: – the need for care and concentration when working with ride-on machines; – you can not use the brake to regain control of a ride-on machine sliding down a slope.
  • Page 8 SAFETY C) OPERATION 1) Do not start the engine in a confined space where dangerous carbon monoxide fumes can collect. 2) Mow only in daylight or good artificial light. 3) Before starting the engine, disengage the blades and shift into neutral.
  • Page 9 SAFETY – after striking a foreign object. Inspect the machine for damage and make repairs before restarting and operating the machine; – If the machine starts to vibrate abnormally (check for the causes immediately). 12) Disengage the blades for transport or whenever they are not in use.
  • Page 10 SAFETY 1.3 SAFETY LABELS Your machine must be used with care. This is why labels with illustrations have been placed on the machine, to remind you of the main precautions to take during use. These labels are to be considered an integral part of the machine. Should a label come off or become illegible, contact your dealer to replace it.
  • Page 11 SAFETY Warning: Danger! Read the instruc- Risk of injury. Blades in movement, tions before operating Do not put hands or feet this machine. near. The blade will continue turning for sometime after switching Warning: off the engine or disabling the blade control Disconnect the ignition key and read...

  • Page 12: Identification Of The Machine And Components

    IDENTIFICATION OF THE MACHINE AND COMPONENTS 1.4 REGULATIONS FOR TOWING A kit for towing a small trailer is available on request, This accessory is to be fitted following the instructions provided, when using the towing kit ,Do not exceed the recommended loads stated on the label and follow the safety instructions.

  • Page 13: Unpacking And Assembly

    IDENTIFICATION OF THE MACHINE AND COMPONENTS 2.2 IDENTIFICATION OF MAIN COMPONENTS The main components of the machine as following: 1) Engine cover. 2) Engine 3) Steering wheel 4) Ignition key. 5) Driving seat 6) Parking brake lever. 7) Battery Drive and speed change engagement lever.
  • Page 14 UNPACKING AND ASSEMBLY 3.1 UNPACKING When unpacking the machine, take care to gather all individual parts and fittings, and do not damage the cutting deck when taking the machine off the pallet. Please remove the 6 bolts at the bottom of the packaging shelf at first, then you can lift up the upper frame...
  • Page 15 UNPACKING AND ASSEMBLY 3.2 FITTING THE STEERING WHEEL Put the machine on a flat surface and straighten up the front wheels. Fit the shaft onto the protruding shaft using the bolt and nut. Fit the steering wheel onto the steering connect shaft with the spokes directed towards the seat, 3.3 FITTING THE SEAT Mount the seat on the plate using the screws...
  • Page 16 UNPACKING AND ASSEMBLY Danger : Do not detach or cut the aluminum blades that seal the 6 bottle elements. Danger： To start the battery, the operator must: 1) Take the battery out of the box and rest it on a sturdy surface.
  • Page 17 UNPACKING AND ASSEMBLY This machine used the following battery: YTX20L-BS, 12 V, 18Ah. 3.5 MOUNTING THE DECK WHEEL Mounting the two deck wheels on the deck using the bolts, bushing, washer and nuts. 3.6 MOUNTING THE FRONT BUMPER Mounting the front bumper on the bottom of the frame using the four screws...

  • Page 18: Controls And Instruments

    CONTROLS AND INSTRUMENTS 4. CONTROLS AND INSTRUMENTS 4.1 THROTTLE LEVER This regulates the engine revs, the positions are indicated on a label showing the following symbols: «CHOKE» cold starting «SLOW» for minimum engine speed «FAST» for maximum engine speed – The «CHOKE» position enriches the mixture so must only be used for the time necessary when starting from cold.
  • Page 19 CONTROLS AND INSTRUMENTS 4.3 HEADLIGHT SWITCH For turning on the headlights when the key is in the «ON» position 4.4 KEY IGNITION SWITCH This key operated control has three positions: «OFF» everything is switched off. «ON» activates all parts «START» connects the starter motor If you release the key on «START», it will automatically return to «ON»...

  • Page 20: How To Use The Machine

    CONTROLS AND INSTRUMENTS When shift the speed change lever, press the pedal to disengage the drive belt and shift the lever as shown on the label. Never directly shift the lever from forward to reverse or from reverse to forward before the machine come to stop. Only shift into reverse when the machine has stopped moving BLADE ROTATION ENGAGEMENT LEVER...

  • Page 21: Why The Safety Devices Cut In

    HOW TO USE THE MACHINE Do not leave the machine on high grass with the engine running to avoid the risk of starting a fire. Do not use the machine on lawns with gradients of more than 15° (27%). Do not use the machine on lawns with side gradients above 10°...

  • Page 22: Using The Machine

    HOW TO USE THE MACHINE The pressures are: FRONT 1.0 bar (15 x 6.0-6) REAR 1.2 bar (18 x 8.5-8) 5.3.3 Checking the fuel and oil The engine manual indicates what type of oil and fuel you can use. With the engine off, check the oil level. According to the instructions in the engine manual, this must be between...
  • Page 23 HOW TO USE THE MACHINE ventilated area! ALWAYS REMEMBER THAT EXHAUST GASES ARE TOXIC! To start the engine: – open the fuel stopcock(to “I”); – close the engine cover ; – lift the cutting deck raised as high as possible. –...
  • Page 24 HOW TO USE THE MACHINE The pedal has to be released gradually as a sudden engagement may cause the vehicle to tip over and the diver to lose control. Gradually reach the desired speed using the throttle and gear lever. To change gear, the clutch must always be used by pushing the pedal.
  • Page 25 HOW TO USE THE MACHINE This job must only be performed with the engine turned off. 5.4.7 End of mowing When you have finished mowing, disengage the blades, lower the engine speed and ride the machine with the cutting deck raised as high as possible.
  • Page 26 HOW TO USE THE MACHINE month), disconnect the battery cables and follow the instructions in the engine instruction manual. Empty the fuel tank by disconnecting the tube situated at the inlet of the fuel filter and follow the instructions in the engine manual Carefully remove any dry grass cuttings which may have collected around the engine or silencer to prevent their catching fire the next time the machine is used!

  • Page 27: Using On Sloping Ground

    HOW TO USE THE MACHINE Fit the discharge guard;apply the throttle;engage the Cut the grass ( 5.4.5) blades;adjust the cutting height, push the pedal right down,engage the gear and then gradually release the pedal. Stop moving forwards, disengage the blades and turn Unblock the collector off the engine.

  • Page 28: Lawn Maintenance

    HOW TO USE THE MACHINE stopcock, lower the cutting deck, apply the parking brake and fasten the machine securely with ropes or chains to the hauling device 5.7 LAWN MAINTENANCE 1. To keep a lawn green, soft and attractive, it should be cut regularly without damaging the grass.

  • Page 29: Maintenance

    MAINTENANCE 6. MAINTENANCE 6.1 SAFETY RECOMMENDATIONS Before cleaning or doing maintenance work, take out the ignition key and read the relevant instructions. Wear adequate clothing and work gloves whenever your hands are at risk. Never use the machine with worn or damaged parts. Faulty or worn-out parts must always be replaced and not repaired.
  • Page 30 MAINTENANCE machine is to be left unused for a long period. The above table is there to help you maintain your machine’s safety and performance. It shows the main maintenance and lubrication operations and their frequency. To the right of each item, there is a box where you can write the date or after how many operating hours the work was carried out.

  • Page 31: Checks And Adjustments

    MAINTENANCE Recharging must be done using a battery charger at constant voltage. Other recharging systems can irreversibly damage the battery 6.3 CHECKS AND ADJUSTMENTS 6.3.1 Cutting deck alignment The cutting deck should be properly set to obtain a good cut. For achieving good results from cutting, the front part...
  • Page 32 MAINTENANCE move the blade rotation engagement lever to the DISENGAGE position, adjust the cut drive cable to propriety loose by the adjuster nut, then move blade rotation engagement lever to the ENGAGE position, check the tension of the blade drive spring. （L=188~190mm） After you operate with a new mower drive belt for several hours, check the tension of the blade drive...

  • Page 33: Dismantling And Replacement

    MAINTENANCE 6.4 DISMANTLING AND REPLACEMENT 6.4.1 Replacing wheels Stop the machine on flat ground and put a block under a load-bearing part of the frame on the side that the wheel is to be changed. The wheels are held by a snap ring which can be eased off with a screwdriver.
  • Page 34 MAINTENANCE 6.4.5 Dismantling, replacing and remounting the blades Always wear work gloves when handling the blades. Before you inspect or remove the blade, stop the engine and disconnect the wire to the spark plug. Damaged or bent blades must always be replaced; never try to repair them! ALWAYS USE ORIGINAL BLADES! Make sure the blades are correctly balanced.

  • Page 35: Lubrication

    MAINTENANCE 6.5 LUBRICATION Apply grease with a injector to the areas shown. apply two or three shots of grease, and wipe off excess grease. areas with Lubricate the shown engine oil. wipe the area clean, apply a few drops of oil, then wipe up drips or spills. Do not dirty the belt or brake shoe or tire with the grease or oil, oil or grease will damage them.

  • Page 36: Specifications

    SPECIFICATIONS 7. SPECIFICATIONS 7.1 TECHNICAL DATA TABLE Model XC140-98 Rated power: 8.8 kW Max. engine speed: 2800 min Type: 98.41.101; Length: 493 mm Blade: Sound pressure level : 88.6 dB(A), at the operator : 3 dB(A) (EN 836+A4) Guaranteed sound...
  • Page 37 SPECIFICATIONS 7.2 Machine Dimensions...
  • Page 38 SPECIFICATIONS EC Certificate of conformity Importer: Texas Andreas Petersen A/S Hereby certifies that the following: Lawn tractor XC 140-98 Is in compliance with the specifications of the machine directive and subsequent modifications: 2006/42/EC - 2014/30/EU Conforms with the following standards:...
