M AND MII FAMILY RELAYS
3.2.2
MII Family of relays
38
The MII Family of relays (MIF II, MIG II, MIN II, MIW II, and MIB) has a slightly larger cutout
panel than the 3 Series relays, and uses four mounting screws from the front to secure the
relay.

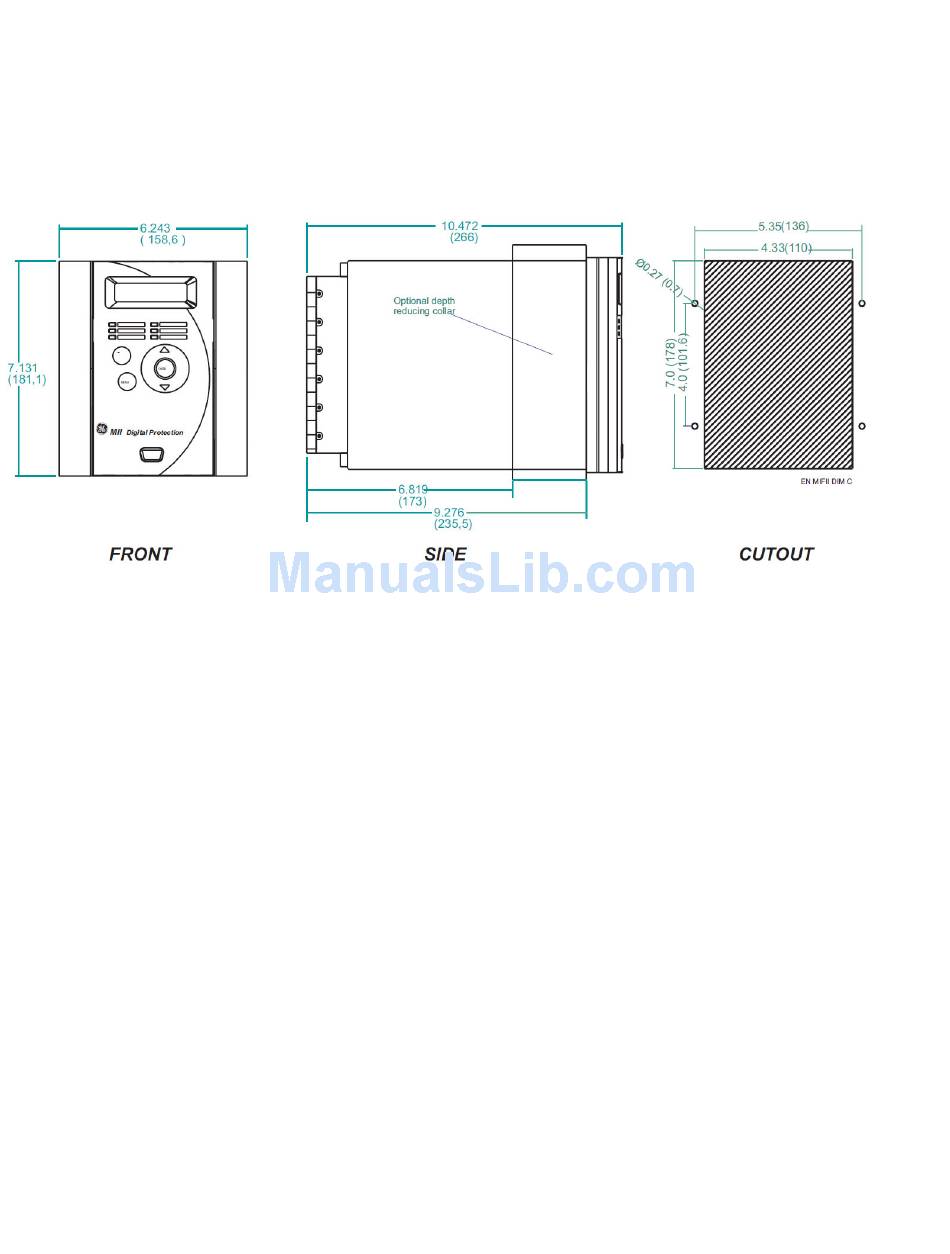

Figure 3-4: MII Family: MIF II, MIG II, MIN II, MIV II, MIW II, MIB
CHAPTER 3: INSTALLING THE 3 SERIES RELAY
3 SERIES RETROFIT – INSTRUCTION MANUAL
