Salutron ComBi D3 User Manual

User manual
User manual
Coating thickness gauge
 
Salu Salu Tron Tron Com Com Bi Bi D3 D3
SaluTron Messtechnik GmbH
Dr.-Gottfried-Cremer-Allee 30/7
D-50226 Frechen
Tel.: +49 2234 9999960
Fax: +49 2234 9999962
www.salutron.de
info@salutron.de
Congratulations on the purchase of our coating
thickness gauge ComBi-D3.
Description

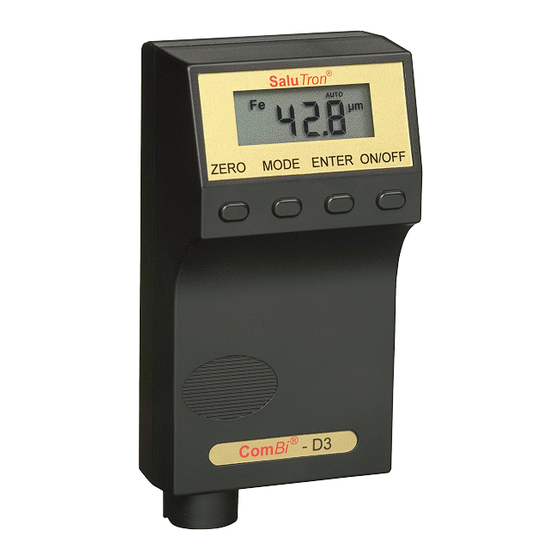

The ComBi-D3 is a simple and cost effective
measuring device. It belongs to a range of non-
destructive coating thickness gauges.
Measuring ability of ComBi-D3:
Fe:
all non-magnetic on steel or
coatings such as
iron
synthetics,
lacquers, enamels,
copper, chromium,
zinc, etc.
NFe:
all isolating on copper,
coatings such as aluminum or brass.
lacquers, This includes
synthetics, anodized coatings
enamels, paper, on aluminum as
glass, rubber etc. well.
It is easy and handy to use and allows the user
to make all necessary adjustments with the aid
of a menu (MODE–button). This allows for
change to be implemented quickly and simply.
The gauge ComBi-D3 can be used for a wide
variety of applications and has to offer a large
measuring range from 0 to 3.5 mm. Modern
electronic and the robust casing guarantee an
extended lifetime for the high precision
instruments.
Battery exchange
The ComBi-D3 gauge is powered by a 9 V
alkaline battery. The battery compartment can
be found in the top back portion of the
instrument. If a battery icon appears in the
display, the battery has to be exchanged.
If a replacement battery is not available
immediately, several measurements can still be
taken until the gauge shuts down completely
(the display shows bAT and a discontinuous
beep tone is audible).
Attention: Exhausted batteries are hazardous
waste. Used batteries not with the domestic
waste decontaminate, but deliver at stated
collective places.
Switching on and off of the device
➢ The gauge can be switched on manually
via pressing of ON/OFF-button or by
directly placing the probe on the
measurement object.
➢ It appears Cd3 (name of device) and then
the last measured value.
➢ The gauge switched off automatically after
40 seconds of non-use or by long pressing
(about 3 seconds) of ON/OFF-button.
Handling and storage
The ComBi-D3 gauge is a high precision
instrument with a wide scope of applications. It
is therefore of great importance that the device
is handled with care to ensure a long life and a
prerequisite for precise and accurate
measurement results. The following guidelines
are to be followed to achieve the above:
➢ Protect the device from dust and dirt.
➢ Do not drop the device to the floor.
➢ Protect the device from moisture,
aggressive vapors and chemicals.
➢ After use please put the device in the
carrying case.
➢ Avoid direct strong sunlight
temperature shocks as these can have a
negative influence on the measurement
result.
➢ Precise measurement results can
achieved only with a clean probe.
Therefore, use regularly a clean, damp
cloth.
➢ Check the probe regularly for soiling such
as paint or iron particles.
➢ If the device is not used for a long time, it is
advisable to remove the battery to avoid
possible damage caused by the leakage of
a battery.
➢ If the device has a failure, contact your
supplier for help.
Taking measurements
➢ Hold the device vertically on the location to
be measured.
➢ Place the probe flat (avoid tipping!).
➢ To get the best results, place the thumb on
the elliptical indicated position with the
other fingers behind the gauge for balance.
➢ A beep is audible and the measured value
appears on the display.
➢ Improper placement, as well as picking up
the device before the
measurement and the zeroing on a non-
metallic surface (substrate) is displayed
with Er0 (error).
➢ If the coating thickness exceeds the
maximum range (3500 µm) or if the device
is placed on the incorrect substrate (wood,
paper, cardboard etc), the display shows InF
(infinite).
➢ The V-groove on the measuring head helps
by measurements on round objects, such
as rods, tubes, shafts, radii etc.
Please do not perform measurements on
magnets and in magnetic fields.
Magnetic fields influence the results by the
Fe- and strong electromagnetic radiation
has the influence
measurements.
Zero calibration
A zeroing of the instrument is necessary after
switching on, by different
processes, inserting of new battery or after
prolonged use.
and
Place the device on the iron- or the aluminum
plate in the carrying case. You can also use a
piece of uncoated ferro (Fe) or non-ferro (NFe)
metal (substrate) used in your process. If the
be
displayed value is out of the basic tolerance,
the instrument has to be zeroed. The following
steps are to be taken to zero the gauge:
➢ Remove the device from the zero plate or
the substrate.
➢ Press the Zero button. The display shows
P0.0 (zero point).
➢ Place the gauge on the zero plate or the
substrate. PIn (infinity) appears followed by
a beep tone.
➢ Lift the device at least 5 cm from the zero
plate. 0.0 appears followed by another
beep.
➢ To check the zeroing place the gauge on
the zero plate or the substrate again. 0.0
should appear on the display followed by
beep. If the result is different repeat the
zeroing procedure.
➢ The device is now ready for accurate
measurements.
Note that it is not necessarily to receive the
same displayed
measurements
end of the
Measurement variations can be caused by
roughness, dirt or bumps.
The menu of Com Bi -D3
The various options from the menu can be
accessed by repeatedly pressing the Mode-
button. Pressing the Enter-key allows to select
the displayed option. Now the Mode-button
change or select the setting. Pressing of Enter
confirms your choice and exits the menu.
rST -
Resetting the average value (mean)
of the measurements
(YES - Yes, no - no)
GAG -
Choice of substrate material
AUT - automatic detection
(recommended) indicated by AUTO
icon in the display
by the NFe
FE - only steel or iron
nFE - non magnetic metals
(aluminum, copper etc.)
CnT -
continuous measurement indicated
by CONT icon in the display
measurement
(On - On, OFF - Off)
UnT -
Choice of measuring unit between
microns / mm and mil
(25.4 - µm/mm,
bEP -
Switching on or off of tons keys
(On - On, OFF - Off)
Sn -
Displays the serial number of the
device
result by repeated
at the same location.
1.
00 - mil)
