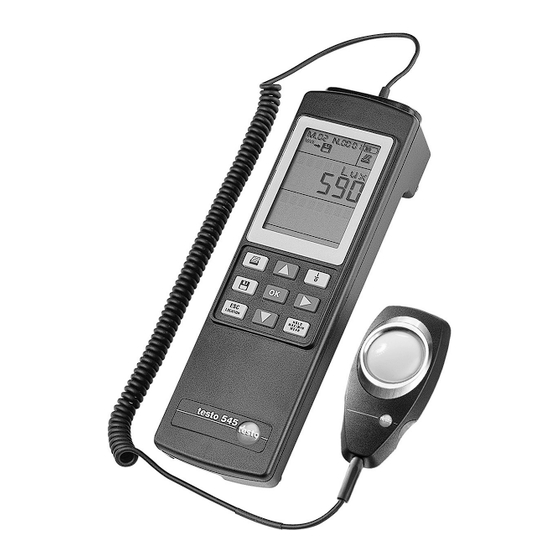

Luminous intensity measuring instrument
Hide thumbs Also See for 545:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
testo 545
Luminous intensity measuring instrument
Instruction manual
en
Testo-Direct
1.888.610.766
www.
.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 545 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TESTO 545

Summary of Contents for TESTO 545

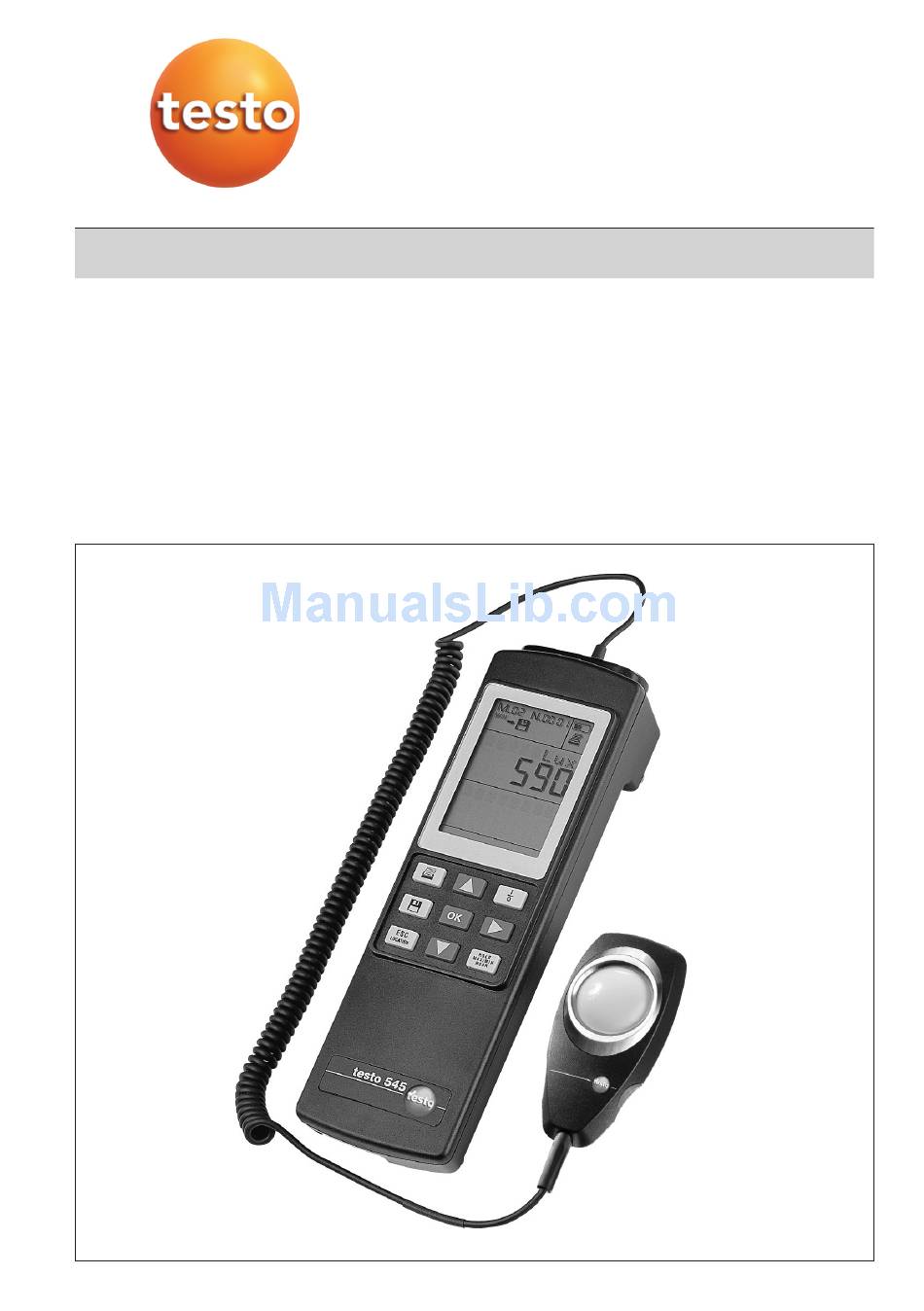

  • Page 1 545 Luminous intensity measuring instrument Instruction manual Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 2: Table Of Contents

    Clearing memory contents / Sample printouts ........18 According to the conformity certificate, the instruments fulfill 2004/08/EEC guidelines. © 1999 Copyright Testo GmbH & Co. The software and software structure included in the product testo 545 are protected by copyright laws worldwide. Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www.
  • Page 3 Ordering data ..............23 Testo-Direct nfo@Testo-Direct.com...

  • Page 4: Initial Operation

    9V block battery is included in delivery. Open the battery compartment at the back of the instrument. Put in block battery. Observe polarisation Close battery compartment. Refer to “Power supply” Chapter for more information on alternative power supply, charge, battery quality. Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 5: First Measurement

    Auto Off: Units: Some things can only be set via PC software (See Ordering data): Location name (8 characters) Log heading (24 characters), e.g. your company name - is printed when the readings are printed. Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 6: Instrument Description

    Instrument description Keyboard/Connection assignment Keypad: On/Off Prints Confirms menu setting/ executes function Saves Return to current measurement/ location selection Arrow buttons move the cursor Hold Max Min Mean Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 7: Display

    Shows capacity of battery and rechargeable battery. If the inner segment no longer appears (symbol flashes), the battery has to be changed or the rechargeable battery has to be recharged. The instrument switches itself off automatically after 1 minute. Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www.

  • Page 8: Overview Of Controls

    Switching from resolution of 1 Lux (meas. range 32,000 Lux) 10 Lux (meas. range 100,000 Lux) * Switching from resolution of 0.1 fc (meas. range 3200 fc) 1 fc (meas. range 10.000 fc) * Multiply displayed value by 10. Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...
  • Page 9 • Select no. of meas. cycles • Set measurement rate Read memory contents on display with printing option CLEAR Clear memory Note: Everything in the memory is Note deleted Flashing display is activated and is confirmed by pressing Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 10: Current Measurement

    Save readings. Manual or automatic saving is determined by the Battery / rech. save setting (Chapter 5). battery power 7. 5 Print readings. Location Location Museum M.05 N.0017 Line 1 Museum Line 2 Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 11: Measurement Functions

    M.05 N.0017 the measurement began Save maximum reading Print maximum Museum reading Hold Max/Min Mean Minimum readings since the M.05 N.0017 measurement began Save reading Print reading Museum Hold Max/Min Mean See multi-point/timed mean calculation Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 12: Multi-Point Mean Calculation

    M M E E A A N N N N E E W W Number of values logged • Save mean. Print mean. Return to current measurement. E S C L o c a t i o n Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...
  • Page 13 M M E E A A N N N N E E W W calculation is 00: 0 5 possible Save mean. Print mean. Return to current measurement. E S C L o c a t i o n Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 14: Location Selection

    Select Confirm selection and return to measurement. Resolution Meas. range Resolution Meas. range 0.1 fc 3200 fc 1 Lux 32,000 Lux 1 fc 10,000 fc 10 Lux 100,000 Lux * Multiply displayed value by 10. Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 15: Memory Settings

    C C L L E E A A R R O O U U T T CLEAR M M A A N N AUTO A A U U T T O O O U T MEMORY MEMORY MEMORY MEMORY Location Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 16: Manual / Automatic Saving

    L L o o c c a a t t i i o o n n M.06 N.0017 Starts automatic saving again. An additional measurement series is A A U U T T O O added. Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 17: Reading Out Or Printing Memory

    M.05 5 N.0017 button enables you to go back one step. E E S S C C L L o o c c a a t t i i o o n n Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 18: Clearing Memory Contents/Sample Printouts

    3 1 . 0 8 . 1 9 9 8 1 1 : 2 0 : 0 5 7 1 0 6 9 5 7 2 5 L u x 6 7 5 6 3 8 I n f o : I n f o : Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 19: Instrument Configuration

    BAT: Battery operation with 9 V block battery, Alkali manganese IEC 6LR61. AKKU: Rechargeable battery operation with Testo B B A A T T AKKU rechargeable battery (Part no. 0515.0025), Type: Ni-MH IEC 6F22.

  • Page 20: Setting Date/Time

    Factory resets all of the settings in the instrument configuration to the factory settings. - “AUTO OFF” is set at “ON” - “Lux” is activated confirms the selection and switches to the display of the cur- rent measurement. Current measurement Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 21: Error Messages

    The memory is full Clear memory Measuring range has not The measured values are been reached outside the allowed measuring range. Switch resolution. Connection to the probe Please contact a Testo has been interrupted. service point. Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 22: Technical Data

    4 stages Operating temperature: 0 to +50 °C Storage temperature: -20 to +70 °C Dimensions: 220 x 68 x 50 (instrument) Weight: 500 g (incl. packaging) Warranty: Instrument: 2 years Probes: 12 months Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...

  • Page 23: Ordering Data

    0554.0830 incl. data base, analysis and graphics function, data analysis, trend curve Transport case 0516.0445 For safe storage of measuring instrument, TopSafe, probe and Testo log printer RS232 cable 0409.0178 Connects measuring instrument PC for data transmission ISO calibration certificate 0520.0010...
  • Page 24 0973 5450 en 03 V01.70 Testo-Direct nfo@Testo-Direct.com 1.888.610.766 www. .com...
