WIRELESS 2D BARCODE SCANNER
Quick Start Guide

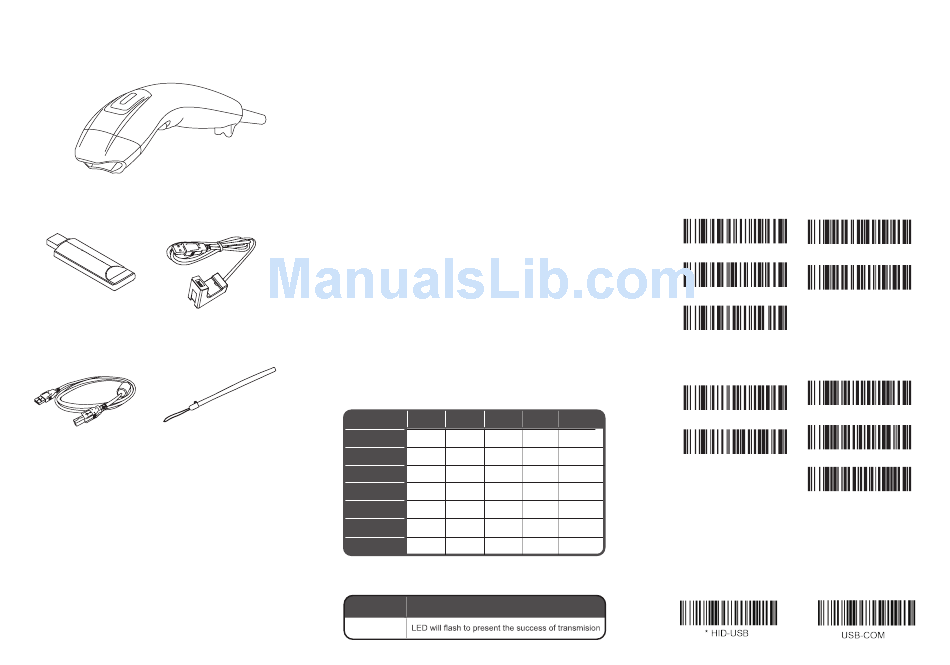

Before Getting Started
Wireless Scanner
USB Receiver
USB docking station
USB recharge cable
About your wireless scanner
It is one on one wireless data communication protocol.
The scanner is already paired with the USB receiver. Just
easily plug USB receiver and start the operation. The scanner
on a real time basis, if the scanner is connected, the barcode is
decoded and transmitted to the remote host without any delay.
If the scanner is not connected or out of range, the data is lost
(status: 2 beeps/4 beeps).
Note:
New batteries should be fully charged before their fi rst use
Wake up your wireless scanner
Press and release the trigger on your scanner to activate it.
Your scanner is ready to work when orange LED comes on .
Connect USB receiver to a host computer
The device can be quickly recognized by host computer
without any software/driver installation. Within less than
10 seconds the receiver will fl ash red to inform the
is completed.
Recharging the battery
The Red LED comes on when the battery level is low, please
recharge the scanner immediately. When the scanner is
charging, the LED is green (solid). A full recharge (from
completely drained battery) takes approximately 4 hours.
When the scanner is fully charged, the green LED will go of
How to pair (repair) you scanner and
receiver?
Step 1: Simply plug the USB receiver to the scanner
Step 2: Trigger the button on the scanner.
Step 3: Devices are successful paired with 1 beep from scanner
and 1 blink from the USB receiver.
Scanner LED indicator
Status / indicator
Good Scan
Strap
Transmission
failure
Trasmission failure
(in memory mode)
Low battery
Recharge
Operation mode
Sleeping
USB receiver LED indicator
Color
Red
Initialization
f.
Beeper
Blue LED Green LED Red LED Orange LED
1 beep
1 blink
4 beeps
4 blink
2 beeps
2 blink
On
On
On
None
None
None
None
None
Indication
Default setting of wireless scanner
•Buzzer : High
•Vibrator: Disable
•Memory mode: Disable
•Power saving (sleep mode): 10min
The default values can be modified by scanning the following
options.
Note: Please scan the following barcode directly with your USB
receiver on. No need to scan start and end configuration
barcodes.
<Buzzer>
<Vibration motor>
*High
Enable
Low
*Disable
Off
<Memory mode>
<Sleep mode>
*10min
*Disable
30min
Enable
always on
(Dongle interface selection)
Scan the interferface you wish to use and replug the USB
reoeiver to active the new setting.
