- Page 1 User Manual V2.4 Omniksol –WIFIKIT User Manual Omnik New Energy Co., Ltd.

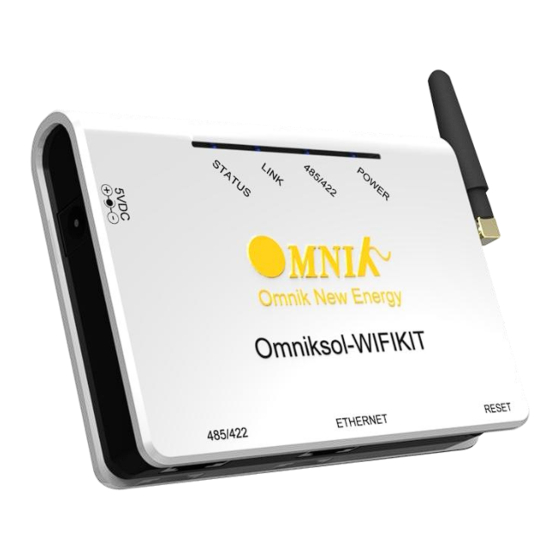

- Page 2 User Manual V2.4 Overview of WIFIKIT Function Omniksol-WIFIKIT is developed by Omnik as an external communication monitoring device, which integrates WiFi device for users and provides a wireless monitor function. By connecting with inverters through RS485 interface, the Kit can receive information from inverters and realize cascade of inverters.
-
Page 3: Table Of Contents
User Manual V2.4 Catalog RS485 Card Install SOP ............................... 2 Disassembly ................................. 2 Installation ................................3 Omniksol –WIFIKIT User Manual ..........................5 Unpack ................................. 5 The installation of data collector ........................... 5 2.2.1 Wall-mounted installation ..........................5 2.2.2 Horizontal data collector installation ........................5 Connection between data collector and inverter .................... -
Page 4: Rs485 Card Install Sop
User Manual V2.4 1 RS485 Card Install SOP Disassembly Picture 1.1.1 Unscrew the four screws on the interface panel with the screwdriver as shown in Picture 1.1.1 and keep the screws aside. Picture 1.1.2... -
Page 5: Installation
User Manual V2.4 Picture 1.1.3 Unscrew the two-holed water-proofing connector from the interface panel as shown in Picture 1.1.2, 1.1.3. Installation Pick out the net cable and the water-proofing connector from the package and follow the Picture： A. Put the net cable in from the gap B. - Page 6 User Manual V2.4 C. Insert the RS485 card lightly from the position as follow picture Picture 1.2.2 D. Finish the installation, as Picture 1.2.3： Picture 1.2.3...
-
Page 7: Omniksol -Wifikit User Manual
User Manual V2.4 2 mniksol –WIFIKIT User Manual Unpack After unpacking the box, please check the parts according to the below list. Contact the manufacturer immediately, should you find any damage, missing or wrong model of the device or any parts. Serial Name Quantity... -
Page 8: Connection Between Data Collector And Inverter
User Manual V2.4 conditions of damp, dusty or with corrosive steam. Direct sunlight is also avoided, as well as shock and pressure defense. In addition, as metal components have effect on the wireless signals, the antenna of PV data collector (in all direction) should be away from metal components at least 10cm. Note2: When screw or adjusting the antenna position, please note only the metal part can be screwed, plastic part cannot be screwed, or the antenna will be damaged. -
Page 9: Steps Of Connection
User Manual V2.4 Line sequence T568B 1. orange with white 2. orange 3. green with white 4. blue RJ45 crystal head 5. blue white white 6. green 7. brown with white 8. brown Picture 2.3.2 Pin NO. RS485 RS422 2.3.2 Steps of connection Both ends of the connecting wire are RJ45 network cable connector，all the line sequence are T568B. -
Page 10: Wifi Settings
User Manual V2.4 2. Insert the network cable into anyone RJ45 port on anyone inverter 3. Insert the other network cable into anyone RJ45 port on second inverter 4. Make the needed monitoring inverters in series in the same way 5. - Page 11 User Manual V2.4 “ Choose My network ” place click right hand button Left click...
- Page 12 User Manual V2.4 Choose WiFi Left Double Click Connect successfully Enter 10.10.100.254 in your browser...
- Page 13 User Manual V2.4 Fill in the user name “admin”and password”admin” Left button “Search” Choose your regional WiFi and click “Apply” If your WiFi has a password, click confirm...
-
Page 14: Wired Network
User Manual V2.4 Do not fill in Fill in the password of your wifi Whether display your password “Disable”or“Enable” ， “Enable”suggested Left button“Apply” Picture 2.4.1 Note: this default setting is router DHCP is on, if you can not connect to the network, please check if you open the DHCP function. -
Page 15: Debug
User Manual V2.4 Picture 2.4.2 Debug LED indicating lamp Introductions Picture 2.5.1... - Page 16 User Manual V2.4 Name of LED Status Description of status Light The power is normal POWER Dark The power is abnormal Light The connection between collector and inverter is normal 485\422 Flashing Data is transferring between collector and inverter Dark The connection between collector and inverter is abnormal STATUS Dark LINK Flashing...
-
Page 17: Register On Monitoring Website
User Manual V2.4 inverter and ensure it’s working condition is normal Light Flashing In the AP Mode Set network settings Confirm if the antenna is loose or fall off. If so, please screw it. Check if the WIFI wanted Flashin Collector is not is covered. -
Page 18: Click Register Button To Go To Registering Interface For New Account
Click and enter the configure interface Picture 2.6.2 Remarks: please read the <Omnik service agreement >carefully, the enclosure is the cost list for all the countries, please choose your operators Owner means the final user “*” you must fill it... - Page 19 User Manual V2.4 “Owner” Account Click and choose the aim pic Click”OK”save the pic Fill in WiFi card’s S/N code, see pic 2.6.4 Click the map, choose the installation site Select, and choose it to be the share mode, other user can see Finish the register Picture 2.6.3...
-
Page 20: Login The Pv Monitoring System To Manage The Power Station
User Manual V2.4 Picture 2.6.4 Login the PV monitoring system to manage the power station After the successful register and account activation，open the login interface as below picture 2.7.1, input the correct email and code and enter the PV monitoring system, then you can monitor and manage the power station. - Page 21 User Manual V2.4 “Owner” User Interface Power station list Picture 2.7.2 Choose your station and enter Edit or delete the case Picture 2.7.3 List of power stations Enter the configure “company account” Back to 2.7.2 Not yet open Enter the sharing case interface interface Add one case under your account，...
- Page 22 User Manual V2.4 Change case Case info search Real-time power and generated energy switchover Print current figure Power station info Energy saving Picture 2.7.5 Main interface of power station...
- Page 23 User Manual V2.4 Internal temperature Latest data collecting time Picture 2.7.6 Real Time Interface Choose the aim Parameter inverter options Picture 2.7.7 History Interface...
- Page 24 User Manual V2.4 Click , turn to picture 2.7.7 Picture 2.7.8 Alert Interfaces The interface same as picture 2.7.3 Picture 2.7.9 System Setting Interface...
-
Page 25: Iphone & Ipad Application
Picture 2.7.10 System Setting Interface IPhone & iPad application After registration of the power station, you can input the key words: Omnik， solar, inverter, PV, energy ,plant, monitor at the app store, then you can download the Omnik solar (iPhone) and Omnik Solar HD(iPad) at app store. - Page 26 User Manual V2.4 Picture 2.8.1 1. Log in interface 2. Power station list interface 3. Main interface 4. Daytime curve interface...
-
Page 27: Contact
Device model Data collector serial number The number of connected inverter Add: Xinghu Road No.218 bioBAY Park C2, Suzhou China Zip code：215213 Fax: +86 512 6295 6682 Tel: +86 512 6295 6676 Mail: Sales@omnik-solar.com...
